• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：71*51*71cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 71*51*71cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

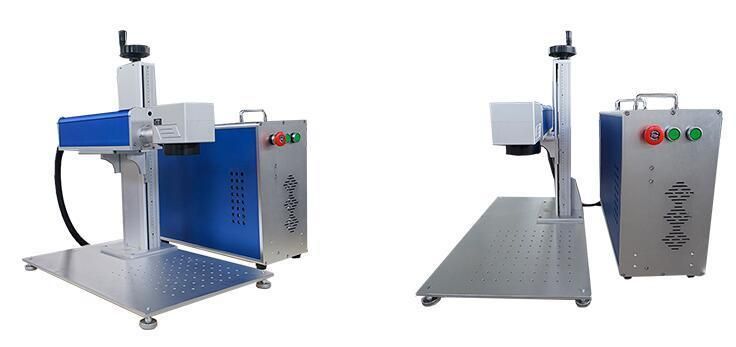

mini optical 20w fiber laser marking machine price for instruments

Production :



Advantage  :

1.High rate of electricity transportation.

2.Function is stable .

3.It can work consecutively and long time continuously.

4.Life time of laser marking is very long, 1000,00 hours.

5.Galvanometer and field lens

6.Size 100*100mm(150*150mm/200*200mm/300*300mm)

7.Marking Speed 8000mm/s

8.Electric up-down platform

Technical Parameter :


Laser Power	20w /30w /50w
Laser Wavelength	1064nm
Q-frequency	20KHz~80KHz
Divergence	0.3mard
Marking Range	10*10mm to 300*300mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Engraving Line Speed	≤7000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Use of the Environment	Clean and Dust Free or Dust less
Working Condition:Humidity	5%-75%,Free of Condensed Water
Laser Module Life	>100000 hours

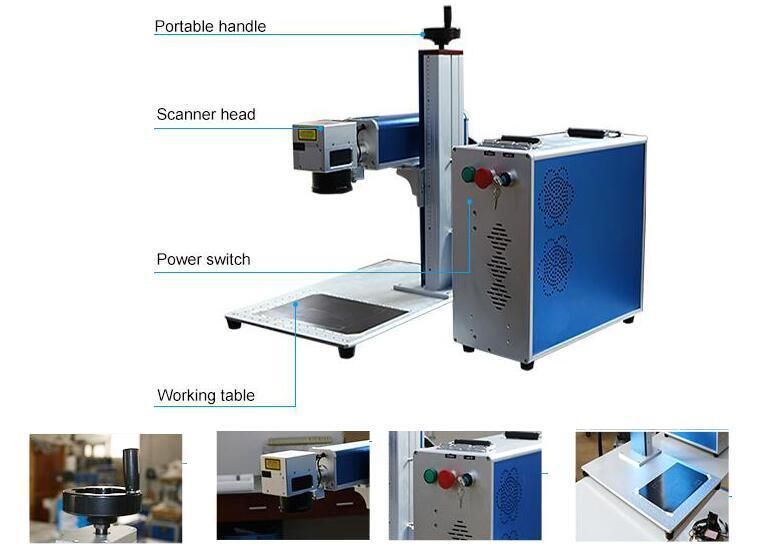

The Details Images :

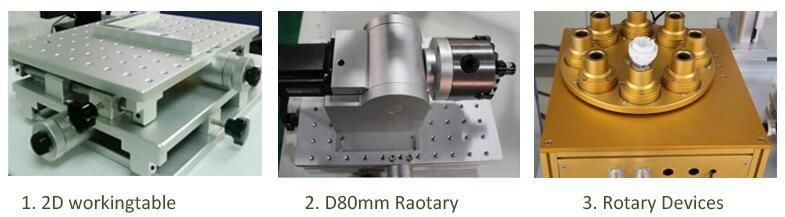

Optional  laser parts for laser machine :

The handle on 2D platform can adjust position right-left, front-back.

>>We have two kinds of rotary: standard rotary and rotary for rings.

    Give us the diameter of your material, we will recommend you a suitable rotary.

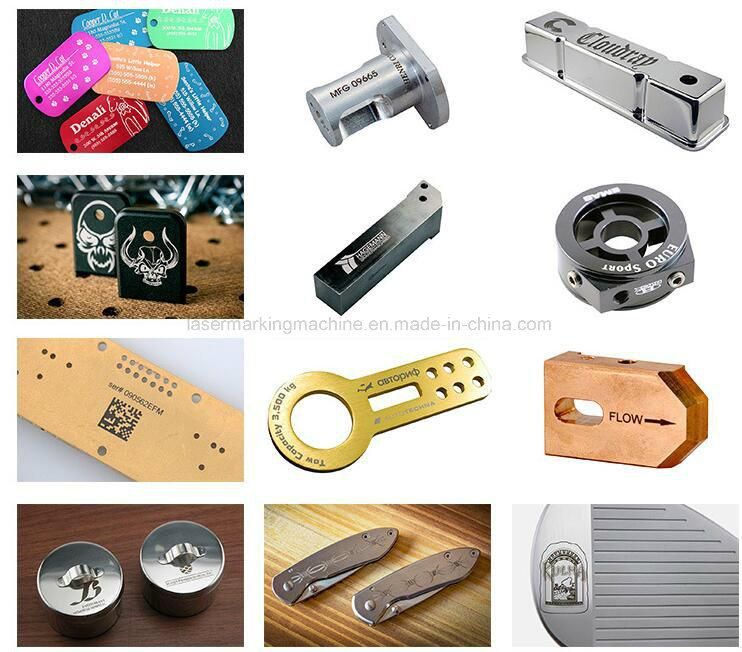

Sample Show :



Packaing & Shipping :

1.Packing details: Standard plywood case

2.Packing size: 900*800*1150mm

3.Packing weight :100KG(NW) 160KG(GW)

4.Delivery time: 15 working days after payment



Certification  :


Services :

-Professional R&D team focuses on customer user experience and marking solutions,customization is available.

-Online training until the customer learns how to operation .

-Provide free Foot switch and safety goggles .

-3 years warranty of the laser source ,1 year warranty for  other parts of the machine.

Everything is ready, after receiving the machine, Just need the simple installation, plug in the power supply can be used, the operation is very

simple.After you got the machine , You will enjoy lifelong service

About US  :

1,How to choose a machine?

   Please let us know your request,then we can recommend the suitable machine for you .Such as:

    1.What kind of material will be cut or engraved? (For choosing suitable laser type.)

    2.What the thickness of your material?               (For choosing suitable laser power.)

    3.What is size for the process material?             (For choosing suitable working size.)

2,How to use it ?

     We will send you the instruction manual  in English version  and CD video with machine.

     If you still have some doubts, we can talk by telephone or skype. Our engineer also can face to face  to install or adjust machine if necessary.

3,If some problems happened  during warranty period ?

     We will supply free parts for this machine during the warranty period if machine have any problems without man-made reasons,

We also supply free after service forever.

4,How long is the delivery time?

     For standard machines, it would be 7-10 days;

For non-standard machines and customized machines according to client s specific requirements,it would be 15 to 30 days.

     It is our duty to help you offer some documents to client for customs clearance,like invoice,packing list,B/L,and other certificates,etc.

5, What is the price?

    As you know, the price is a little different according to the configuration and models.

If you want to know the details, please send message right now.
