• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：71*51*71cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 71*51*71cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

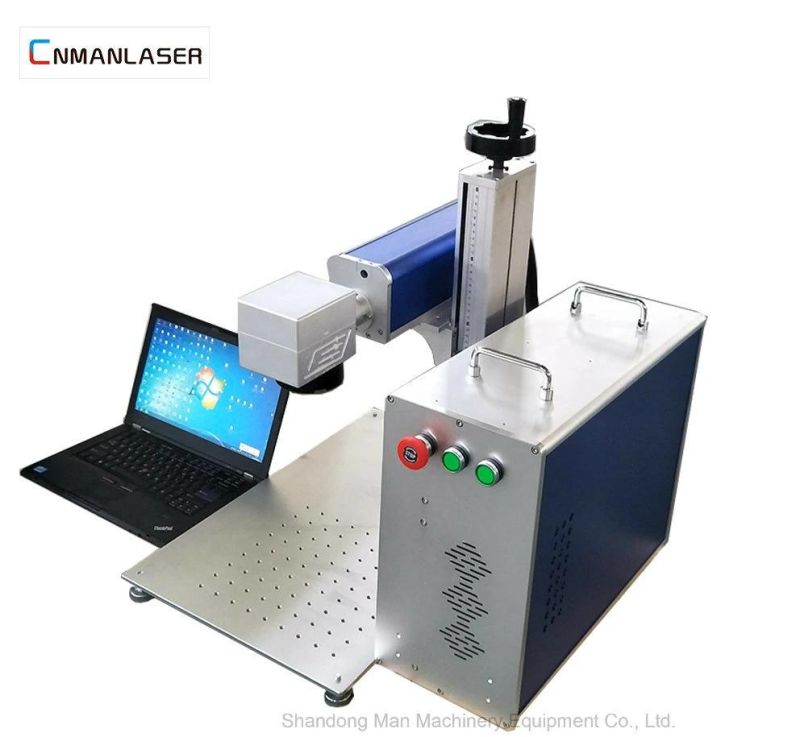

20w Fiber Laser Marking Machine for Electronic components sanitary wares

Production :


Technical Parameter :


Laser Power	20w /30w /50w
Laser Wavelength	1064nm
Q-frequency	20KHz~80KHz
Divergence	0.3mard
Marking Range	10*10mm to 300*300mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Engraving Line Speed	≤7000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Use of the Environment	Clean and Dust Free or Dust less
Working Condition:Humidity	5%-75%,Free of Condensed Water
Laser Module Life	>100000 hours

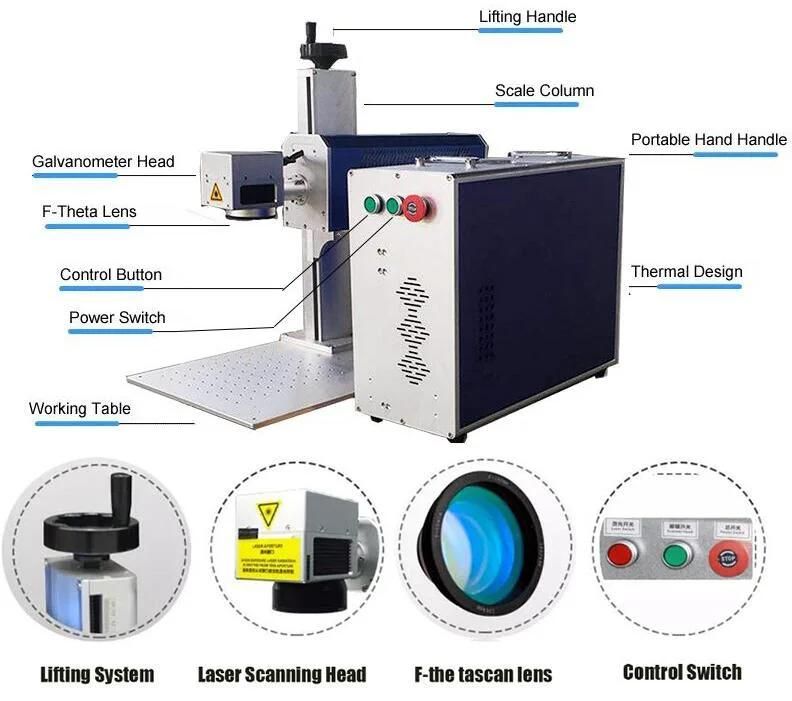

The Details Images :

Long Lifetime:can reach 100,000 hours.

Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.

It is small design and the complete weight is 22kg.

High Precision: Re-position precision is 0.002mm

High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s

Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency.

You can input and output by computer according to edit in the both of the specific marking software

nd the graphic software such as AutoCAD, CorelDRAW or Photoshop.

High Reliability: MTBF>100,000 hours

Energy Saving: The efficiency of optic-electrical converting is up to 70%

Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.

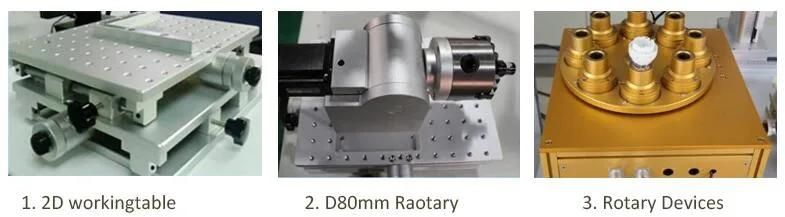

Optional  laser parts for laser machine :

The handle on 2D platform can adjust position right-left, front-back.

>>We have two kinds of rotary: standard rotary and rotary for rings.

    Give us the diameter of your material, we will recommend you a suitable rotary.

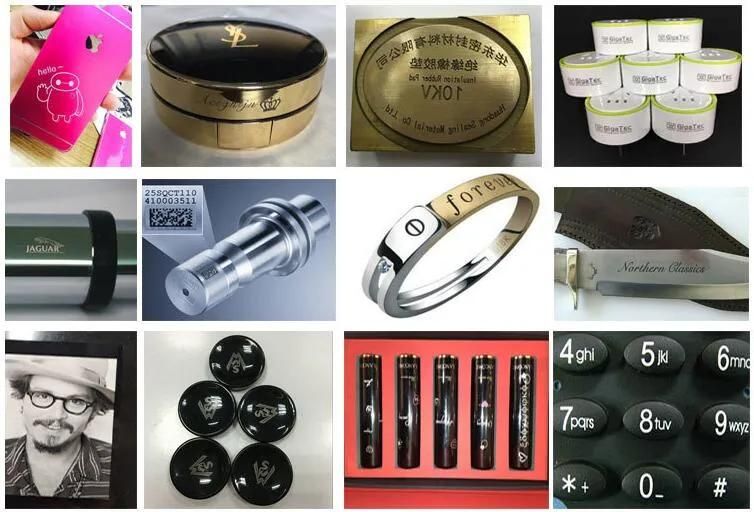

Sample Show :



Packaing & Shipping :

1.Packing details: Standard plywood case

2.Packing size: 710*510*710mm

3.Packing weight :45KG(NW) 50KG(GW)

4.Delivery time: 15 working days after payment


Services :

-Professional R&D team focuses on customer user experience and marking solutions,customization is available.

-Online training until the customer learns how to operation .

-Provide free Foot switch and safety goggles .

-3 years warranty of the laser source ,1 year warranty for  other parts of the machine.

Everything is ready, after receiving the machine, Just need the simple installation, plug in the power supply can be used, the operation is very

simple.After you got the machine , You will enjoy lifelong service

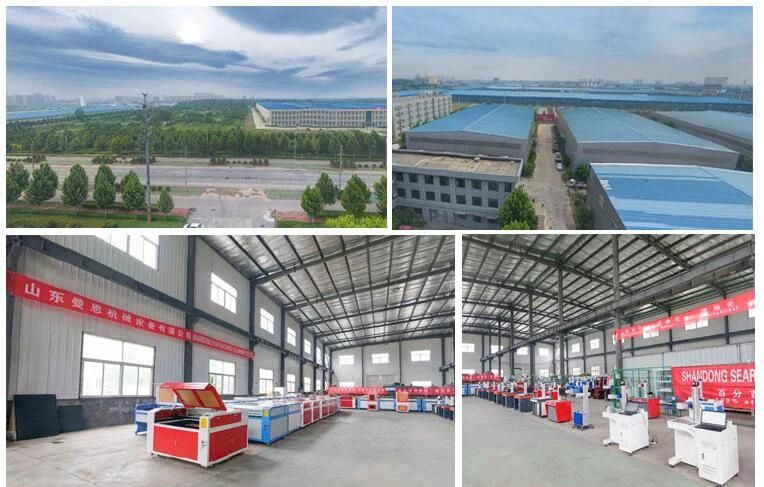

About US  :
         SHANONG   MAN  MACHINERY EQUIPMENT CO.LTD

Shandong.Man machinery Equipment Co.,Ltd. is a high-tech enterprise , we are specializing in producing,developing

and selling laser marking machine,laser engraving machine,laser cutting machine,etc.

It is Chinese industrial laser processing equipment pioneer ,domestic well-known marking equipment manufacturer.

And,with rich experiences.

we also have obtained huge success in international market ,the mainly foreign markets are United States, Germany, Spain,

Russia, Singapore, Indonesia...more than 30 countries and regions .

Till now, a lot of customers all over the world have visited us.
