• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：65*60*152 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 65*60*152 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

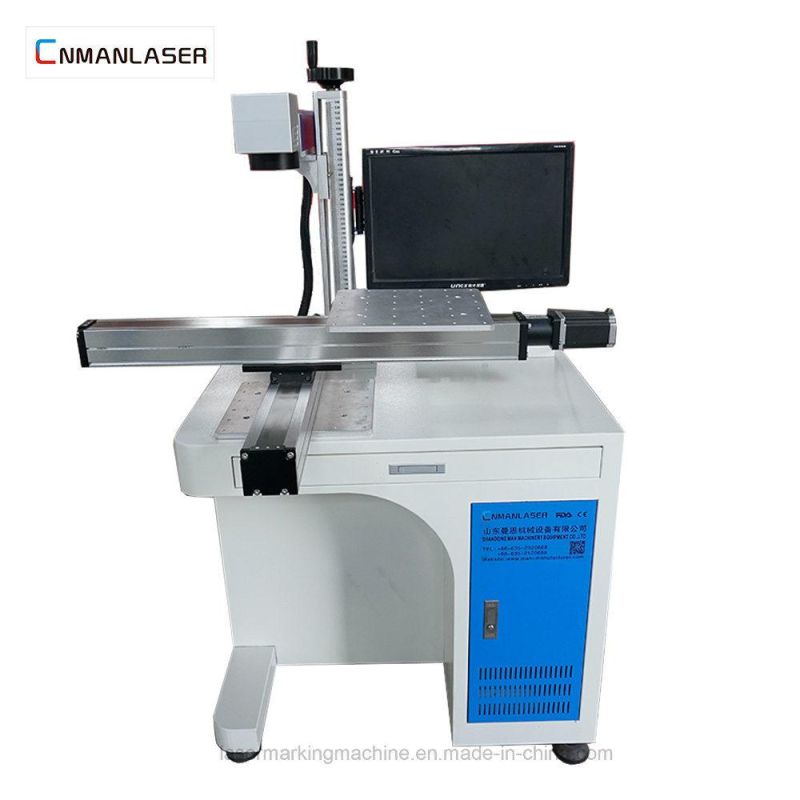

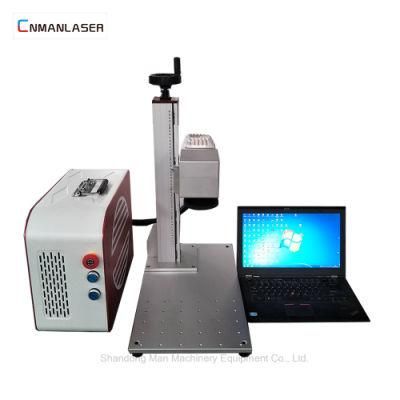

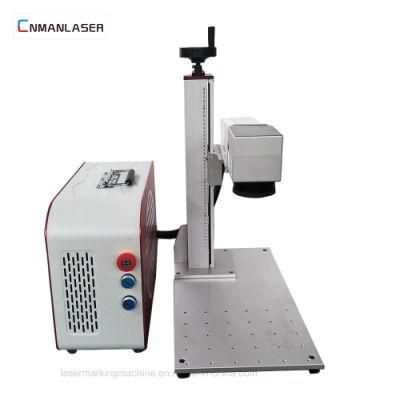

20w laser marking machine for metal pipes glass packaging bottles

Production :


Advantage  :

1.High electro-optical conversion efficiency, small size, good beam quality, stable performance.

2.Especially suitable for precision, fine marking.

3.Low cost.

4.Maintenance free operation.

5.Long service life.

6.Processing speed.

Technical Parameter :


Model name	MAN-F20/MAN-F30
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Machine color	blue grey ( red white,yellow black etc. for option)
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3  year
Optional parts	Rotary device
Instructions	Video instructions&instructions book

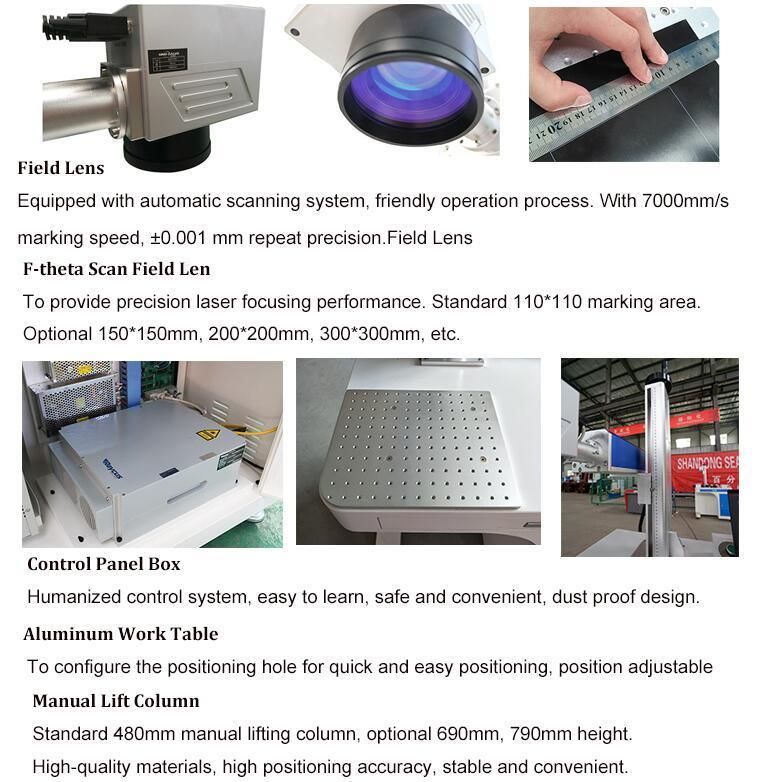

The Details Images :



Software function :

1.Can identify all kinds of BMP, JPG, DXF, PLT, AI and other formats.

2.Automatically generate a variety of serial number, production date, bar code, two-dimensional code, jump numbers.

3.Variable text processing flexible, real-time change text processing, can be directly read dynamically.

4.Real time to read text files and marking files.

5.Through the serial port / network port directly read text data.

6.Multi language support function open, can support the languages all over the world easily.

7.Automatic counting function

8.Support line marking

9.Support multi station marking

10.Support a variety of rotary marking

11.Support the automatic segmentation of large area marking

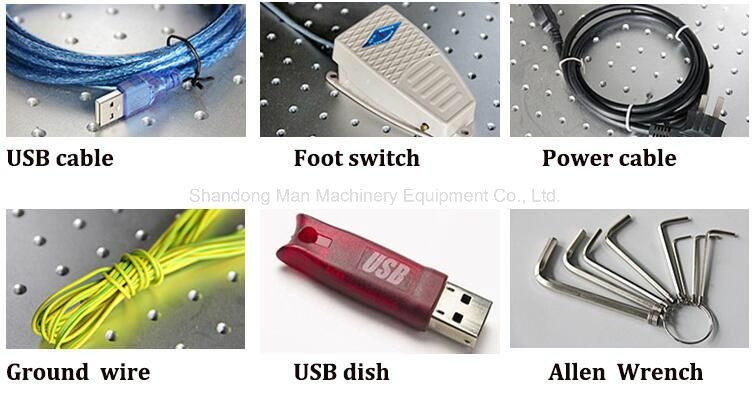

Standard laser parts for laser machine :

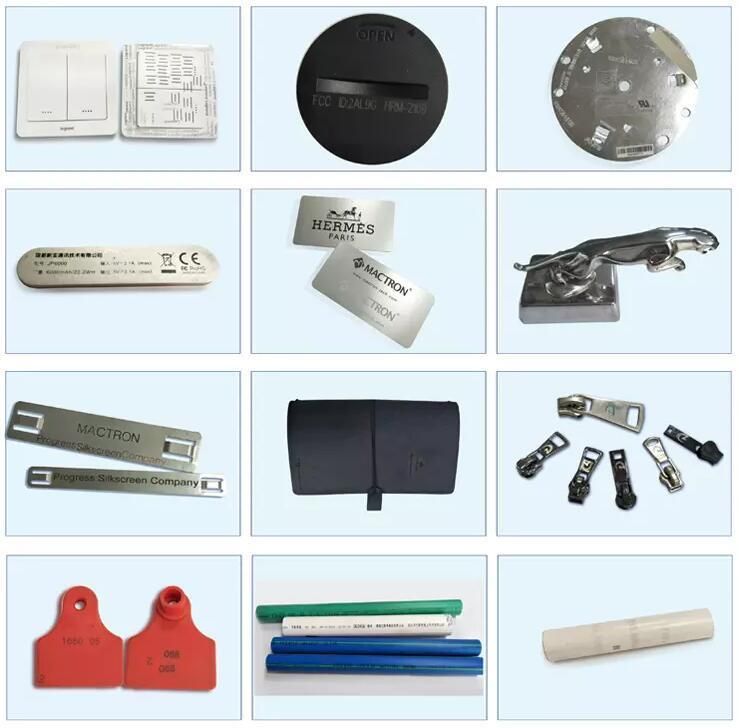

Sample Show :



Packaing & Shipping :

1. We can ship. air or land to your city, it is according to your location, and machine packing size. And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to yout near port, different port the time is different.


Services :

1. Guarantee for 36 months exluding comsumable parts .Extra fee is paid if out of date.

Any damage to the machine caused by improper use will be charged.

2.when receiving the your money, we will prepare machine for you,it will spend 2-3days,to get the shipping pictures for you.

3.24-hour technical support Internet or by Telephone, free instructions and Problem solving.

4.Free installation and fully test before sending and free training for operators .

FAQ  :

Q1. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU, DDP.

Q2. Can you produce according to the samples?

A: Yes, we can produce by your samples.

Q3. How about your delivery time?

A: Generally, it will take about 5 days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.

Q4: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
