• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：65*60*152 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 65*60*152 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

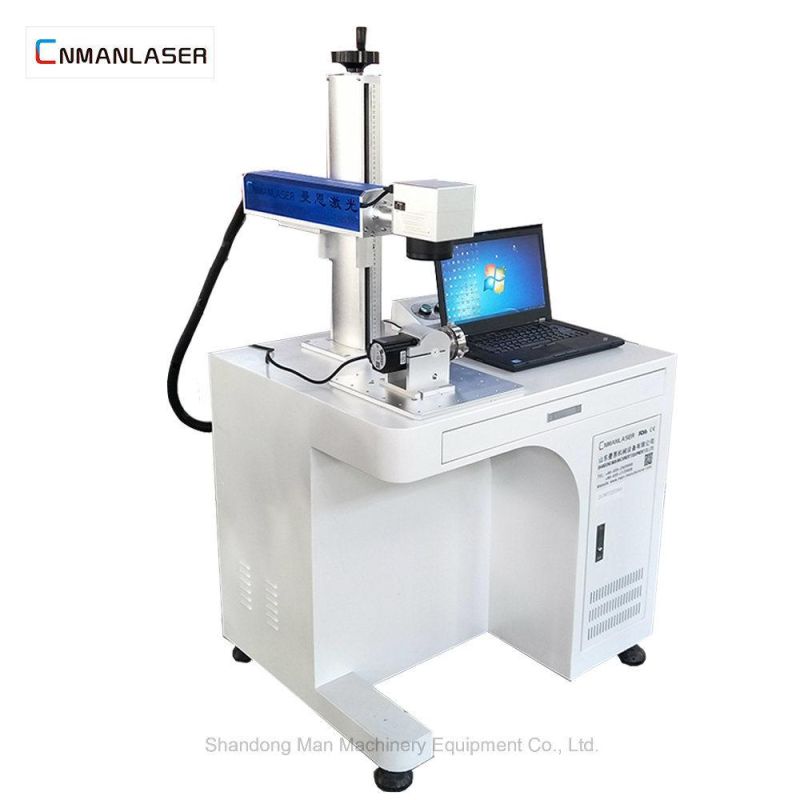

Desktop CNC Laser Engraving Marking Machine for brass hard plastic


Production :



Application :

1. Suitable for all kinds of metals, industrial plastic, electroplates, metal-coated materials, rubbers, ceramic, and so on.

2. Widely used in fields like mobile button, plastic transparent button; electronic arts, IC, tools, communication products; bathing products, tool

accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.

Technical Parameter :


Laser power	20w(optional)
Working area	110*110mm,220*220mm,300*300mm Can be customized
Laser Wavelength	1064μm
Response time	0.5ms
Frequency of pulse	20KHz
Max marking depth	≤0.1mm
Marking speed	≤8000mm/S
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.01mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.3mm*0.3mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation system	Microsoft Windows XP or Windows 2000
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A
Cooling method	Air cooling (100w: Water Cooling)
Instructions	Video instructions&instructions book

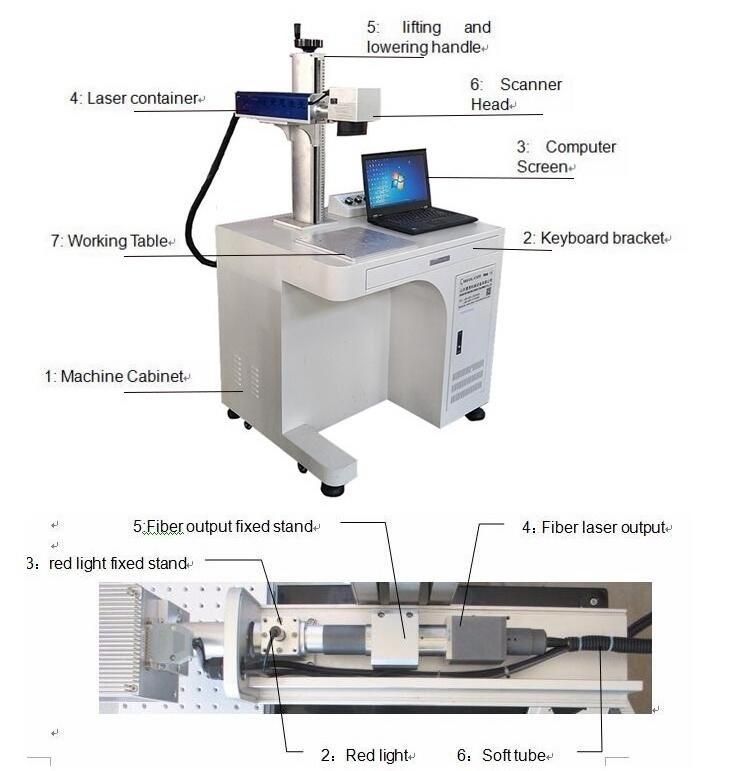

The Details Images :


Raycus or IPG laser source or other brand

Using the most advanced laser source in China,the life time can up 100000hours. The laser source guarantee are 2years.

German importing scanner head

Using computer graphics software in the handing of graphics,drawing with high efficiency,no distrotion...ect,

greatly improve the quatlity of a laser mark and speed.

Singapore importing F-theta lens

Improve the ability of the edge beam incident to the detector makes the pro be on the surface of the photosensitive non-iniform illumination uniformity.

Control panel

Humanized control system,the new USB ,dustproof plug is set,the control system easy to learn,can be used offline

Multifunctional working platform

High precision and practical multi-function workbench, mesa have multiple flexible screw holes, convenient custom installation fixture.

Focusing up and down

Rocker arm can lift up and down the 300mm,items can be placed 300mm high.Very good control the height of the machine,control and adjust the light path.

Machine Internal Wiring
Internal wiring of the machines adopt double insulated wire,prevent the machine from conductive.

Industrial Control Computer

Specially designed for industrial field,Enhanced ability to resist electromagnetic interference.Power supply

and the key board with electronic lock switch, can prevent illegal, and illegal keyboard input.

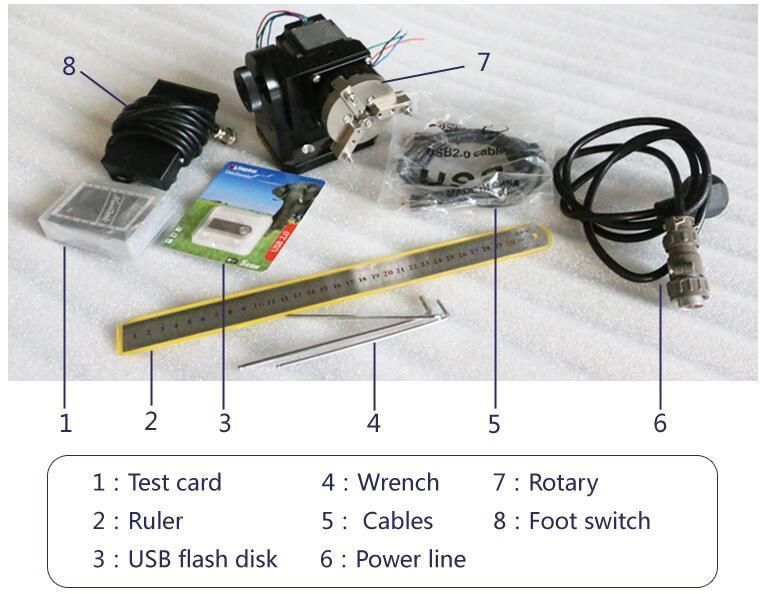

Standard laser parts for laser machine :

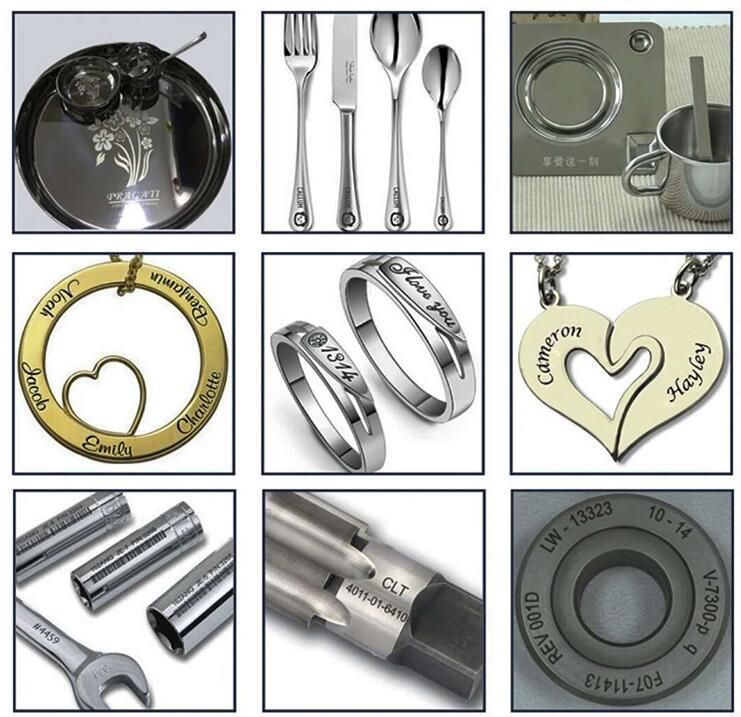

Sample Show :



Packaing & Shipping :

1. We can ship. air or land to your city, it is according to your location, and machine packing size. And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to yout near port, different port the time is different.



Services :

Pre-Sales Service
* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ  :

Q: Are you a factory or a trading company?

A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: How long will it take to make the delivery?

A: Generally, in 7~10 days after full payment confirmed.

Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.

Q: How can I pay my order?

A: We accept T/T, Western Union, Alibaba Trade Assurance to pay.

Q: Do you have a CE certificate?

A: For every model of machine, it has a CE FDA  SGS certificate
