• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：65*60*152 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 65*60*152 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

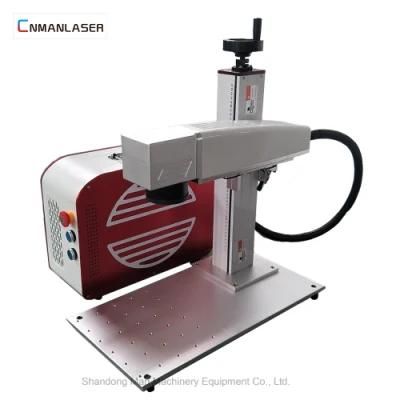

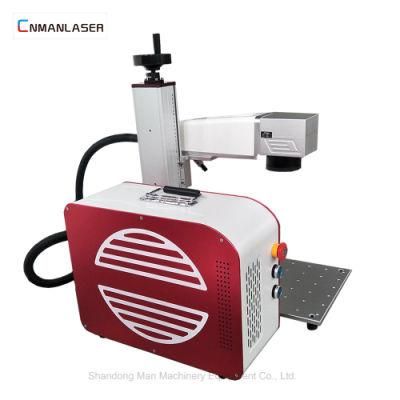

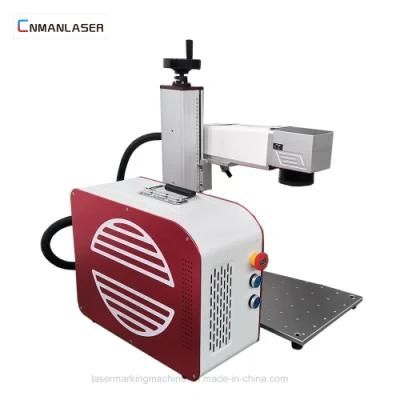

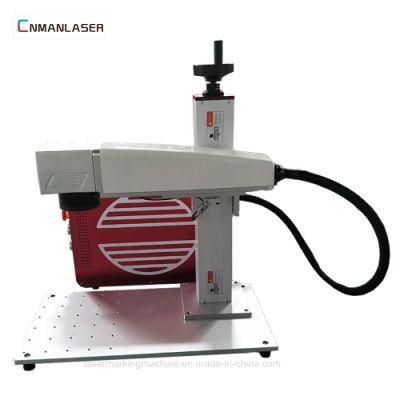

electronic elements laser marking machine price with Lift shaft 600mm

Production :



1.Lift shaft 600mm travel to meet more product requirements

2.The display screen can be configured according to the customer's requirements

3.Professional custom high-speed digital mirror and field mirror, automatic focus, simple operation

4.fiber laser marking machine for sale is maintenance free and has a service life of 7-8 years

5.Industrial computer, continuous work does not crash

6.Full air cooling system, high photoelectric conversion rate, low power consumption, energy saving and environmental protection

Technical Parameter :


Laser power	20w(optional)
Working area	110*110mm,220*220mm,300*300mm Can be customized
Laser Wavelength	1064μm
Response time	0.5ms
Frequency of pulse	20KHz
Max marking depth	≤0.1mm
Marking speed	≤8000mm/S
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.01mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.3mm*0.3mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation system	Microsoft Windows XP or Windows 2000
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A
Cooling method	Air cooling (100w: Water Cooling)
Instructions	Video instructions&instructions book

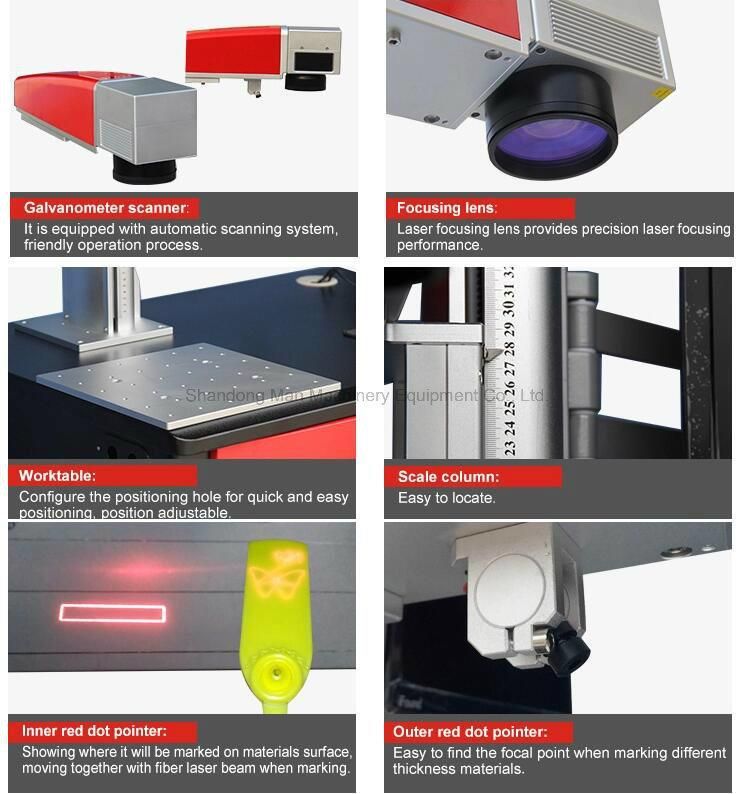

The Details Images :

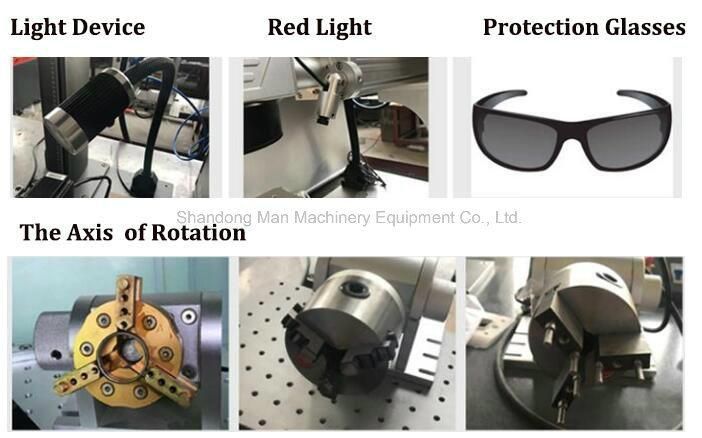

Standard laser parts for laser machine :

Sample Show :

Application Industry:

Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles,

kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Application Materials:

Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel,

stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits,

mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing

fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

Packaing & Shipping :

1. We can ship. air or land to your city, it is according to your location, and machine packing size. And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to yout near port, different port the time is different.



Services :

3 years machine warranty ,during the warranty period , if any parts broken, we change a new part for you freely.

-  All machines are debugged before shipment.

-  Lifetime technical support  and service.

-  24 hours on line or phone or by email technical support.

-  We offer detailed machine manual, software manual, controller manual.

-  Our factory make a vivid traing CD.

-  Maintenance  free of charge during lifespan.

-  Free training course at our plant.

-  Welcome to visit our factory, learn machine face to face.
