• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：65*60*152 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 65*60*152 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

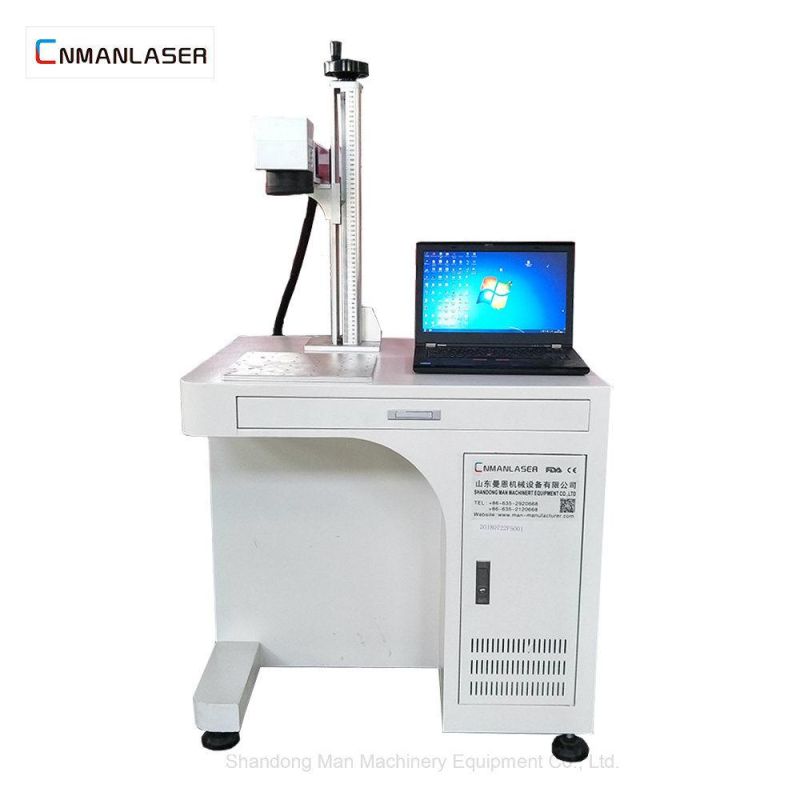

Desktop Fiber Laser Marking Machine With Win10 Computer and Display

Production :


Advantage  :

1.High electro-optical conversion efficiency, small size, good beam quality, stable performance.

2.Especially suitable for precision, fine marking.

3.Low cost.

4.Maintenance free operation.

5.Long service life.

6.Processing speed.

Technical Parameter :


Model name	MAN-F20/MAN-F30
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Machine color	blue grey ( red white,yellow black etc. for option)
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3  year
Optional parts	Rotary device
Instructions	Video instructions&instructions book

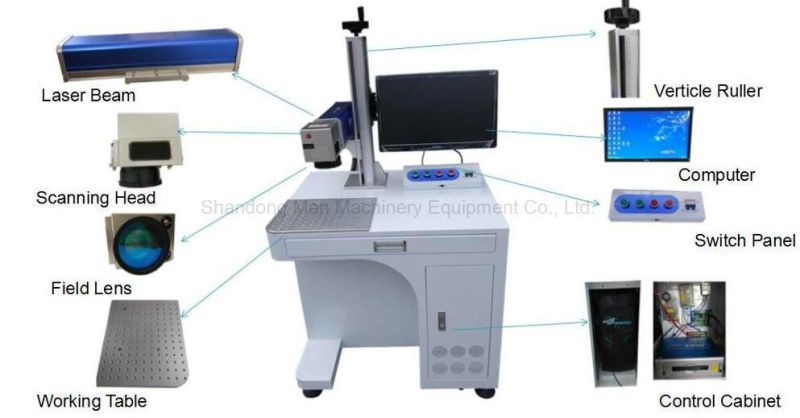

The Details Images :



Raycus or IPG laser source or other brand

Using the most advanced laser source in China,the life time can up 100000hours. The laser source guarantee are 2years.

German importing scanner head

Using computer graphics software in the handing of graphics,drawing with high efficiency,no distrotion...ect,

greatly improve the quatlity of a laser mark and speed.

Singapore importing F-theta lens

Improve the ability of the edge beam incident to the detector makes the pro be on the surface of the photosensitive non-iniform illumination uniformity.

Control panel

Humanized control system,the new USB ,dustproof plug is set,the control system easy to learn,can be used offline

Multifunctional working platform

High precision and practical multi-function workbench, mesa have multiple flexible screw holes, convenient custom installation fixture.

Focusing up and down

Rocker arm can lift up and down the 300mm,items can be placed 300mm high.Very good control the height of the machine,control and adjust the light path.

Machine Internal Wiring
Internal wiring of the machines adopt double insulated wire,prevent the machine from conductive.

Industrial Control Computer

Specially designed for industrial field,Enhanced ability to resist electromagnetic interference.Power supply

and the key board with electronic lock switch, can prevent illegal, and illegal keyboard input.

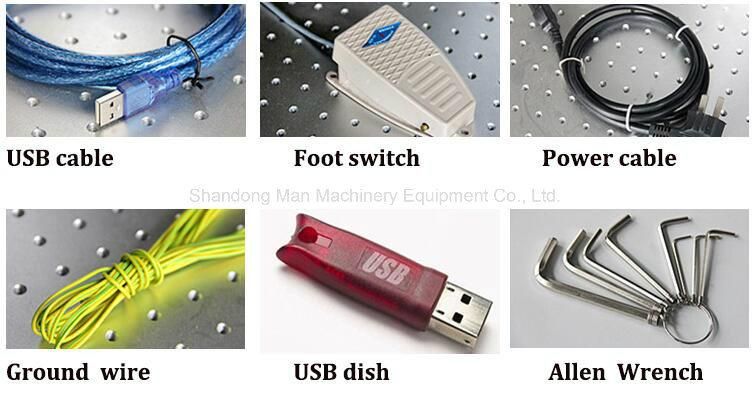

Standard laser parts for laser machine :

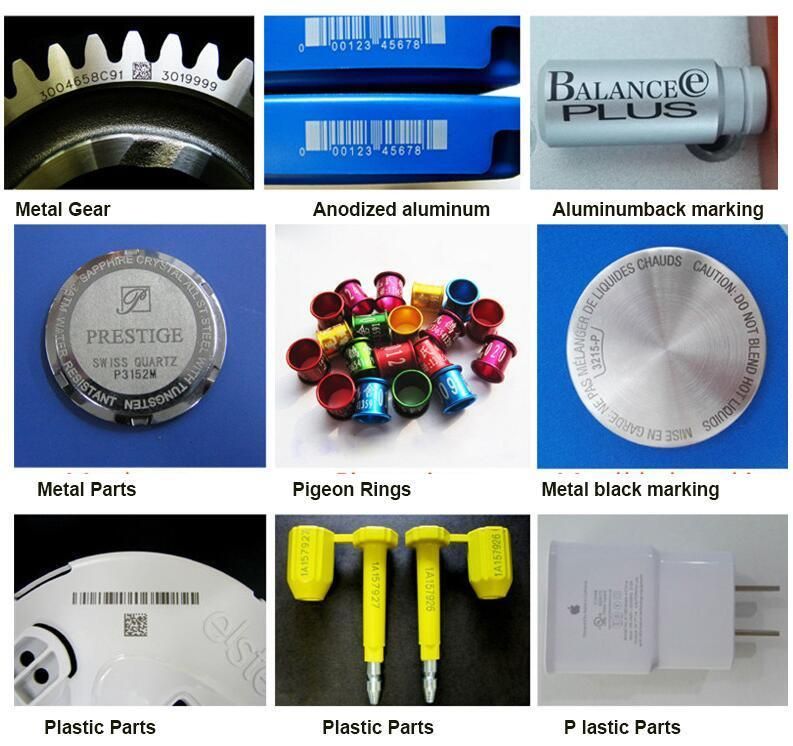

Sample Show :



Packaing & Shipping :

1. We can ship. air or land to your city, it is according to your location, and machine packing size. And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to yout near port, different port the time is different.



Services :

1.Warranty for 3 years.

2. Lifetime maintenance free.

3.We will provide the consumable parts at an agency price.

4.24 hours online service, free technical support.

5.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.

6.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance

FAQ  :

Q: Are you a factory or a trading company?

A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: How long will it take to make the delivery?

A: Generally, in 7~10 days after full payment confirmed.

Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.

Q: How can I pay my order?

A: We accept T/T, Western Union, Alibaba Trade Assurance to pay.

Q: Do you have a CE certificate?

A: For every model of machine, it has a CE FDA  SGS certificate
