• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：80*90*115 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 80*90*115 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

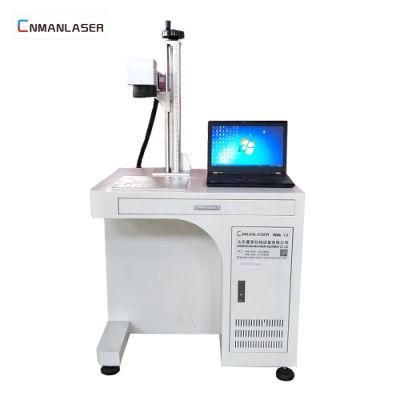

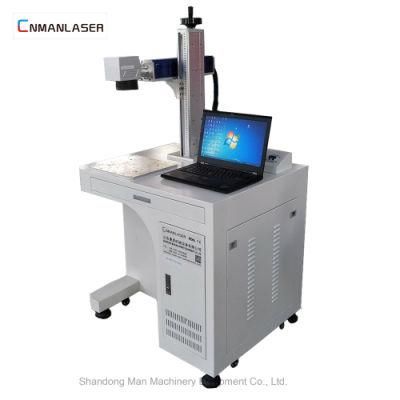

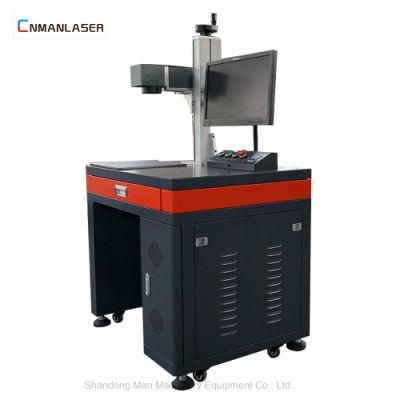

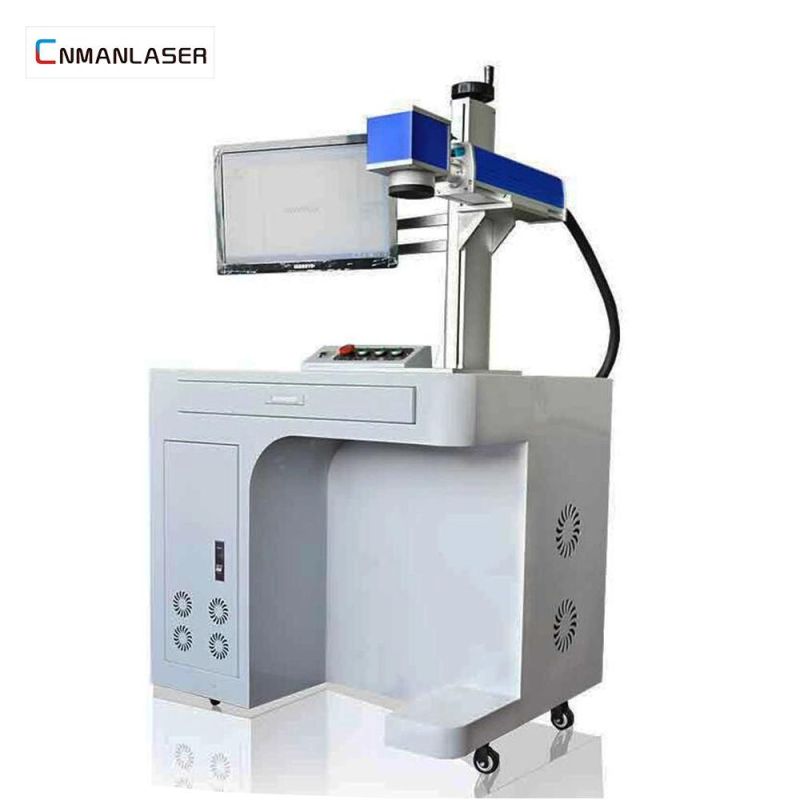

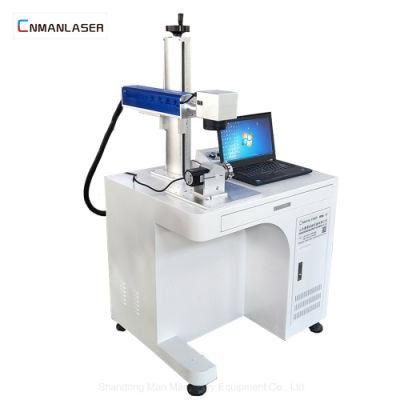

air cooling Cabinet laser marking machine for buckles auto parts

Production :


Advantage  :

1.High rate of electricity transportation.

2.Function is stable .

3.It can work consecutively and long time continuously.

4.Life time of laser marking is very long, 1000,00 hours.

5.Galvanometer and field lens

6.Size 100*100mm(150*150mm/200*200mm/300*300mm)

7.Marking Speed 8000mm/s

8.Electric up-down platform

Technical Parameter :


Model name	MAN-F20/MAN-F30
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Machine color	blue grey ( red white,yellow black etc. for option)
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3  year
Optional parts	Rotary device
Instructions	Video instructions&instructions book

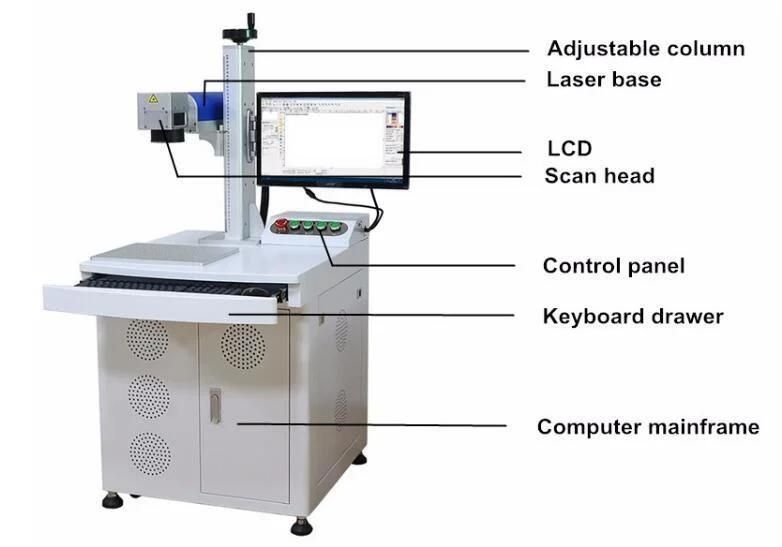

The Details Images :

1-laser source

Laser source we use rex famous brand laser source, high stability, long life, no consumables.

This is the key part of fiber laser marking machine.

2-Ftheta lens

Smart f theta lens with working area 110*110,200 * 200,300 x 300(mm)

The fiber laser beam through its focus to the work piece surface, so the energy is enough.

This optical accessories control marking area.

3-Galvo head

High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.

4-EZCAD control card

Famous brand directional EZCAD control system, easy to operate.

5-Power supply

Power supply for galvo head and control card

6-Lifting handle

To remove wheel to get the streng point to get focus.
Laser focus distance can be adjusted easily

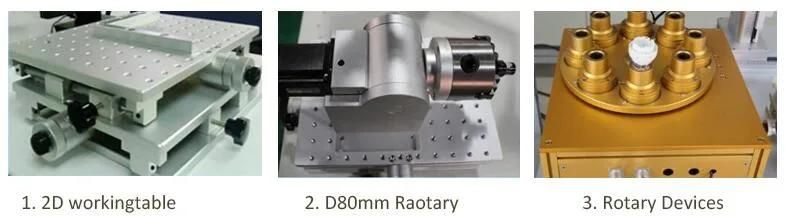

Optional  laser parts for laser machine :

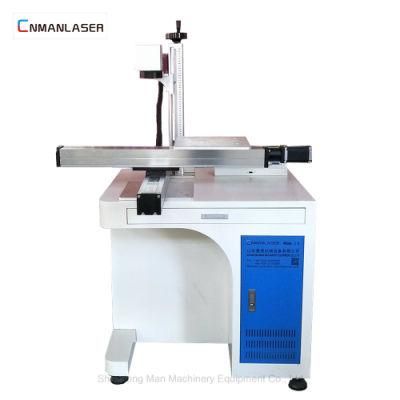

The handle on 2D platform can adjust position right-left, front-back.

>>We have two kinds of rotary: standard rotary and rotary for rings.

    Give us the diameter of your material, we will recommend you a suitable rotary.

Sample Show :



Packaing & Shipping :

1.Packing details: Standard plywood case

2.Packing size: 900*800*1150mm

3.Packing weight :100KG(NW) 160KG(GW)

4.Delivery time: 15 working days after payment


Certification  :


About US  :

1,How to choose a machine?

   Please let us know your request,then we can recommend the suitable machine for you .Such as:

    1.What kind of material will be cut or engraved? (For choosing suitable laser type.)

    2.What the thickness of your material?               (For choosing suitable laser power.)

    3.What is size for the process material?             (For choosing suitable working size.)

2,How to use it ?

     We will send you the instruction manual  in English version  and CD video with machine.

     If you still have some doubts, we can talk by telephone or skype. Our engineer also can face to face  to install or adjust machine if necessary.

3,If some problems happened  during warranty period ?

     We will supply free parts for this machine during the warranty period if machine have any problems without man-made reasons,

We also supply free after service forever.

4,How long is the delivery time?

     For standard machines, it would be 7-10 days;

For non-standard machines and customized machines according to client s specific requirements,it would be 15 to 30 days.

     It is our duty to help you offer some documents to client for customs clearance,like invoice,packing list,B/L,and other certificates,etc.

5, What is the price?

    As you know, the price is a little different according to the configuration and models.

If you want to know the details, please send message right now.
