• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：80*90*115 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：5000sets,Year

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 80*90*115 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 5000sets/Year

Product Description

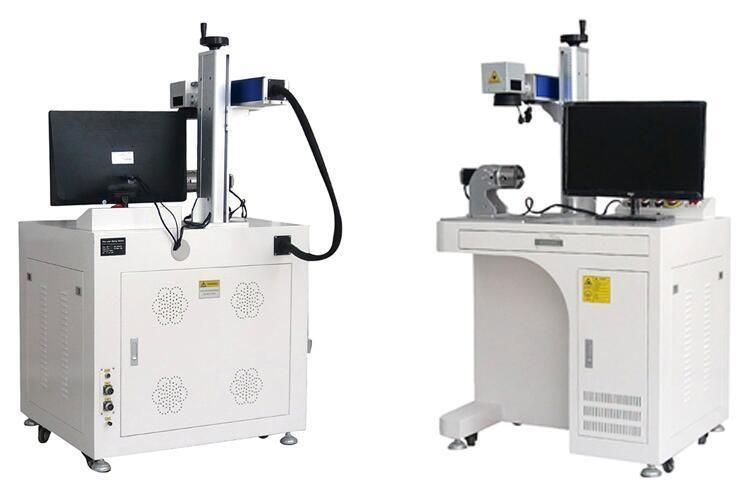

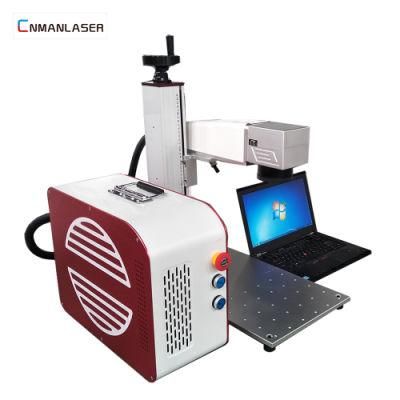

Desktop Cylinder Engraving laser marking machine with rotary devices


Production :




Advantage  :

1-Lifting Handle

2-Lifting Shaft: 48cm for 110mm x 110mm, 150mm x150mm,  and 200mm x 200mm working areas; 300mm x 300mm need to be lengened.

3-Laser Generator:  air cooling, enclosed metal fiber laser generator

4-rotary (optional)

 5-Position platform: 2D platform

6-Laser Power

 7- Monitor

8-Marking head: Field lens, high speed galvanometer. Fine marking, more quick and high reliability

9-Control Button: include Scanner power control button, Laser power control butten, Emergency stop.

10-Keyboard

11-Host
Technical Parameter :


Model name	MAN-F20/MAN-F30
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Machine color	blue grey ( red white,yellow black etc. for option)
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3  year
Optional parts	Rotary device
Instructions	Video instructions&instructions book

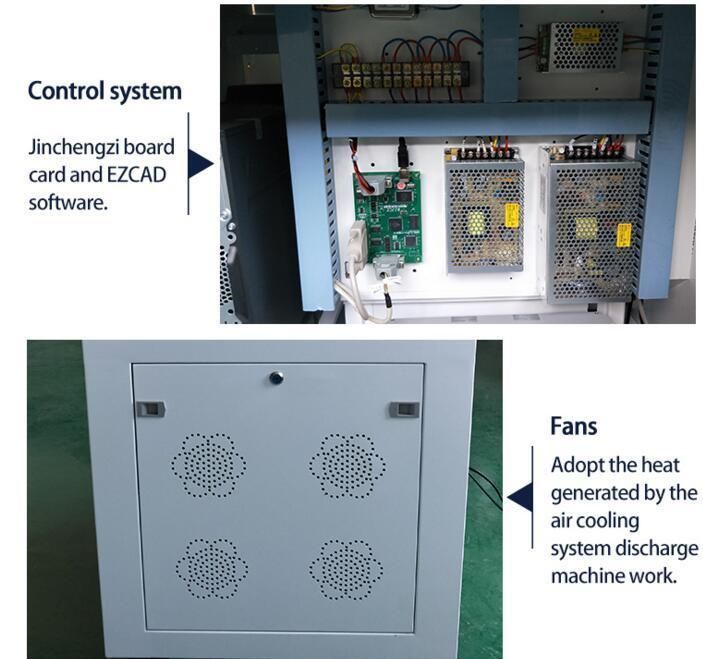

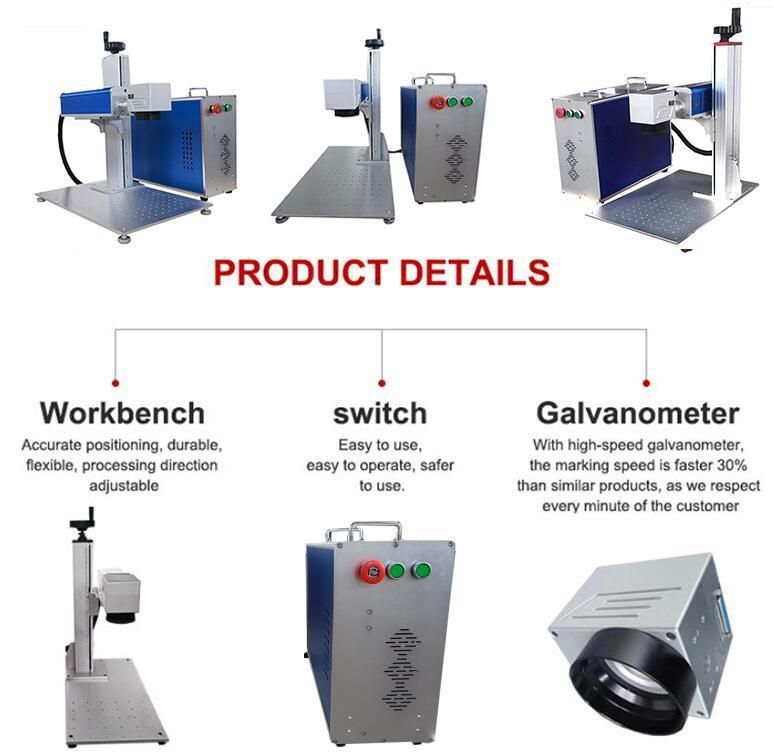

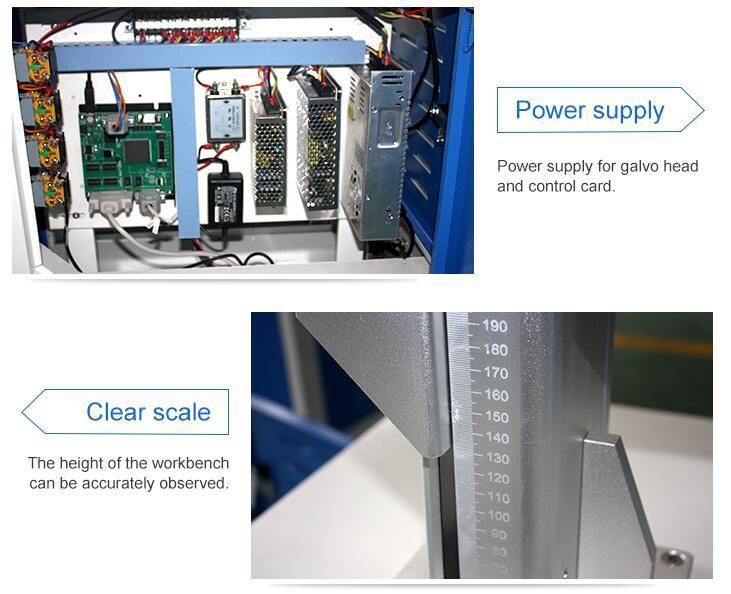

The Details Images :






Optional  laser parts for laser machine :

The handle on 2D platform can adjust position right-left, front-back.

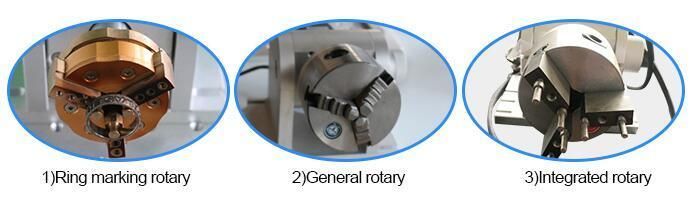

>>We have two kinds of rotary: standard rotary and rotary for rings.

    Give us the diameter of your material, we will recommend you a suitable rotary.

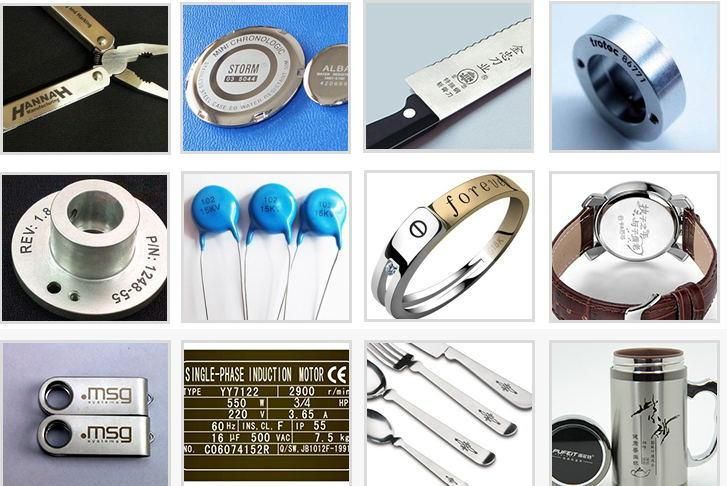

Sample Show :

Application Materials

Various Metal material such as stainless steel ,titanium,brass etc.

    -  Plastic materials such as PP,PE,PVC,ABS etc.

     -   Rubber

    -  Coating metal

    -  Epoxy resin

    - Electroplating materials

Packaing & Shipping :



Services :

Pre-sale service

1.Inquiry and consulting support, provide relavent technical.

2. Sample testing support.

3.View our Factory.

4. Strict quality inspection before leaving the factory.

After-sale service

1. Our technical engineers can go to customer's site for installation and training.

2. Customers may come to our factory directly for learning and training.

We offer the training, including machine installation, drawing operations , operation, machine trouble shooting, and maintenance.

3. Our company provide life long technical service for our machines.

4. Regular visits or telephone interviews to acknowledge the equipment usage.

About US  :

1,How to choose a machine?

   Please let us know your request,then we can recommend the suitable machine for you .Such as:

    1.What kind of material will be cut or engraved? (For choosing suitable laser type.)

    2.What the thickness of your material?               (For choosing suitable laser power.)

    3.What is size for the process material?             (For choosing suitable working size.)

2,How to use it ?

     We will send you the instruction manual  in English version  and CD video with machine.

     If you still have some doubts, we can talk by telephone or skype. Our engineer also can face to face  to install or adjust machine if necessary.

3,If some problems happened  during warranty period ?

     We will supply free parts for this machine during the warranty period if machine have any problems without man-made reasons,

We also supply free after service forever.

4,How long is the delivery time?

    For standard machines, it would be 7-10 days;

For non-standard machines and customized machines according to client s specific requirements,it would be 15 to 30 days.

     It is our duty to help you offer some documents to client for customs clearance,like invoice,packing list,B/L,and other certificates,etc.

5, What is the price?

    As you know, the price is a little different according to the configuration and models.

If you want to know the details, please send message right now.




If you need anything, please contact us.
