• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Portable Ear Tag Number Fiber Laser Marking Machine for Sale





Portable Fiber Laser Marking Machine is divided into 3 types:

1). split-type fiber laser marking machine,

2). integrated type fiber laser marking machine,

3). handheld type fiber laser marking machine.

This is the handheld type fiber laser marking machine.

It adopts advanced digital high-speed scan galvanometer and module design that separate laser generator and lifter,

which is not only the small volume, quick speed, but easily marks on big objects surface.

Because of it compact size, it is portable and easy to move to flexible laser marking.

Advantage :

01. mini fiber laser marking machine with red light contraposition system: easy operation.

02. With electric lift system: the operation is more relaxed and comfortable.

03.High definition: resolution is 1 micron, superior optical quality, which achieve better marking.

04. The low power consumption: low cost, no chiller, fully air- cooled electro- optical conversion with highest efficiency up to 30%.

05. High speed: more than three to five times faster than traditional products, high repetition frequency and high marking speed.

06. Stabilization: unmatched by similar products, maintenance- free operation of the laser without any maintenance.

07. Long lifetime: more than 10 times that of traditional products, our machine uses a laser diode as the pump source,

the working time is up to 100,000 hours.
  TECHNICAL  PARAMETER :

Model	MAN-F20/ MAN-F30
Laser source power	20 W/ 30W /50W
Marking Area	100*100mm
Cooling Mode	Air Cooling
Laser Wavelength	1064 nm
Frequency of pulse	20-100 KHz
Marking Depth	≤0.4 mm
Marking Speed	0-7000 mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	0.001mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000
Control Software	EZCAD Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc
Unit Power	≤0.8 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog

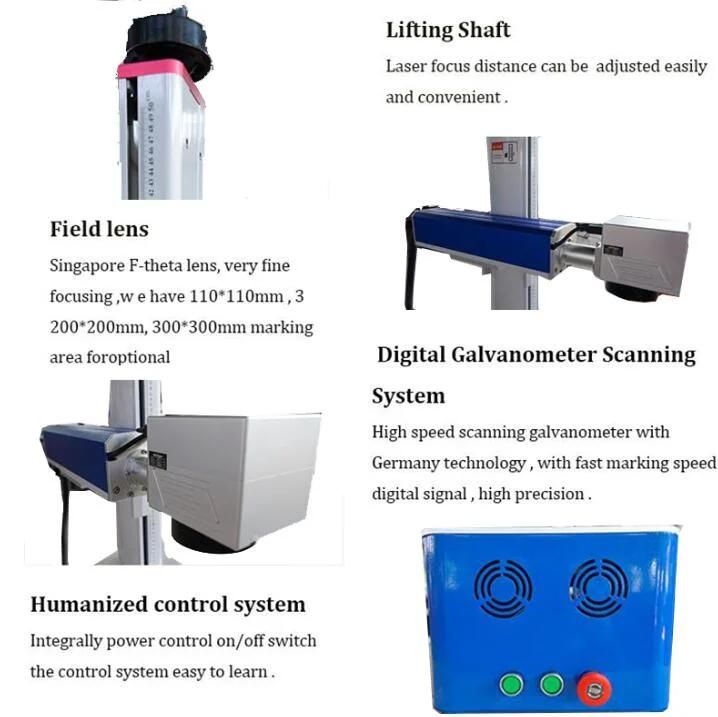

IMAGES  DETAILS :

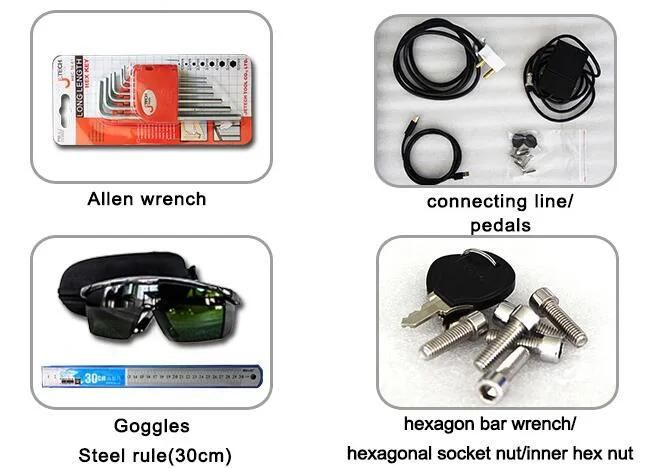

Standard Laser Parts  :

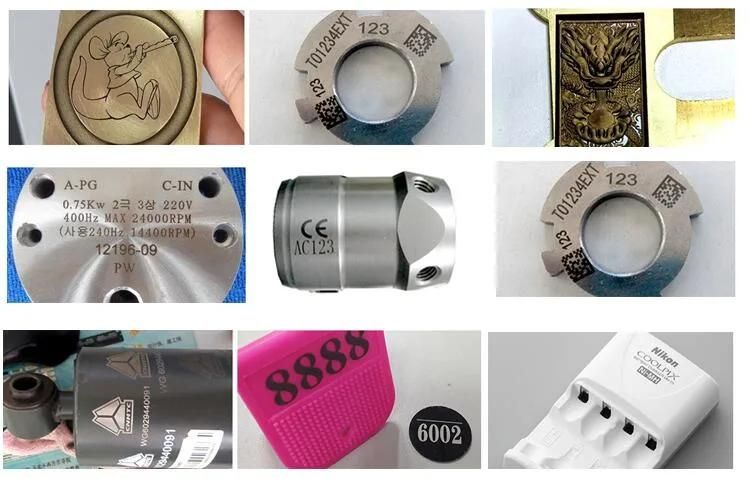

SAMPLE SHOW :
Application:

1. It is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and  watch,

mould, bitmap marker, etc.

2. It can carve metal materials and certain nonmetal materials and is widely used in fields that have high  requirement on depth,

smoothness and fine, such as stainless steel mobile phone overlay, clock and watch, mould, IC, mobile phone keypad, etc.

3. Bit map marker can carve beautiful pictures on the surfaces of metal and plastic, and the marker speed is 3- 12 times of the
speed of traditional first generation lamp pump marker and second generation semiconductor marker.

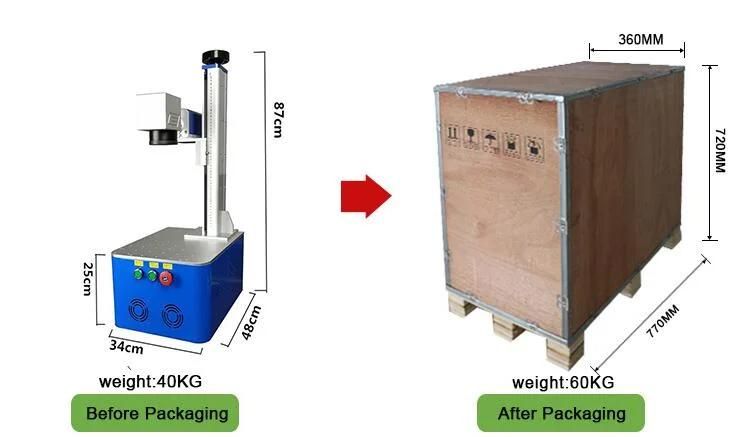

PACKAGING & SHIPPING  :

Trade terms: FOB, CIF, EXW

Payment terms: T/T, Western Union, Escrow, MoneyGram

Payment condition: 30% deposit before production, 70% balance before delivery

Delivery time: 1-3 working days after deposit

Packaging: Crate box to protect the machine inside and delivery in safety.

Shipping: By sea, by air or express delivery

ABOUT US  :

FAQ :

1. How can i make sure that this machine is suitable for my work?

A: You can describe what you will use this machine to do , such as your working materials, max working area and cutting thickness,

We will give you right machine for your work

2. Are you factory or trading company?

We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year ,

You are welcomed to come to our factory at any time

3.  It is my first time to use this machine , is it easy to operate?

We have manual book and operation video, it can teach you how to use it .

If there is still have any question, we can teach you online If there is a need , Our engineer can go abroad to help you

4.  What can i do if the machine have any problems after i get it?

Free parts will be sent to you during warranty period

Free after-sales service will be given in the machine lifetime, we offer you 24hours online service

5.What is your MOQ ( minimum order quantity ) ?

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly,

please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
