• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

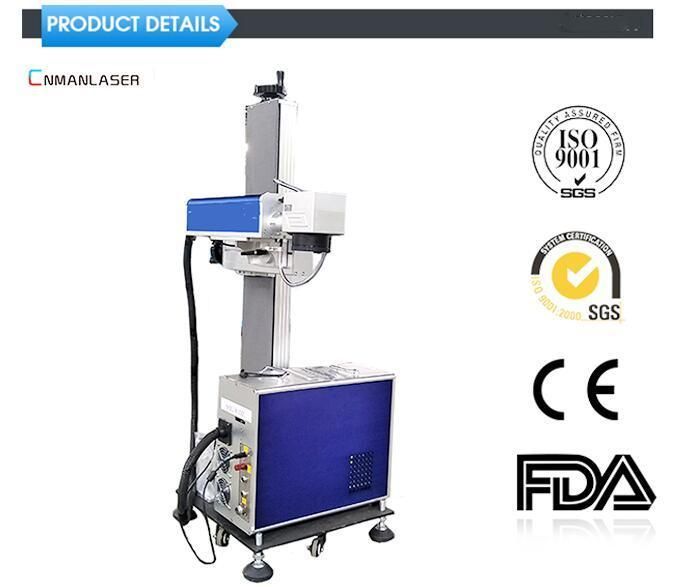

Fiber Laser Marker/ 20w Marking Machine for Metal Material



Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.

It is small design and the complete weight is 60kgs.

High Precision: Re-position precision is 0.002mm

High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s

Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency.

You can input and output by computer according to edit in the both of the specific marking software and the graphic software

such as AutoCAD, CorelDRAW or Photoshop.

High Reliability: MTBF>100,000 hours

Energy Saving: The efficiency of optic-electrical converting is up to 70%

Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path
  TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

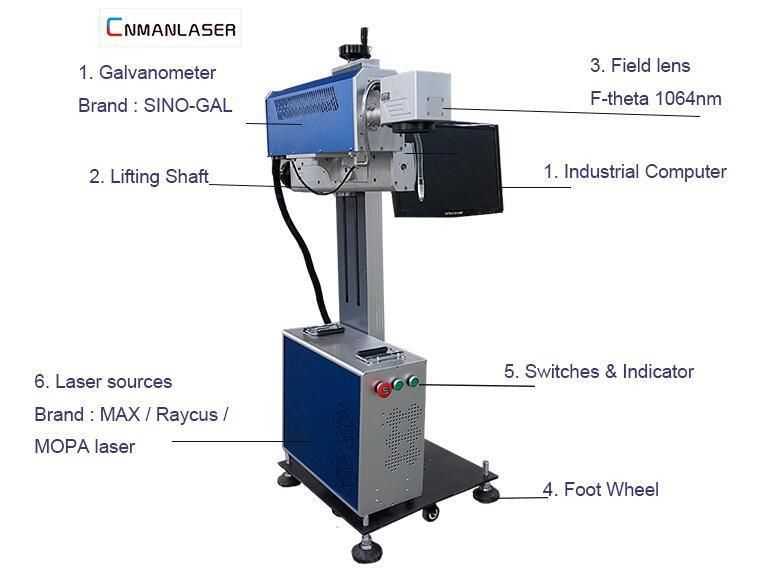

IMAGES  DETAILS :



1.Scanning galvanometer:high speed mirror: high precision, fast and stable;

2.Field mirror:Automatic red light focusing system makes marking more convenient;

3.Touch screen:Professional software, simple interface, simple operation;

4.Lift scale: Precision ruler, marking effect more accurate;

5.Elevator shaft:up and down adjustment,laser marking unlimited easily.

6.Laser tube: new technology laser tube,zero fault important factor;

7.Control panel:Intelligent chip ,stable and reliable operating software

8.Power supply:Excellent power supply to reduce fault occurrence;

9.Control switch;Control switch, simple, clear and easy to operate;

10.Ribbon cable:The alignment is neat, neat, guarantees the safety.

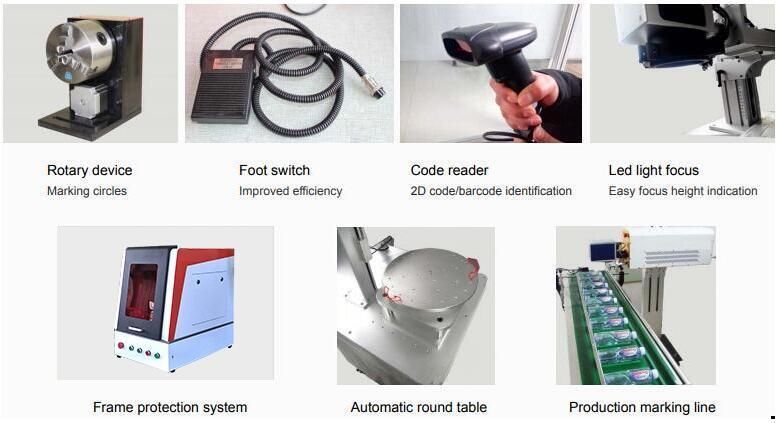

Standard  Laser Parts :


 SAMPLE SHOW :

Applicable industries:

Mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys,

electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware,

tools, accessories, knives, eyeglasses and clocks,jewelry, auto parts, luggage buckle, cooking utensils,

stainless steel products and other industries.

Applicable Materials:

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics,

rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials

PACKAGING & SHIPPING :

1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time .

Finally , send all origin documents to you by Express for free .

2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number

3.Delivery to the warehouse which you reques . Will tell you logistic or express tracking number


ABOUT US :

Pre-Sale Service

1.Free Fiber Laser Marking Samples waiting for you!

2.24 HOURS online service Trade Manager/ WhatsApp/Skype/Facebook waiting for you!

3.Free training course for our products,free technical support!

4.All the optical laser marking machine will be well adjusted before delivery.

5.Quick and safety packing and shipping for products!

After-Sale Service

1.24 hours online service,

2.Provide product longlife technical services

3.According to your problem during using the fiber laser marking machine,offer answers and solve problems!

FAQ :

*What do I need to know when I need a recommendation?

1. What materials you want to process with?( stainless steel, aluminum, wood, plastic...)

2. Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)

3. Do you need to mark on cylindrical or round surface?

4. Do u have size or weight of the product u need to marking on?

5. Do you buy for person use or selling?
