• Model NO.：MAN-20
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type CO2 Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

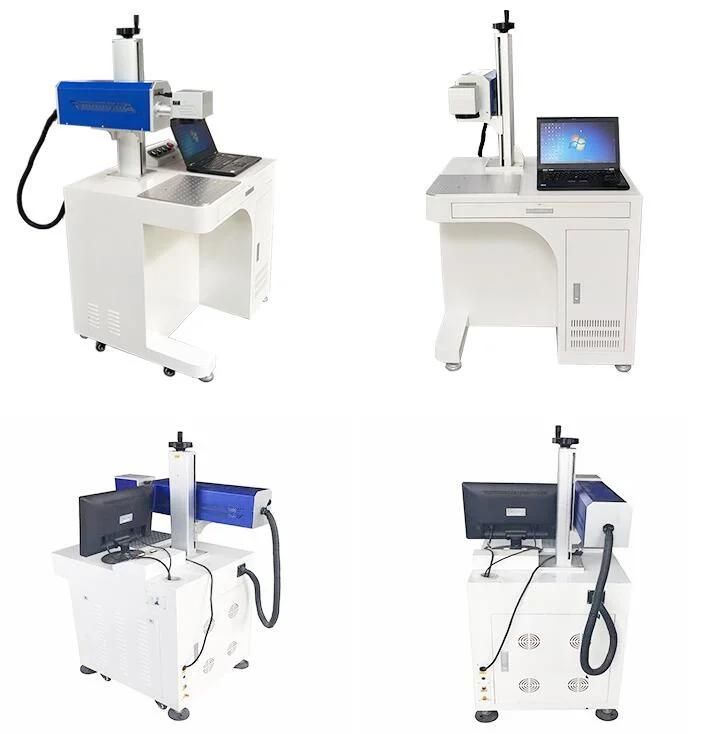

Automatic Logo CO2 Laser Marking Machine for Leather Wooden






TECHNICAL  PARAMETER :


Name	CO2 Laser Marking Machine
Laser Beam Quality	<2(M2)
Laser Type	CO2 Laser
Laser Working Hours	100000h
Max. Marking Line Speed	120m/min(up to the marking content)
Laser Marking Max Width	75*75mm--300*300mm
Laser Wavelength	1064nm
Laser Marking Depth	0.05-0.5mm
Marking Line Speed	7000mm/s
Min. Character Height	0.1mm
Repeat Accuracy	0.1mm
Laser Marking Content	Text, Letters, Patterns, QR codes, Barcodes, Dates,etc
Required Computer Systems	Windows XP,win7, win8,win10
File Format	MP/DXF/HPGL/JPEG/PLT/PCX
Cooling System	Air Cooling
Working Environment	Unlimited
Warranty	3 years

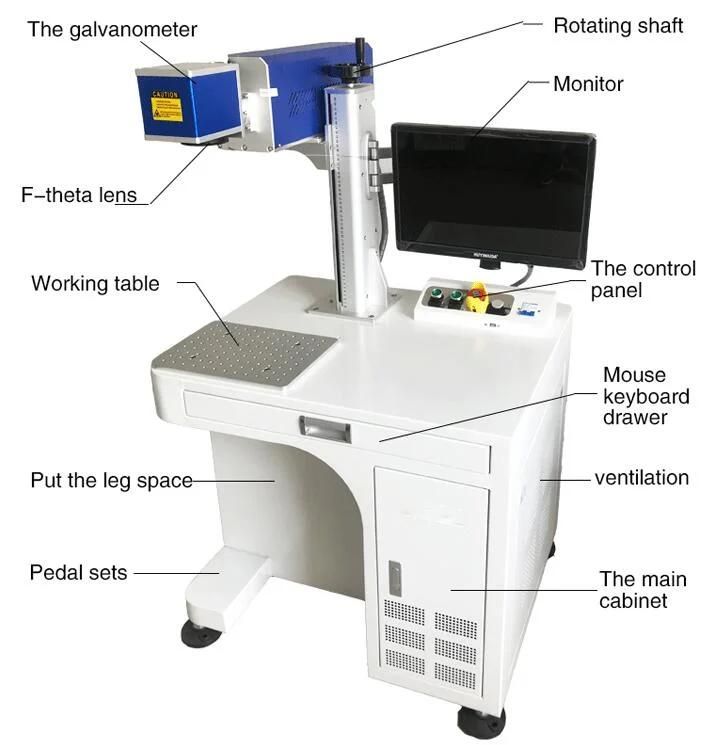

DETAILS   IMAGES :



Name: Laser source for laser marking machine

We adopt MAX ,Raycus,IPG etc famous brand laser source.High stability and long lifetime without consumables.

Which is the key part for laser marking machine.

Machine Parts No.2

Name: F-theta lens for laser marking machine

Smart theta lens with working area

110*110,200*200,300*300(mm).

Machine Parts No.3

Name: Galvanometer for laser marking machine

High speed galvanometer scan head adopting scan LAB technology, digital signal,high preposition.

Machine Parts No.4

Name: EZCAD control card for laser marking machine

Famous brand original EZCAD control system with high stability and easy operation.

Machine Parts No.5

Name: Lifting handle for laser marking machine

To remove wheel to get the strong point to get focus.Laser focus distance can be adjusted easily.

Machine Parts No.6

Name:Foot pedal for laser marking machine

Press by foot,it is easy to run the machine by foot,easy and convenient to operate it.

Optional Laser Parts ;

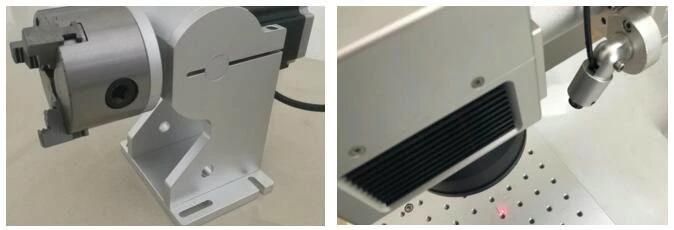

Optical fiber marking machine rotation aid

Its role is mainly to help you mark on a cylindrical object such as a ring.

It is not a standard configuration but requires an extra charge.

Optical fiber marking machine red light

It can play an auxiliary reticle and positioning role


APPLICATION :


Materials	Mark	Materials	Mark
alloy	√	hardware	√
copper	√	mobile phones	√
aluminium	√	eye glass frames	√
zinc	√	clocks and watches	√
rare metals	√	plastic buttons	√
electronic components	√	building material	√
integrated circuits	√	chemical and food packaging	√
pvc pipe	√	medical instruments	√
plate surface	√	metallic oxide	√
plate surface	√	alarm	√
commodity	√	printed material	√
brass	√	auto spare parts	√
precision equipment	√	ABS	√
tool accessories	√	motor accessories	√

PACKAGING &  SHIPPING :

Packaging and shipping

Our laser machines package include 3 layers:

1, Outside package: Polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.

3.Delivery time is within 5-7 workdays after your payment.



ABOUT US

Training and Use

1.We will supply with the machine operation manual in English version for installing and operation.

 2.Customer can come to our factory training.

Warrantly and After-sales service

1. Our warranty is 3  years counting from the date when the Machine arrives at the port of destination.

2. We will supply after service 24 hours,customer can contact us any time.

FAQ :

Q1:How can I get the best machine for me?

You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not.

Then we can give you the best model depends on our experience.

Q2: How to operate the machine? is training necessary?

A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment,

we will make a simple operation manual with pictures and provide user manual of software.

Generally speaking, an operator, who is not familiar with Fiber Laser Marking Machine before can still operate it very well.

Q3: If some problems happen to this machine during warranty period, what should I do?

A: We will supply free parts during machine warranty period if machine have some problems.

While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Is there any technical support in case any machine problem?

A: Yes, for any machine issues, we'll solve the problem through email, skype, phone or video.

Q5: What's delivery time?

A: Generally speaking, lead time is 3-5 working days after receive the payment.
