• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

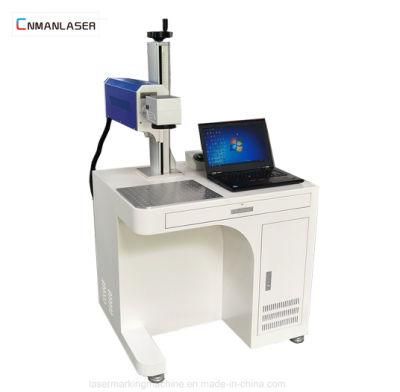

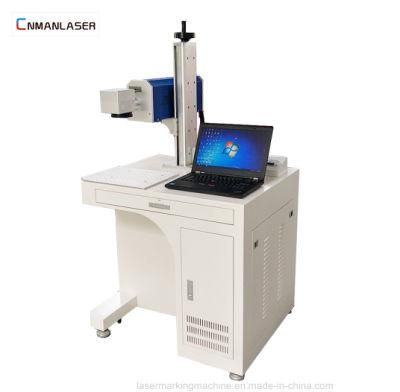

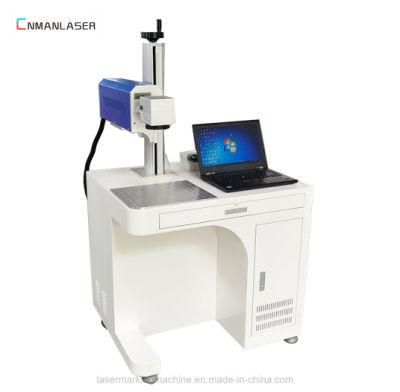

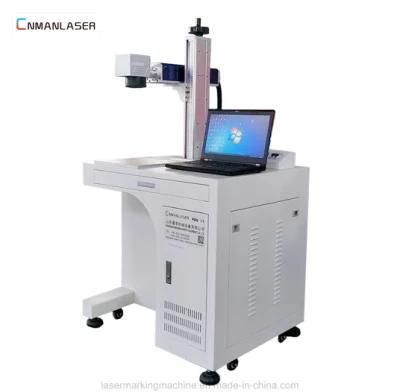

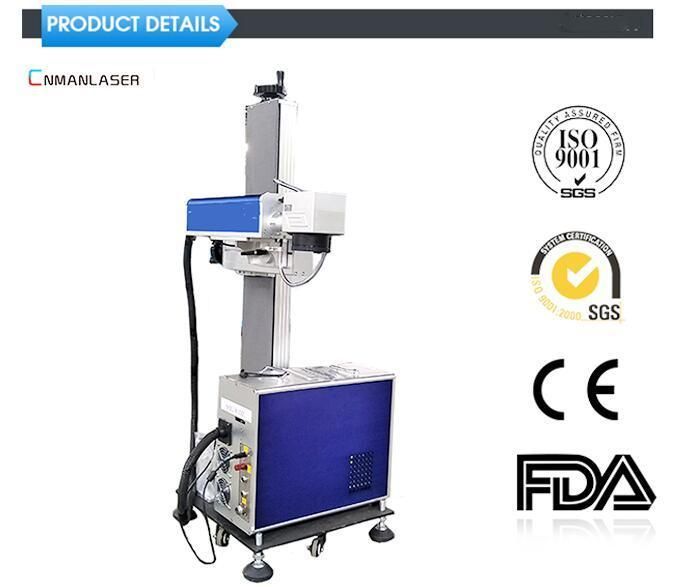

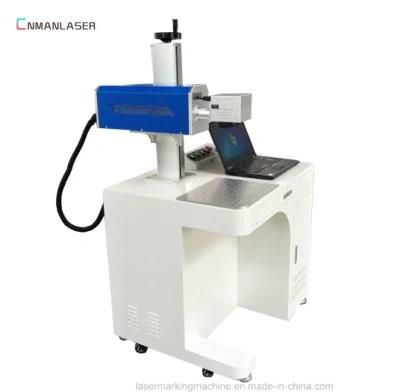

Flying Fiber Laser Marking Machine for Glass Cloth Steel Jewelry



1.Fiber Laser marking machine is low consumables, low cost, energy saving: only need simple air cooling;

2.Simple maintenance: Modular core components of laser marking machine for easy installation and maintenance;

3.Laser marking machine with strong software,easy to learn and use;

4.Fiber laser marking machine with no contact and cutting force,small heat impact,ensure the original accuracy of the workpiece;

5.Durability, anti-counterfeiting,environmental protection;

6.Long use time: Up to 100,000 hours.
  TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

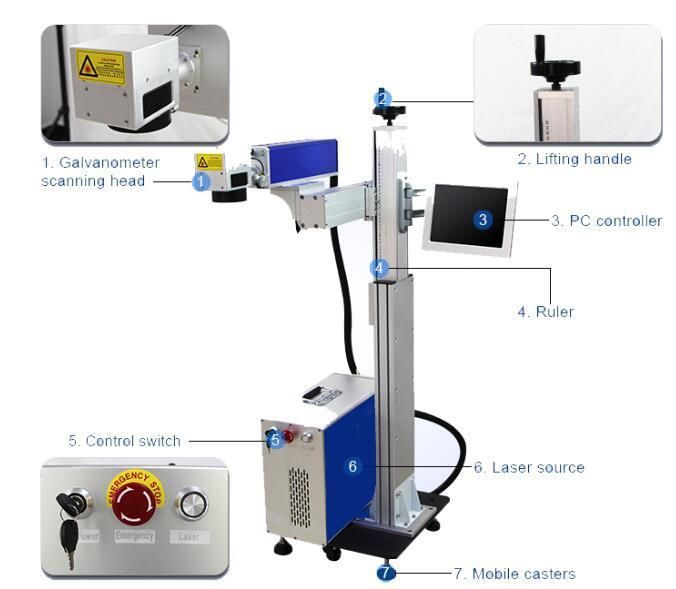

IMAGES  DETAILS :


1.Scanning galvanometer:high speed mirror: high precision, fast and stable;

2.Field mirror:Automatic red light focusing system makes marking more convenient;

3.Touch screen:Professional software, simple interface, simple operation;

4.Lift scale: Precision ruler, marking effect more accurate;

5.Elevator shaft:up and down adjustment,laser marking unlimited easily.

6.Laser tube: new technology laser tube,zero fault important factor;

7.Control panel:Intelligent chip ,stable and reliable operating software

8.Power supply:Excellent power supply to reduce fault occurrence;

9.Control switch;Control switch, simple, clear and easy to operate;

10.Ribbon cable:The alignment is neat, neat, guarantees the safety.

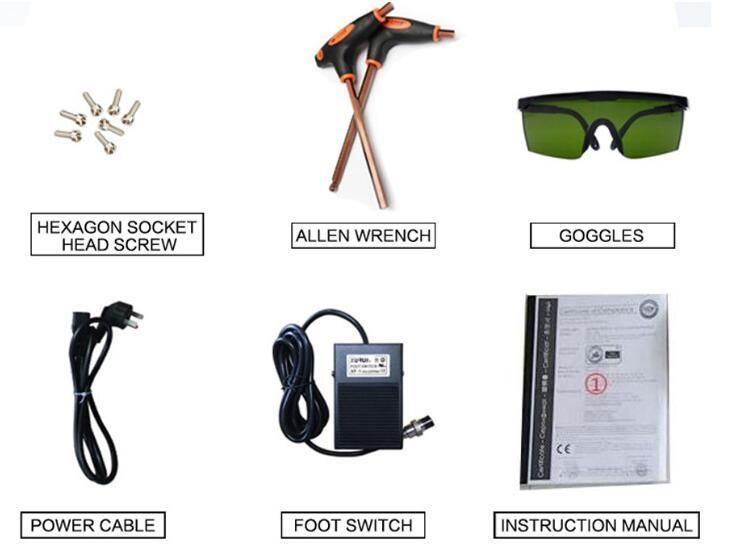

Standard  Laser Parts :


 SAMPLE SHOW :


ABOUT US :

Packing :

1.Our wooden case is fumigated, which is inspect-free,saving shipping time.

2.All the spare parts of the machine were covered by soft materials,mainly using pearl wool to avoid damages that

could happen in the delivery process.Then we'll cover them tightly by plastic wrapper, which is also waterproof.

3.The outmost is wooden case with fixed formwork.

4.The bottom of the wooden case has firm irony stand, which is convenient to handle and transport.

Delivery :

1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time .

Finally , send all origin documents to you by Express for free .

2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number

3.Delivery to the warehouse which you reques . Will tell you logistic or express tracking number

Pre-Sale Service

1.Free Fiber Laser Marking Samples waiting for you!

2.24 HOURS online service Trade Manager/ WhatsApp/Skype/Facebook waiting for you!

3.Free training course for our products,free technical support!

4.All the optical laser marking machine will be well adjusted before delivery.

5.Quick and safety packing and shipping for products!

After-Sale Service

1.24 hours online service,

2.Provide product longlife technical services

3.According to your problem during using the fiber laser marking machine,offer answers and solve problems!

FAQ :

*What do I need to know when I need a recommendation?

1. What materials you want to process with?( stainless steel, aluminum, wood, plastic...)

2. Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)

3. Do you need to mark on cylindrical or round surface?

4. Do u have size or weight of the product u need to marking on?

5. Do you buy for person use or selling?
