• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Aluminum Metal Fiber Laser Marking Engraving Machine 20w 30w




Portable Fiber Laser Marking Machine is divided into 3 types:

1). split-type fiber laser marking machine,

2). integrated type fiber laser marking machine,

3). handheld type fiber laser marking machine.

This is the handheld type fiber laser marking machine.

It adopts advanced digital high-speed scan galvanometer and module design that separate laser generator and lifter,

which is not only the small volume, quick speed, but easily marks on big objects surface.

Because of it compact size, it is portable and easy to move to flexible laser marking.
  TECHNICAL  PARAMETER :

Model	MAN-F20/ MAN-F30
Laser source power	20 W/ 30W /50W
Marking Area	100*100mm
Cooling Mode	Air Cooling
Laser Wavelength	1064 nm
Frequency of pulse	20-100 KHz
Marking Depth	≤0.4 mm
Marking Speed	0-7000 mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	0.001mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000
Control Software	EZCAD Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc
Unit Power	≤0.8 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog

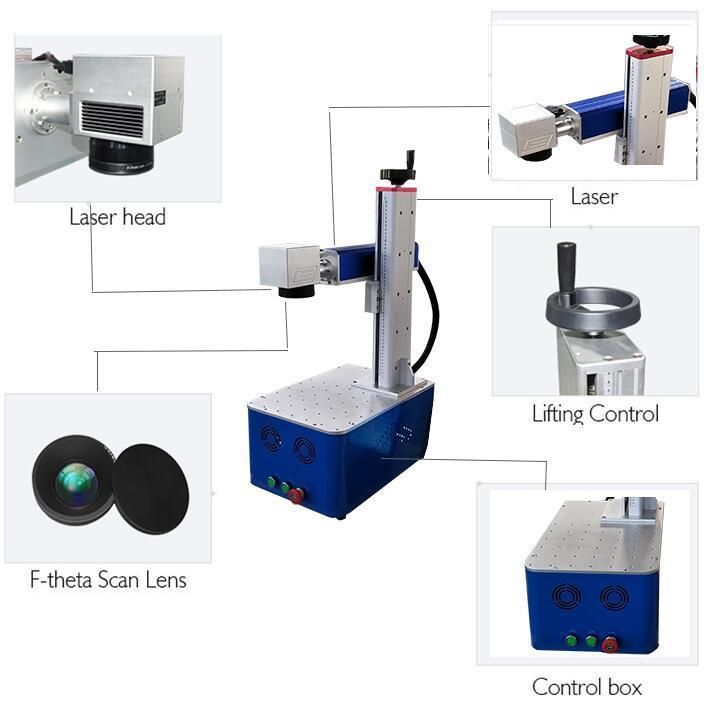

IMAGES  DETAILS :

01 .brating mirror

Using high speed galvanometer, marking speed is 30%

faster than that of similar products, respecting every customer's time.

02. Field mirror

Field mirror scanning system adopts new technology, new material, new technology, new working principle, design and manufacture.

03. Work platform

Fixed point accurate, durable, flexible and adjustable processing direction.

04. Switch button

Humanized design operation button, convenient switching and quick use.

05. Lifting handle

Material quality, effective and stable, professional manufacturers, precise positioning, and easy to use.

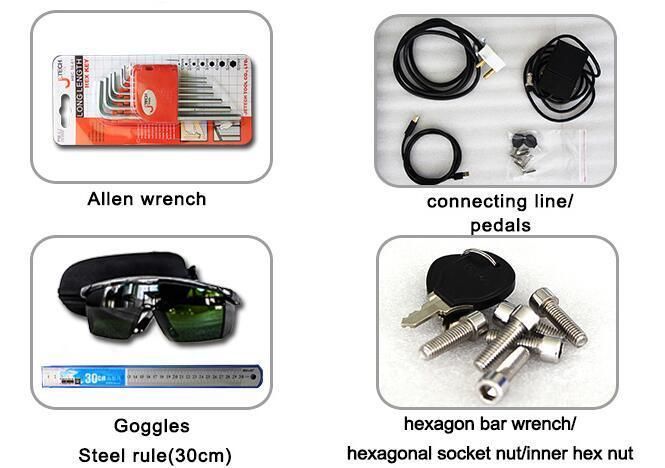

Standard Laser Parts  :


SAMPLE SHOW :

1.Mechanical Parts:Bearings, Gears, Standard Parts, Motor, etc.

2.Instrument:Panel Board, Nameplates, Precision equipment, etc.

3.Daily Necessities:Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

4.Hardware Tools:Knives, Tools, Measuring Tools, Cutting Tools, etc.

5.Automobile Parts:Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6.Electronic Components:Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.


PACKAGING & SHIPPING  :

Trade terms: FOB, CIF, EXW

Payment terms: T/T, Western Union, Escrow, MoneyGram

Payment condition: 30% deposit before production, 70% balance before delivery

Delivery time: 1-3 working days after deposit

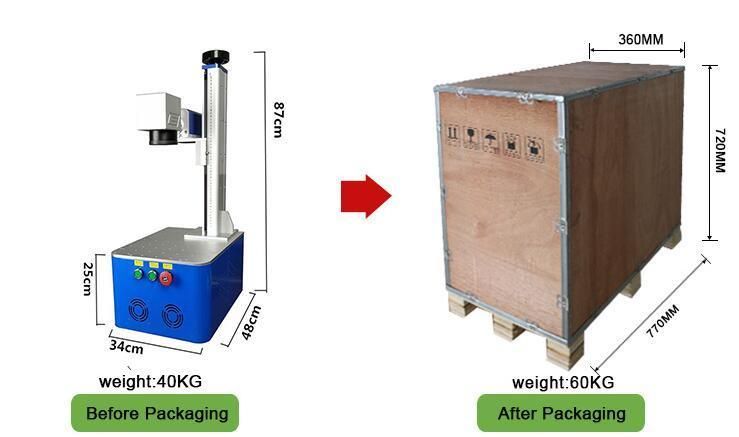

Packaging: Crate box to protect the machine inside and delivery in safety.

Shipping: By sea, by air or express delivery

ABOUT US  :

FAQ :

1. How can i make sure that this machine is suitable for my work?

A: You can describe what you will use this machine to do , such as your working materials, max working area and cutting thickness,

We will give you right machine for your work

2. Are you factory or trading company?

We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year ,

You are welcomed to come to our factory at any time

3.  It is my first time to use this machine , is it easy to operate?

We have manual book and operation video, it can teach you how to use it .

If there is still have any question, we can teach you online If there is a need , Our engineer can go abroad to help you

4.  What can i do if the machine have any problems after i get it?

Free parts will be sent to you during warranty period

Free after-sales service will be given in the machine lifetime, we offer you 24hours online service

5.What is your MOQ ( minimum order quantity ) ?

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly,

please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
