• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

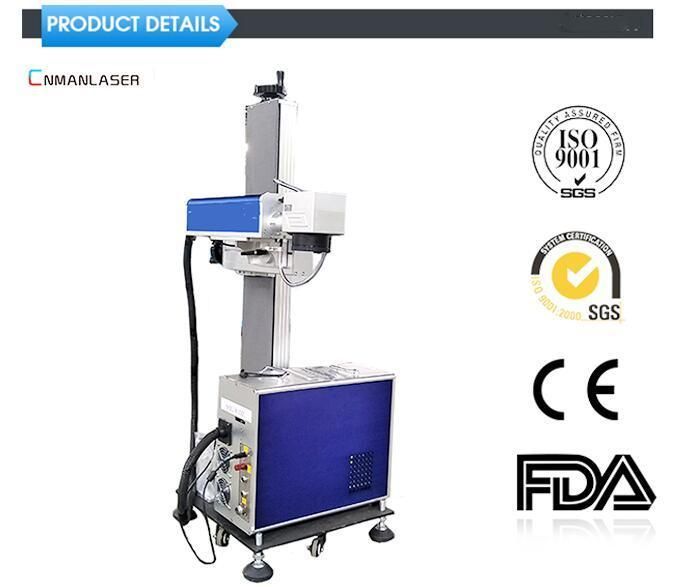

20W 30W Fiber Online Flying Laser Marking Machine for Metal



1.Scanning galvanometer:high speed mirror: high precision, fast and stable;

2.Field mirror:Automatic red light focusing system makes marking more convenient;

3.Touch screen:Professional software, simple interface, simple operation;

4.Lift scale: Precision ruler, marking effect more accurate;

5.Elevator shaft:up and down adjustment,laser marking unlimited easily.

6.Laser tube: new technology laser tube,zero fault important factor;

7.Control panel:Intelligent chip ,stable and reliable operating software

8.Power supply:Excellent power supply to reduce fault occurrence;

9.Control switch;Control switch, simple, clear and easy to operate;

10.Ribbon cable:The alignment is neat, neat, guarantees the safety.
  TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

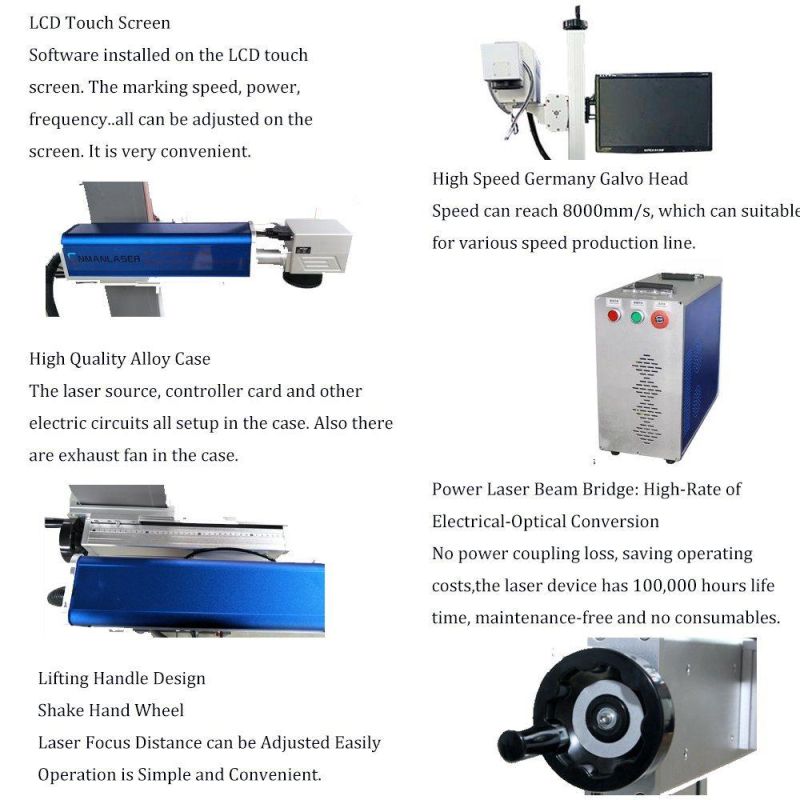

IMAGES  DETAILS :

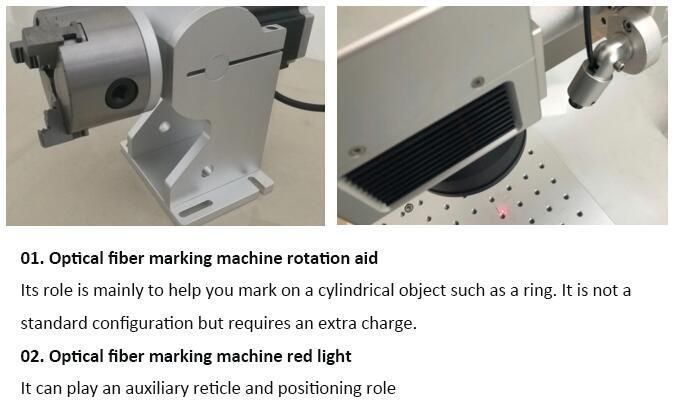

Optional Laser Parts :

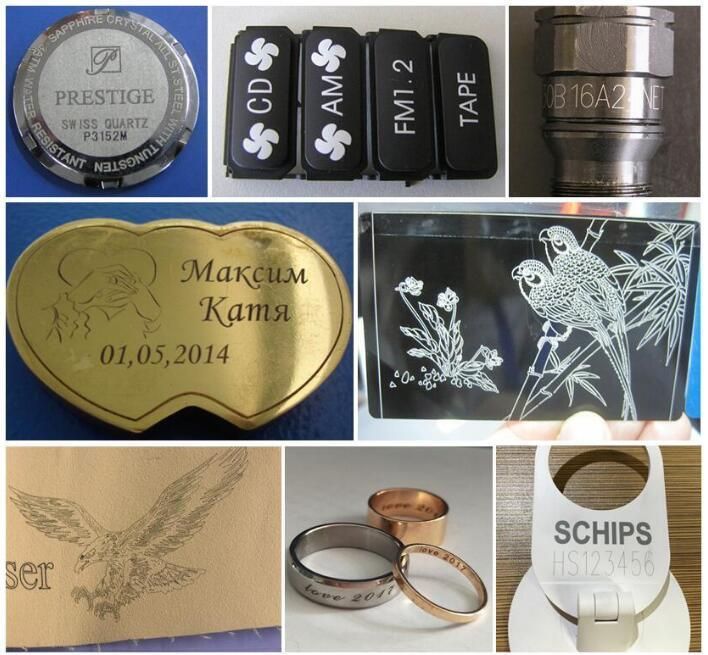

 SAMPLE SHOW :

Applicable industries:

Mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys,

electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware,

tools, accessories, knives, eyeglasses and clocks,jewelry, auto parts, luggage buckle, cooking utensils,

stainless steel products and other industries.

Applicable Materials:

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber,

epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

PACKAGING & SHIPPING  :

1. Packaging with factory Metal Nameplate;

2. Standard export wooden cases with sponge filled inside for packing protection.

3. The Wooden case is fumigation free. Suitable both by sea and by air.



ABOUT US :

Pre-Sale Service

Pre-Sales Service

Free Pre-Sales Consulting / Free Sample Marking

 offer 24  hours quick pre-sales response and free consulting. Any kind of technical support are available for users.

Free Sample Making is available.

Free Sample Testing is available.

We offer progressing solution design to all the distributor and users.

---After-sales Services

1. 3 years guarantee for main machine (People damaged are charged).

2. Full technical support by e-mail, call and video

3. Lifelong maintenance and spare parts supply.

4. Free design of fixtures as customers required.

5. Free training installation and operation for the staffs

FAQ :

*What do I need to know when I need a recommendation?

1. What materials you want to process with?( stainless steel, aluminum, wood, plastic...)

2. Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)

3. Do you need to mark on cylindrical or round surface?

4. Do u have size or weight of the product u need to marking on?

5. Do you buy for person use or selling?
