• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

30w Fiber Laser Engraving Marking Equipment With Raycus Sources




Marking Area:110*110mm, 175*175mm optional)

1> We are Professional manufacturer of fiber laser marking machine , and have 8 years experience for over-sea market.

2> Adopt quality parts such as Germany IPG / China Raycus / Singapore Jpt fiber laser source.

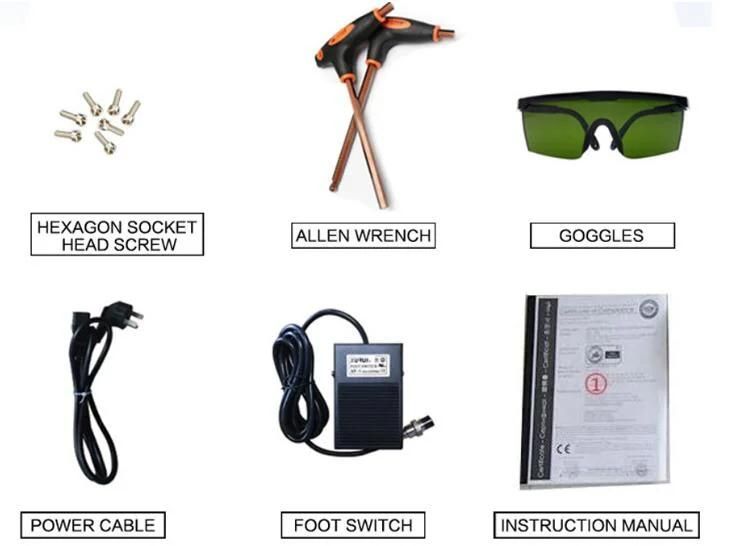

3>  This fiber laser mark machine will come with computer, professional software, and full english user guider.

4> Warranty period: 3 years.

5> Certificate: CE / FDA. / SGS

6> Delivery time: 5-7 working days
  TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

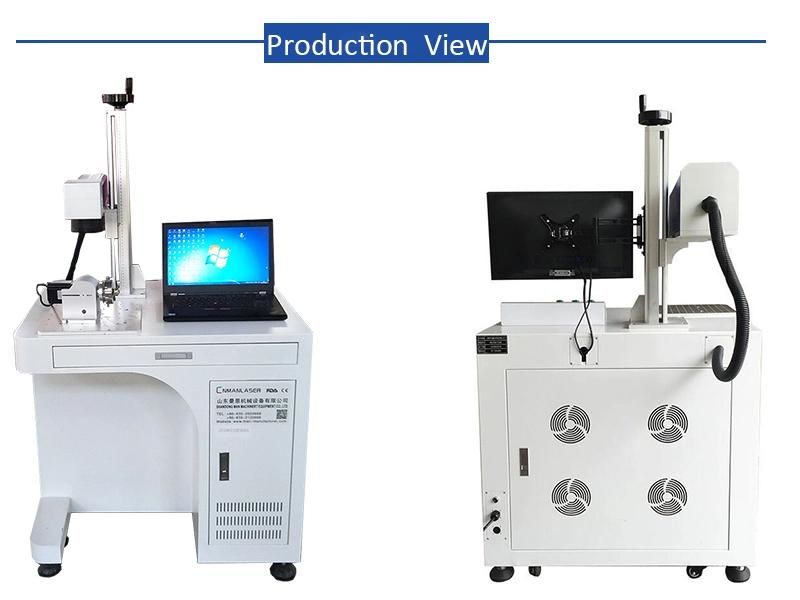

IMAGES  DETAILS :

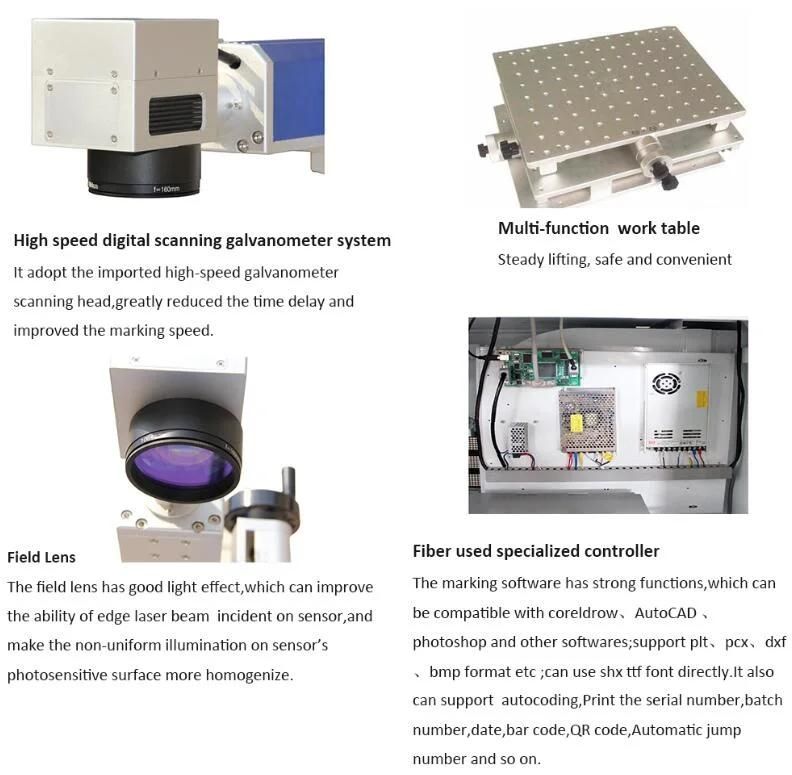

Standard  Laser Parts :

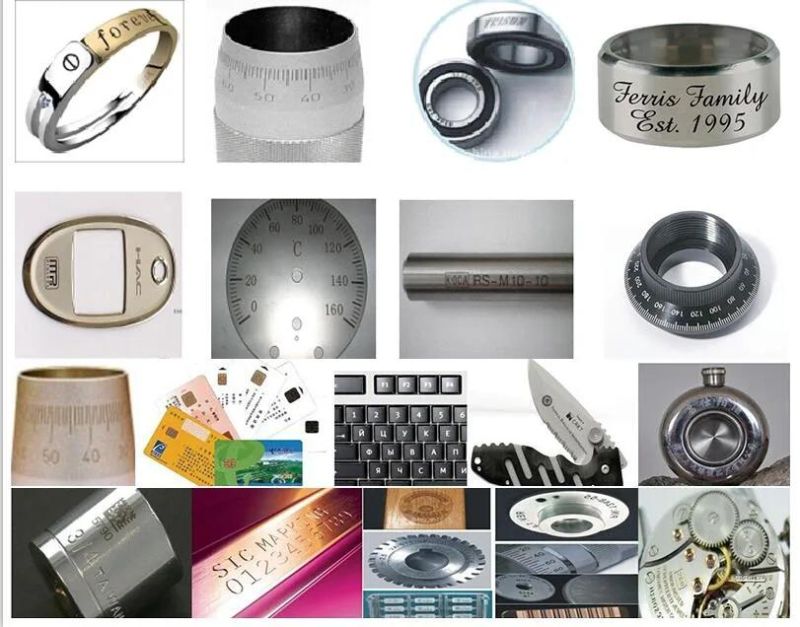

 SAMPLE SHOW :



ABOUT SHIIPMENT :

Packing :

We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .

Different machines package will different . we supply standard export wooden box ,carton box package .

if big machine and production line machine it will be loaded in the container directly

Delivery :

1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time .

Finally , send all origin documents to you by Express for free .

2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number

3.Delivery to the warehouse which you reques . Will tell you logistic or express tracking number

FAQ :

How about the package and delivery?

1. 5-7 working days after receiving the payment.

2. There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking,solid export wooden case.

*How about the warranty and after-sales service:

1. 3  years for laser source, two years for all other parts.

2. 24 hours technical support by email or calling.

3. Free training for installation and operation.

*How to install and use this laser marking machine?

The machine is already installed before shipping. We have very detailed English manual for laser system and laser marking software,

nearly all customers can learn by themselves very easily.We will also guide you if you have any doubts.

*What if there is something wrong with laser marking machine?

Pls contact us at first time and do not try to fix it by yourself.

*What do I need to know when I need a recommendation?

1. What materials you want to process with?( stainless steel, aluminum, wood, plastic...)

2. Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)

3. Do you need to mark on cylindrical or round surface?

4. Do u have size or weight of the product u need to marking on?

5. Do you buy for person use or selling?
