• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

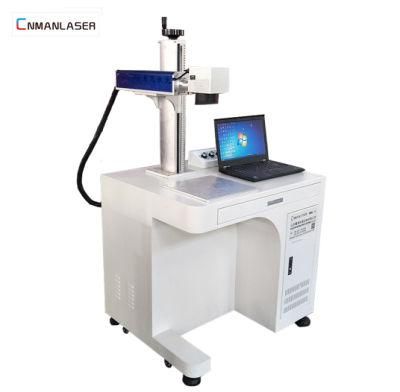

Leather Plastic Metal Fiber Laser Marking Machine / CNC Marker




  TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

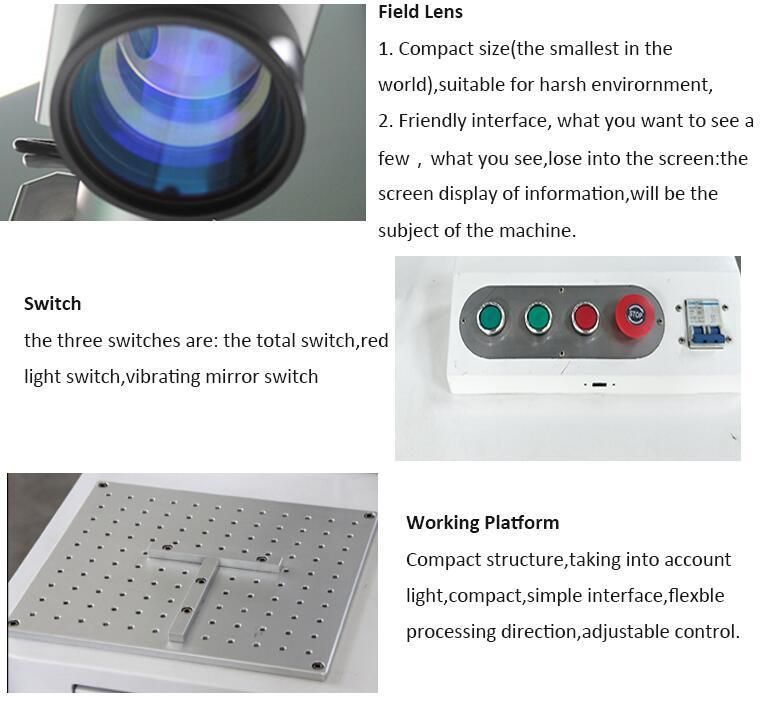

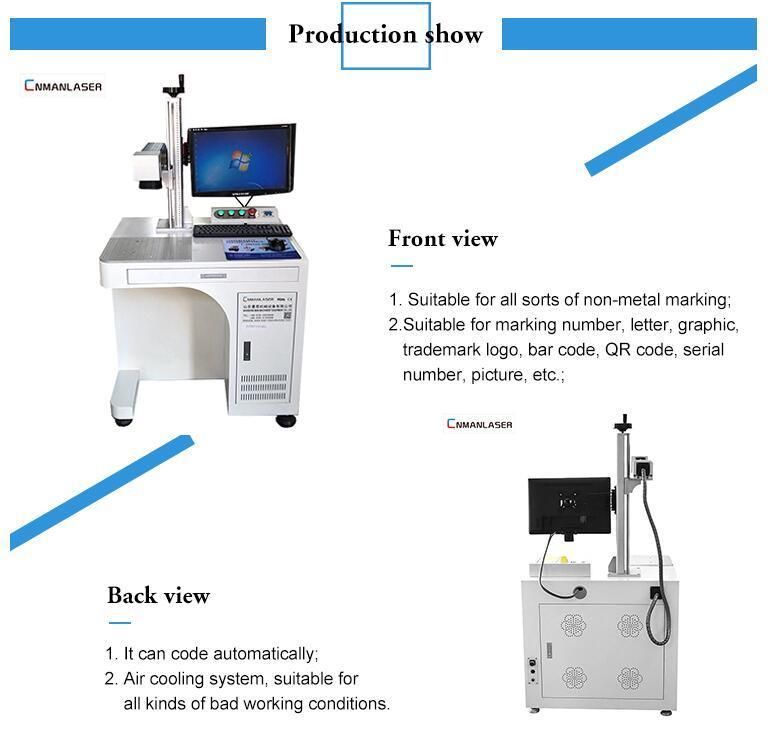

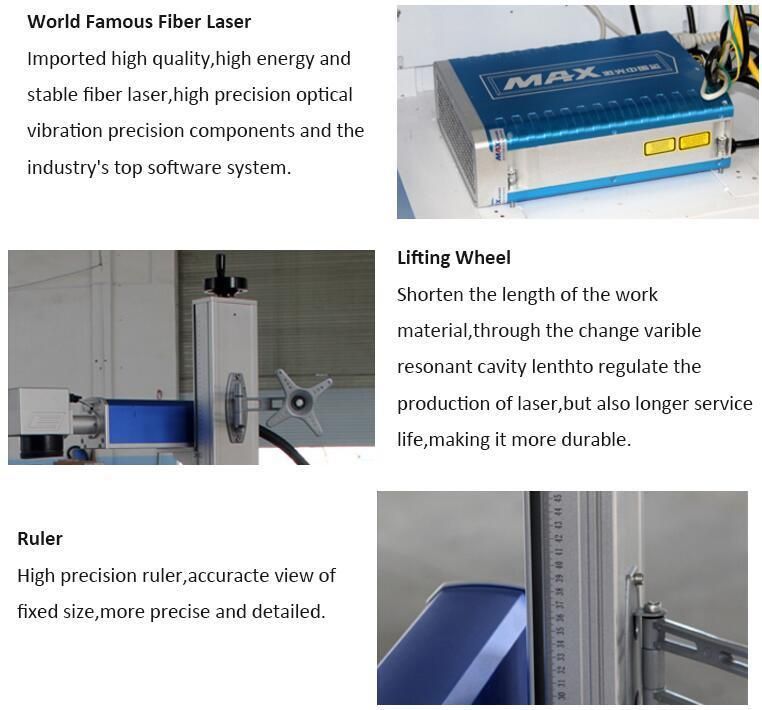

IMAGES  DETAILS :

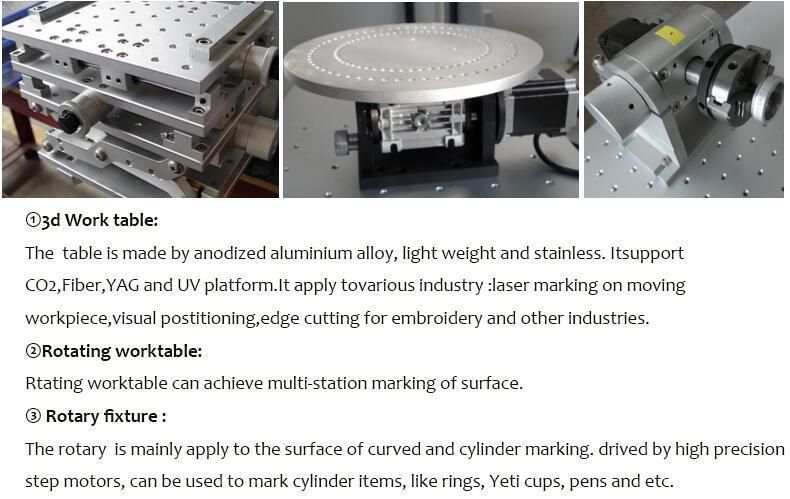

Optional Laser Parts : Packaging List :


 SAMPLE SHOW :

ABOUT SHIIPMENT :

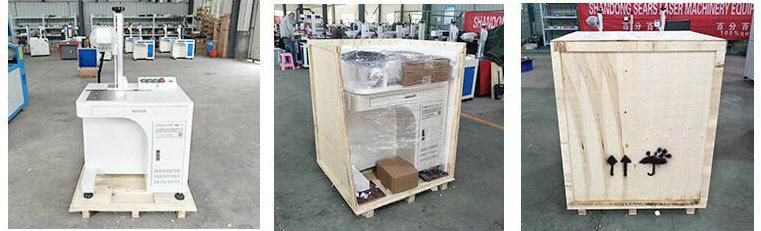

Packing :

We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .

Different machines package will different . we supply standard export wooden box ,carton box package .

if big machine and production line machine it will be loaded in the container directly

Delivery :

1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time .

Finally , send all origin documents to you by Express for free .

2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number

3.Delivery to the warehouse which you reques . Will tell you logistic or express tracking number

ABOUT SERVICES :

Payment terms

1,T/T   30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.

2,Western Union   Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.

3,L/C      We would like to talk details with you if you really need L/C payment terms.

Other payment terms,pls mention us.

Services :

1.3  years quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.24 hours on line service each day, free technical support.

5.Machine has been adjusted before delivery

FAQ :

Q: Is it easy to install and use the machine?

A: YES. Besides the operate manual, we will offer online or door-to-door training service on how to install and use the machine.

Q: What should I do if the machine has any problem in future?

A: You can always contact us whenever you have question,Through email/phone/Skype.

And we will serve you online or door-to-door as request.

Q: Can you design a machine for me depending on my requirements?

A: Please tell us the information of your product: processing material,size,production capacity, budget. We will supply you a solution.

Q: How can I choose the most suitable machine?

A: Please tell us below information, then we will recommend the most suitable machine for you:

    1.Please send us a picture of your sample product.

    2.What is the size of the material you want to cut/engrave? In roll or in piece?

    3.What is your budget?
