• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Max Raycus Ipg Fiber 20W 30W Laser Marking Machine Price




1. It is the third Generation laser marking system which is used the most advanced fiber laser technology.

2. Longest lifetime for marking machine series, 100000hours free of maintenance ,stable performance ,

high laser energy , can engraving on all the metal materials and some of nonmetal materials

3. Location by red light, testing and changing holder will be easier.

4. Adopt air cooling system and the size is small ,good quality of the laser beam, suitable for precise strips pattern marking.
  TECHNICAL  PARAMETER :

Laser Source	Fiber Laser
Output Power	50W30W/20w/ 10w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220v/50hz or 60hz

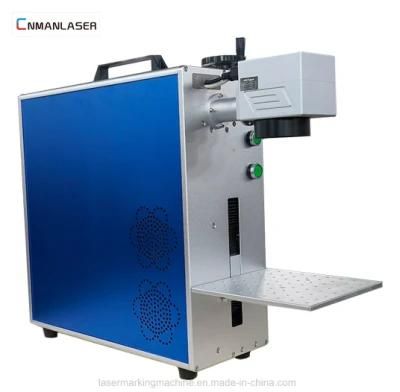

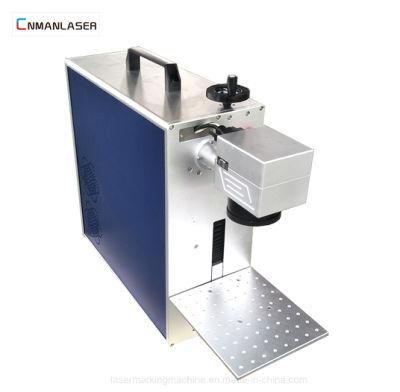

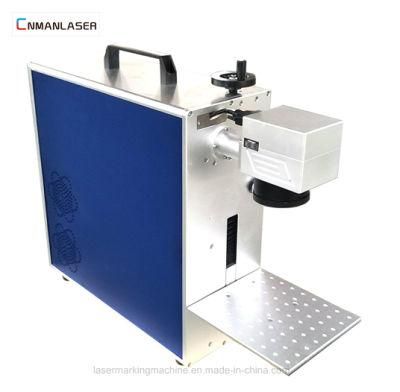

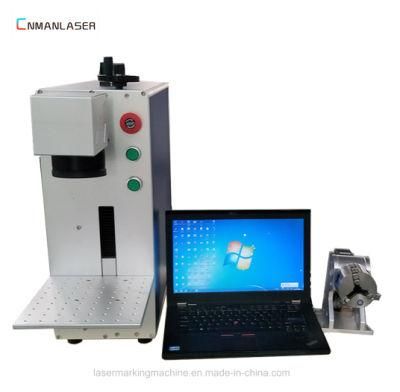

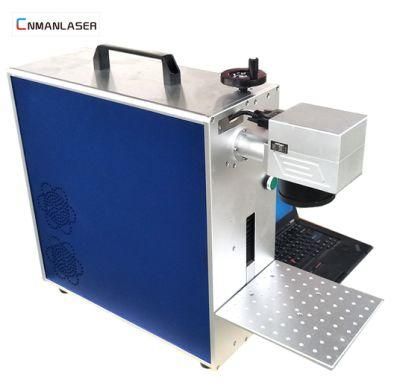

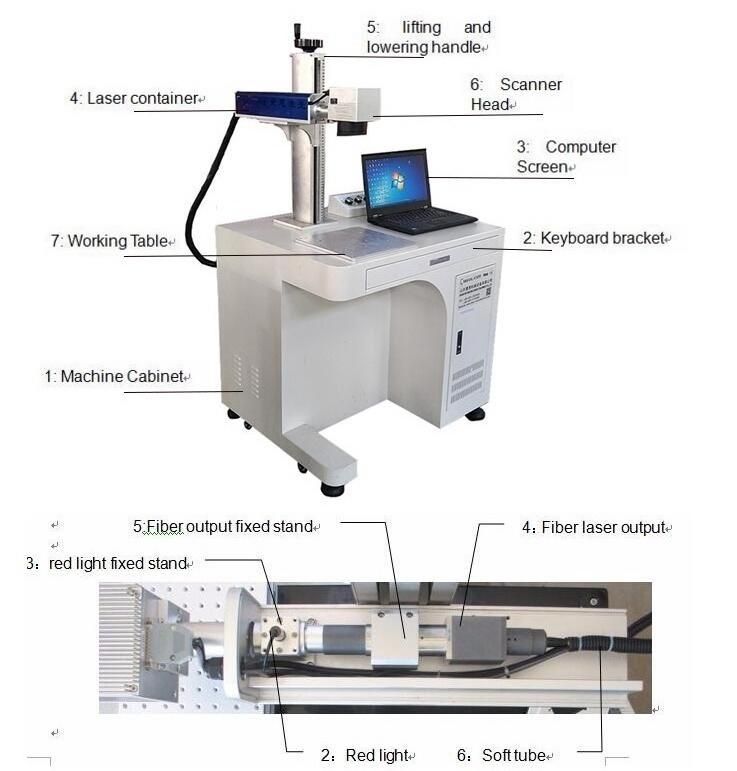

IMAGES  DETAILS :


1.Excellent beam quality

Redsail fiber laser marking machine beam quality than conventional solid-state laser marking  machine the output

of fundamental mode (TEMOO), focal spot diameter of 10 microns. The divergence angle is 1/4 of the diode-pumped lasers.

2.Use of low cost

The electro-optical conversion efficiency of up to 30% of the whole power consumption  is less than 300W,

lamp-pumped laser marking machine 1/10,  significant savings in energy  costs.

3.Maintenance-free operation

Lasers without any maintenance, do not have high adjustment or cleaning the lens.

4.Long life

Using a laser diode as a pump source, the average working time of 10 million hours.

5.Processing speed

The processing speed is traditional marking machine 2-5 times.

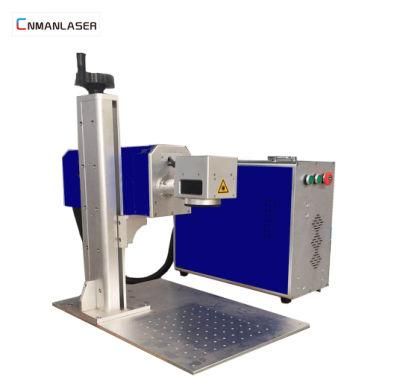

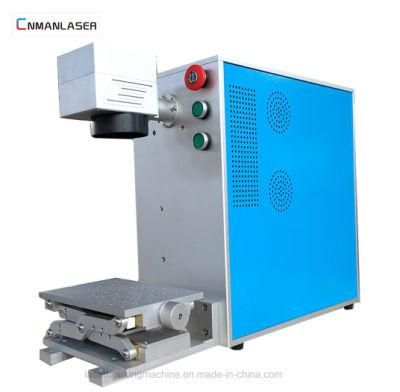

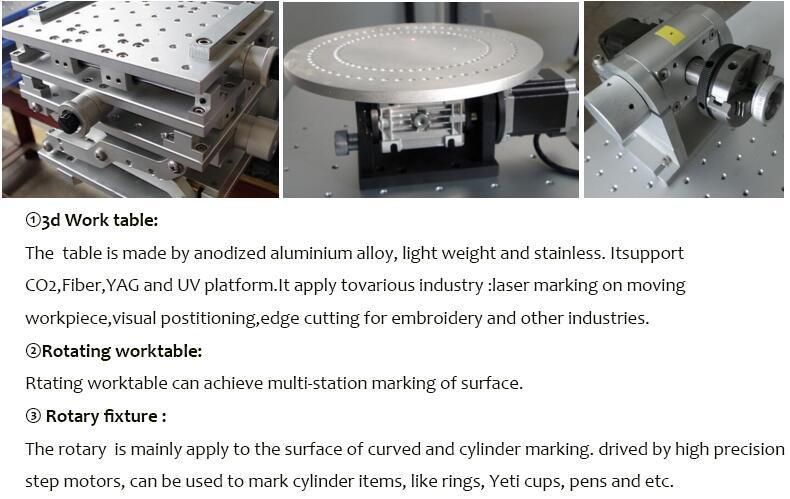

Optional Laser Parts : Packaging List :


 SAMPLE SHOW :

ABOUT SHIIPMENT :

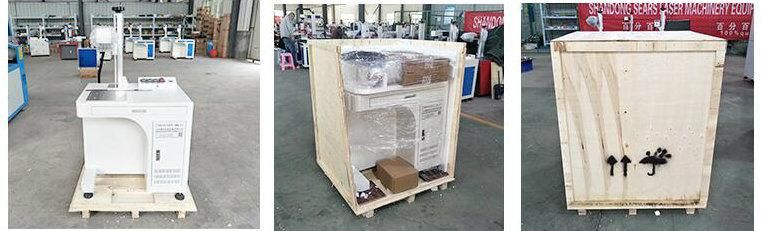

Packing :

We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .

Different machines package will different . we supply standard export wooden box ,carton box package .

if big machine and production line machine it will be loaded in the container directly

Delivery :

1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time .

Finally , send all origin documents to you by Express for free .

2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number

3.Delivery to the warehouse which you reques . Will tell you logistic or express tracking number

ABOUT SERVICES :

Payment terms

1,T/T   30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.

2,Western Union   Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.

3,L/C      We would like to talk details with you if you really need L/C payment terms.

Other payment terms,pls mention us.

Pre-sale Service:

1. We will provide you with relevant technical support and product industry information within half a working day.

2. Welcome you at any time to visit our company site visits, we will provide you with free samples and other related facilities.

3. Factory direct sales, customized any models.

Sale Service:

1. Conventional models, the order is shipped. Customized models: the single production, 1 to 5 working days of delivery.

2. Hand in charge of the whole process to pay the entire process, the service is also productivity.

3. Free installation, commissioning and operation, maintenance
