• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Optical Desktop Fiber Laser Marking Machine Price for Metal Nonmetal

 PRODUCTION :

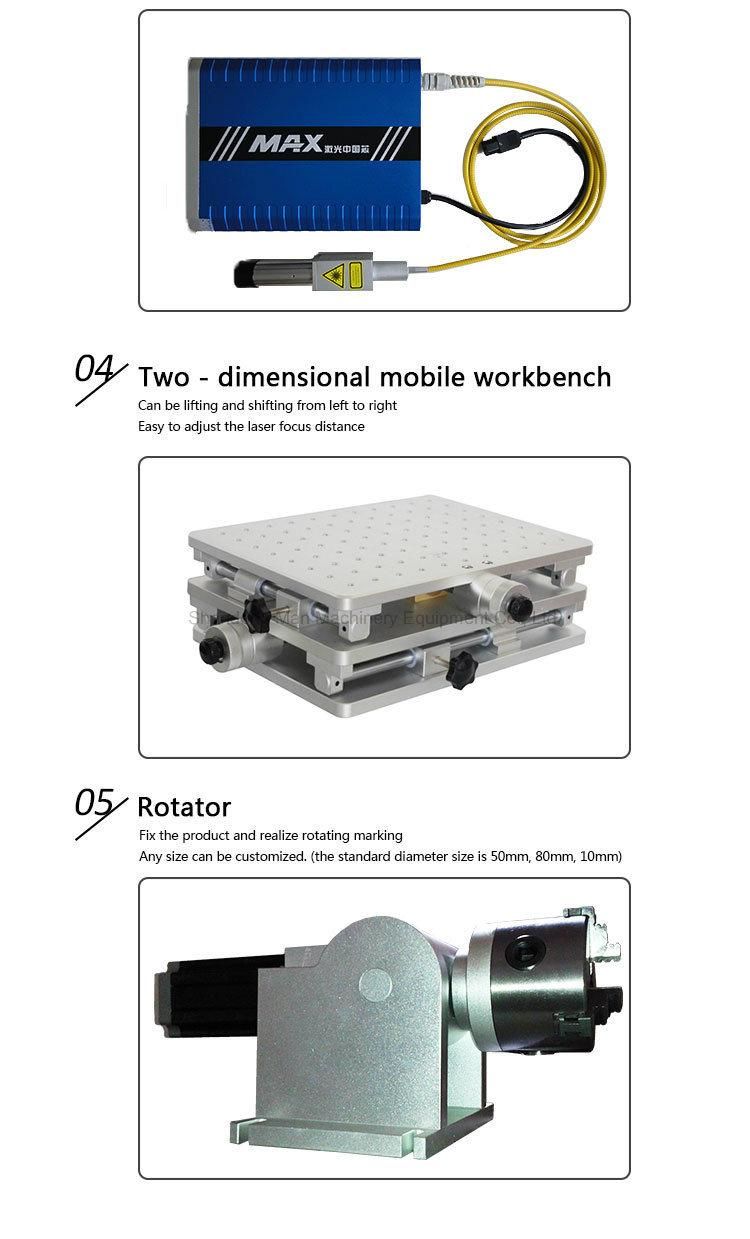

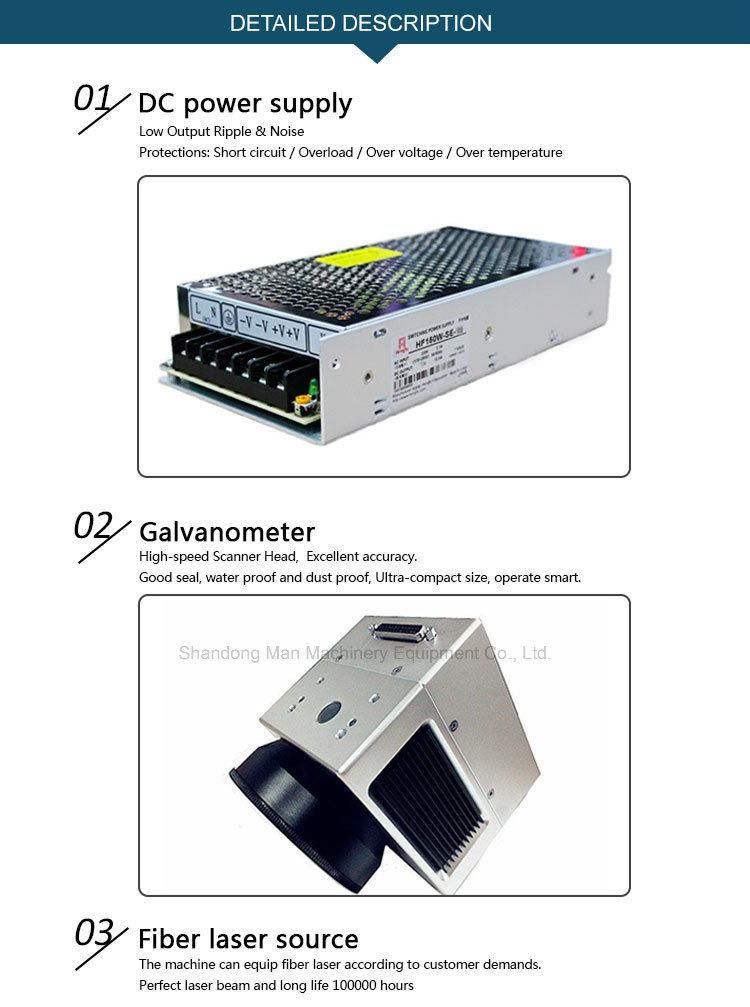

Configuration List For Laser Machine :

Benefits

1. Can mark all metals, many plastics and some ceramics.

2. Higher output power, excellent beam quality.

3. Longer pulse width equals more energy for deep engraving in metals.

4. Pulse energy and pulse peak power are independent of repetition rate.

5. Excellent pointing stability, outstanding marking performance.

Advantage :

1. 100,000 hours lifetime, compact design.

2. High speed 7000/s.

3. metal laser engraver adopting the imported original IPG fiber laser from Germany. Domestic source is optional.

4. Laser beam quality of metal laser engraver is much better than traditional solid laser marking machine.

5. Imported galvanometer scanning system which makes the optical model nice and beam quality is excellent.

Also without any problem even marking fast.

6. Humanized design, easy to operate.

7. Processing speed is 3 or 5 times faster than traditional marker.

 8. Laptop control.

 TECHNICAL  PARAMETER :


Laser power	Fiber laser
Working area	110*110mm/200*200mm/300*300mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	EZCAD control software or laser2.1 marking control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Supply Voltage	220V/50Hz/10A

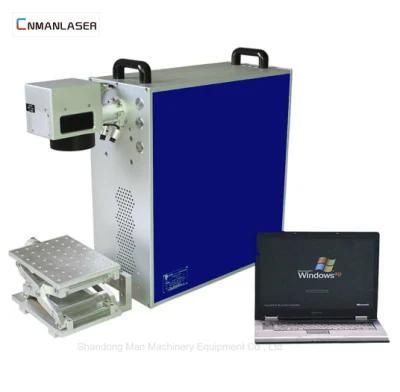

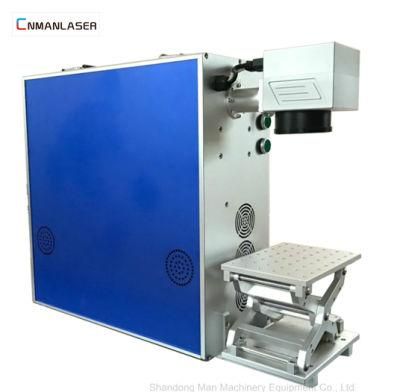

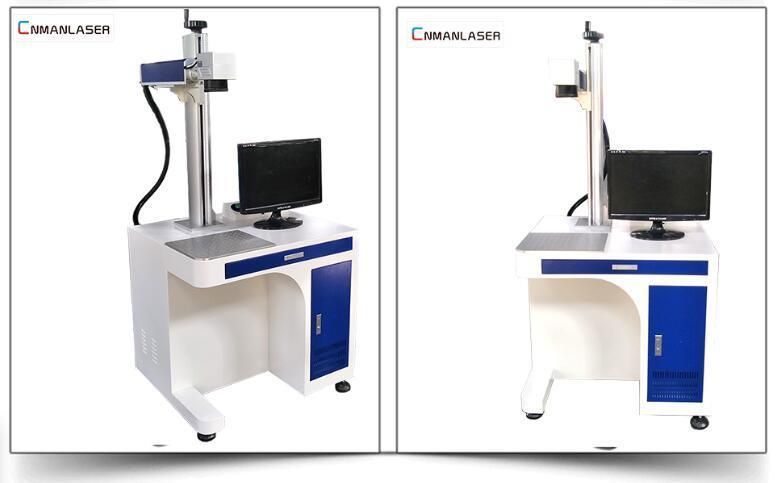

IMAGES DETAILS :

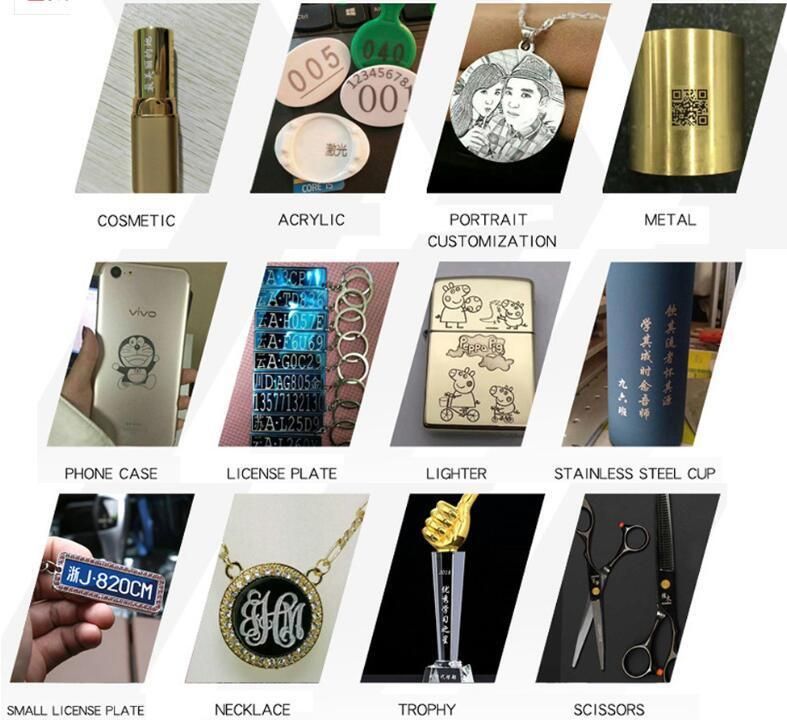

 SAMPLE SHOW :

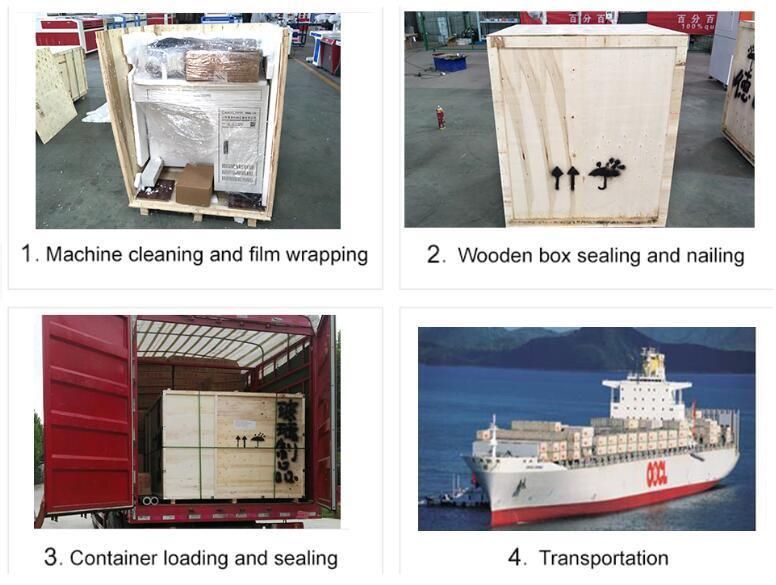

PACKAGING &  SHIPPING :

1.) FOB Qingdao

If other port needed, please tell me in advance.

 2.) CIF your port

Please tell me your destination port in advance. We could send machine to your country port directly,

Please tell us your port name. There will be best shipping freight and machine price send to you.

 3.) If you need others, please tell me and we're pleased to do it for you.

3. ) Shipping :

1.This laser marking machine will packed intostandard plywood case, its compressive strength and bearing quality is better.

2.the board area is bit,structure is good,  it is better in leakproofness and waterproof.

3.Shipping is by sea,by train,by truck,by air.


FAQ   :

1. Payment term:

1)T/T ,means international bank transfer.30% deposit , we produce the machine for you. 70% before shipping .It is convenient and fast .

2)Alibaba Trade assurance .Reliable and safe, Alibaba will charge a little handling fee.

3)Paypal, pay 100% to Paypal, Paypal will protect your right and charge 4% handling fee.

4.)West union.

2.Have you export this machine before ?

We have been in this field for 14 years,we have CE,ISO,certificates,have exported

to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

3.Is this laser marking machine to operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

4.What's the MOQ for this machine ?

1 set machine, mixed order is also welcomed.
