• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

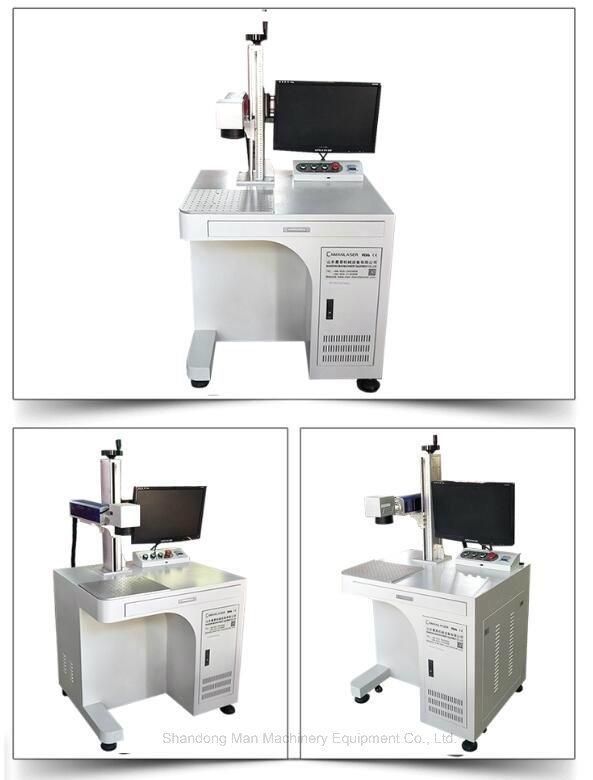

20W 30W  Automatic Laser Marking Machine on Metal Ear Tag Plastic

 PRODUCTION :



Configuration List For Laser Machine :

1. What material do you apply to for the marking? What is the marking content? for graphic or text?

2.What about the requirement of marking length,depth and acuracy?

3.Marking area? 110*110mm,200*200mm,300*300mm or others

4. If you want see the real marking effect,you could send your materials to us, we mark your materials according to your requirements.

 TECHNICAL  PARAMETER :


Laser power	Fiber laser
Working area	110*110mm/200*200mm/300*300mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	EZCAD control software or laser2.1 marking control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Supply Voltage	220V/50Hz/10A

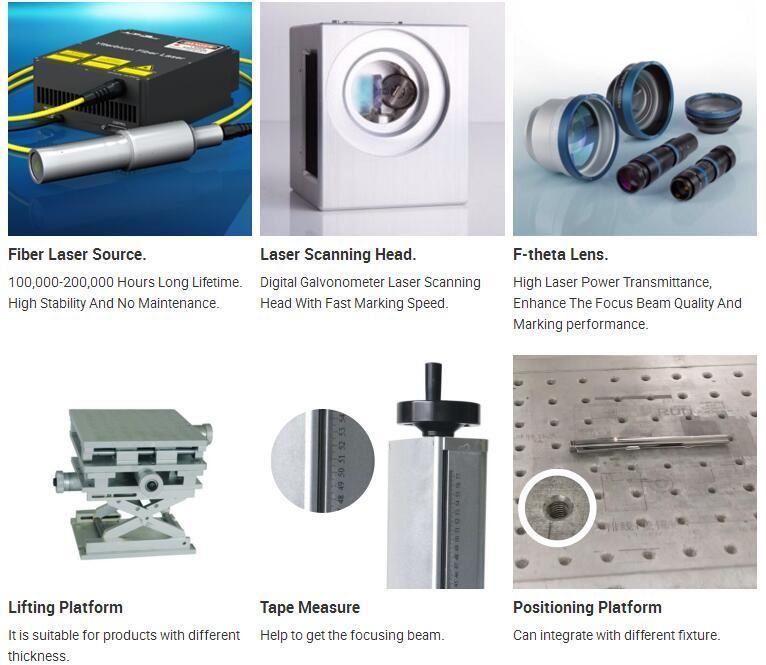

IMAGES DETAILS :

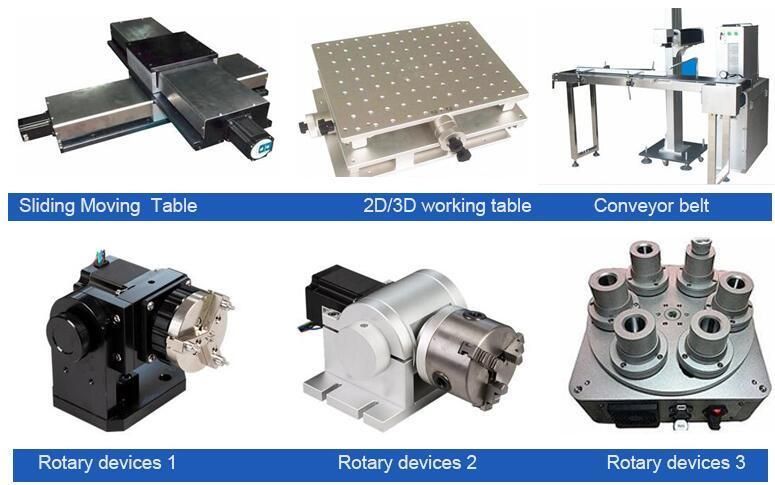

Optional  Laser Parts For Laser Machine :

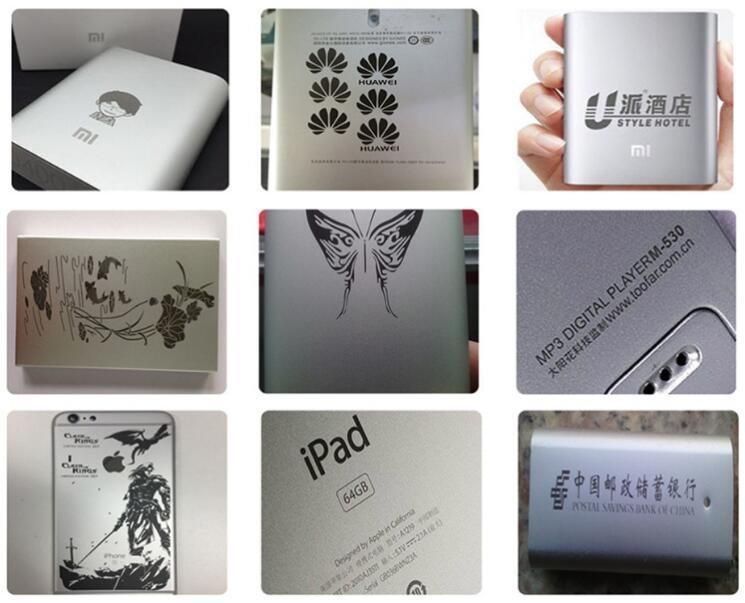

  SAMPLE SHOW :

Applicable materials:

it is suitable for marking all metal materials and most of non-metal materials.

It is widely applied to many industries, such as Electronics, Auto parts & hardware, handcrafts, packing and so on.

l Electronic and communication products, IC products, electric lines, cable computer components and electric appliances.

l Automobile and motorcycle parts, instrumentation, aerospace, military products, hardware machinery, medical instruments.

l Handicrafts, Jewelry, garments, glasses, instruments, gifts, office devices, brand scutcheon, sanitary ware appliances and other workpieces.



PACKAGING &  SHIPPING :

1.) FOB Qingdao

If other port needed, please tell me in advance.

 2.) CIF your port

Please tell me your destination port in advance. We could send machine to your country port directly,

Please tell us your port name. There will be best shipping freight and machine price send to you.

 3.) If you need others, please tell me and we're pleased to do it for you.



SERVICES   :

1.3  years warranty. Machine part can be changed for free if the machine part is broke.

2. Lifetime maintenance free of charge.

3. Free training course at our factory.

4.We will provide the consumable parts at an agency price when you need replacement.

5. 24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery. we will take machine photos and make machine working videos for you,

after getting your agreement ,then we will book a  ship.

7.Providing technical services to the door (we have professional engineers to offer machine installment on connissioning and maintenance)

8.If you have any problem during your use, you need our technician to judge where the problem is and help you to solve it.

we can provide team viewer and skype to help you.
