• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

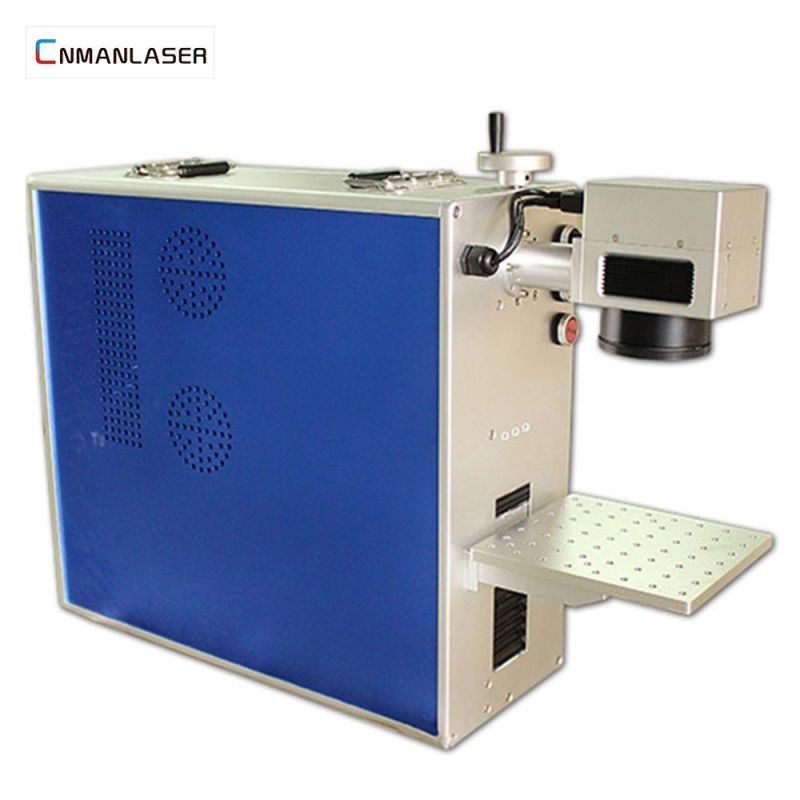

Stainless Steel Aluminum 20W 30W Desk Model Fiber Laser Marker


  PRODUCTION :


  TECHNICAL  PARAMETER :


Laser Type	Fiber Laser
Laser Power	10w / 20w
Total Power	500w
Marking Speed	≤8000mm/s
Laser Wave Length	1064nm
Marking Depth	0.05~0.5 mm (According to the material)
Minimum Line width	0.01mm
Minimum Character	0.1mm
Control Software	EzCad2.1
Graphic Format Supported	AI, PLT, DXF, BMP, DST
Marking Area	110*110mm
Galvo Scanner	USA or Germany made or China made optional
Laser Brand	Germany IPG fiber laser and China Raycus  laser optional
Voltage	220v / 110v
Power Supply Frequency	50Hz / 60Hz
Cooling Mode	Air Cooling
Package	Wooden Case, 70kg

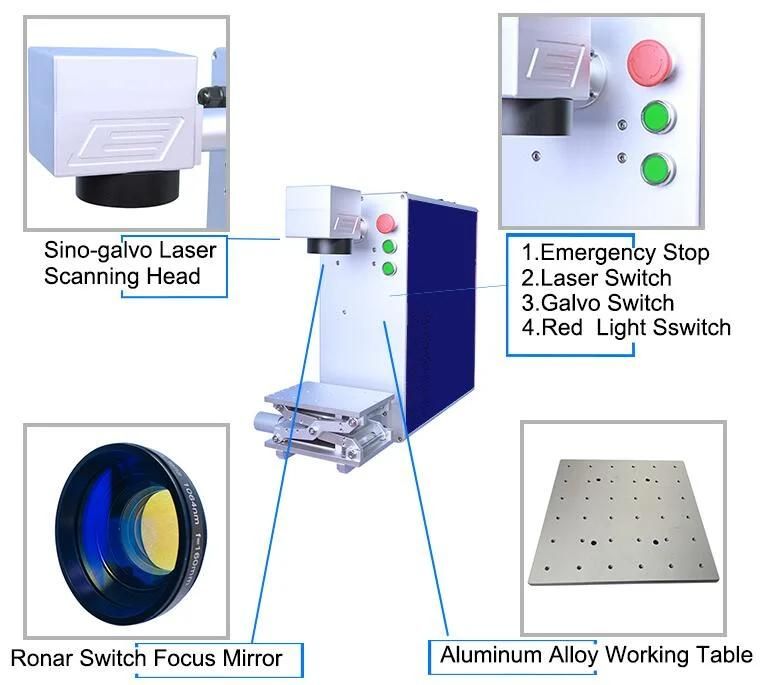

IMAGES DETAILS :



Optional laser parts for laser machine :

1. Rotary fixture :

rotary fixture is mainly apply to the surface of curved and cylinder marking.The general size of rotary fixture is 80-100mm,

if you have special needs,we can also customize according to your needs.

2. Goggles:    Reduce laser damage to eyes

3. 2D Working table:

X Y axis adjustable worktable can achieve very small position movement of workpiece via adjust the worktable.

So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the

worktable by X and Y axis's handle

4. Rotating worktable:  Rotating worktable can achieve multi-station marking of surface

 SAMPLE SHOW :



  PACKAGING &  SHIPPING :

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. We can arrange shipment by sea. Minium CBM requirement : 1 CBM


Item	Quantity
Fiber laser marking machine	1 set
English product technical certification	1Pcs
CD with EZCAD control program	1Pcs
Foot switch	1Pcs
USB flash disk	1Pcs
Power cord	1Pcs
Inner hexagon wrench	1Pcs
Ruler	1Pcs

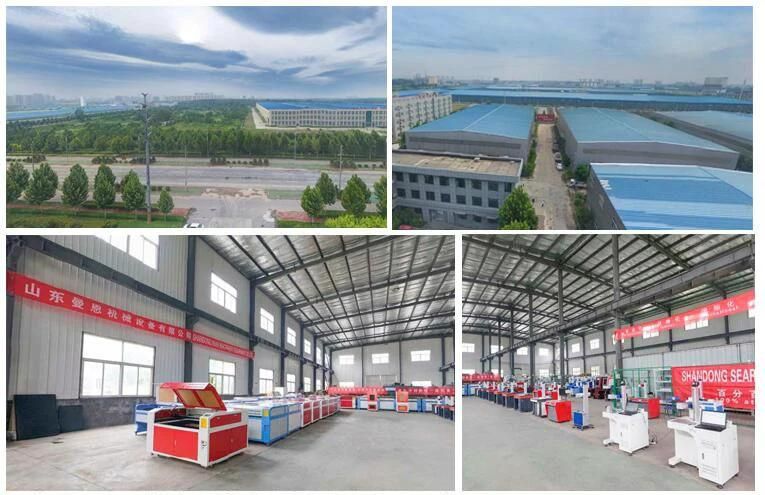

 Company Information :

Shandong Man Machinery Equipment  Co.,Ltd. is a industiral machine manufacture.

By far,our machines have seen sold to all round the world , Nowadays, more and more factories and distributors choose us,

because they realized good reliable quality with reasonable prices is the basic of long-term business.



Our products  services :

Pre-sale service

 * Free sample marking

For free sample testing, please send us your file, we will do marking here and make video to show you the effect,

or send sample to you for checking quality.

*Customized machine design

According to customer's application, we may revise our machine accordingly for customer's convenience and

high production efficiency.

 After-sale Service

*Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.

    * If you have problems while using, 24hours online professional advice available.

    *Lifetime software free upgrades.

    * Fiber laser source we warranty for 3 years ,the other parts warranty for 2 years.
