• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Aluminum Gold Silver Fiber Laser Marking Equipment / CNC Machine

 PRODUCTION :



Configuration List For Laser Machine :

1-Lifting Handle

2-Lifting Shaft: 48cm for 110mm x 110mm, 150mm x150mm,  175mm x 175mm

200mm x 200mm working areas; 300mm x 300mm need to be lengened.

3-Laser Generator:  air cooling, enclosed metal fiber laser generator

4-rotary (optional)   5-Position platform: 2D platform   6-Laser Power   7- Monitor

8-Marking head: Field lens, high speed galvanometer. Fine marking, more quick and high reliability

9-Control Button: include Scanner power control button, Laser power control butten, Emergency stop.

10-Keyboard   11-Host

Advantage :

1. Can mark all metals, many plastics and some ceramics.

2. Higher output power, excellent beam quality.

3. Longer pulse width equals more energy for deep engraving in metals.

4. Pulse energy and pulse peak power are independent of repetition rate.

5. Excellent pointing stability, outstanding marking performance.

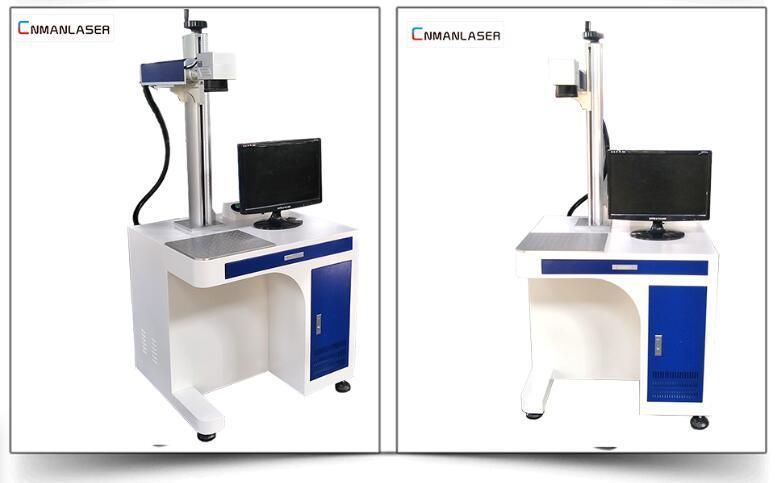

IMAGES DETAILS :



 TECHNICAL  PARAMETER :


Laser Power	20W,30W, 50W
Wavelenth	1064nm
Standard Marking Area:	110mm*110mm
Optional Marking Area:	150mm*150mm,200mm*200mm,300*300mm
Marking Speed	≤3000mm/s
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.5Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.5kw
Operational Temp Range	10-40C
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	3 years on laser source

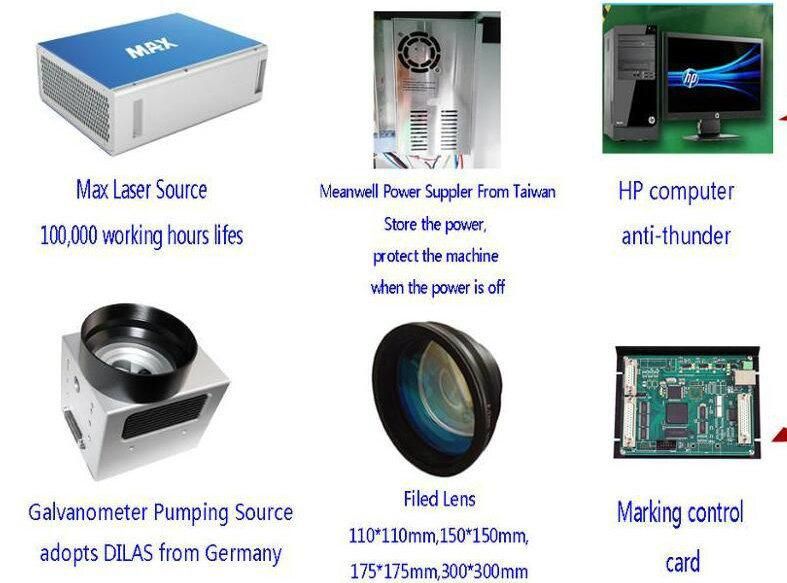

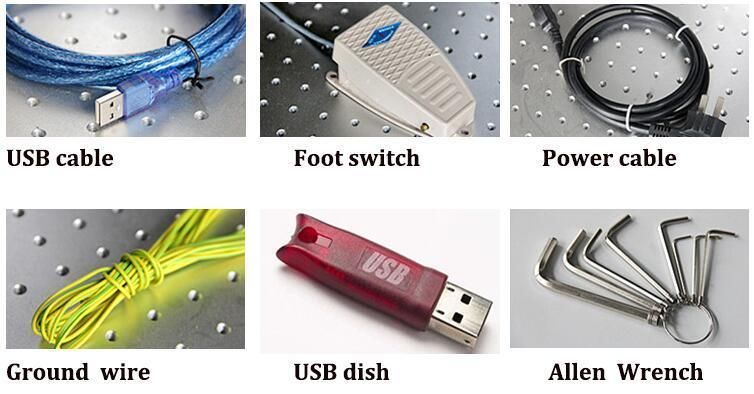

 Standard Laser Parts For Laser Machine  :


Attention:

1. when you want to mark logo size 300*300mm, you need to higher platform to 800mm.

2. rotary for marking round materials like: ring

3. outside red light, light, protection cover ect optional.

4. 3 years warranty and technician online help you solve problems.

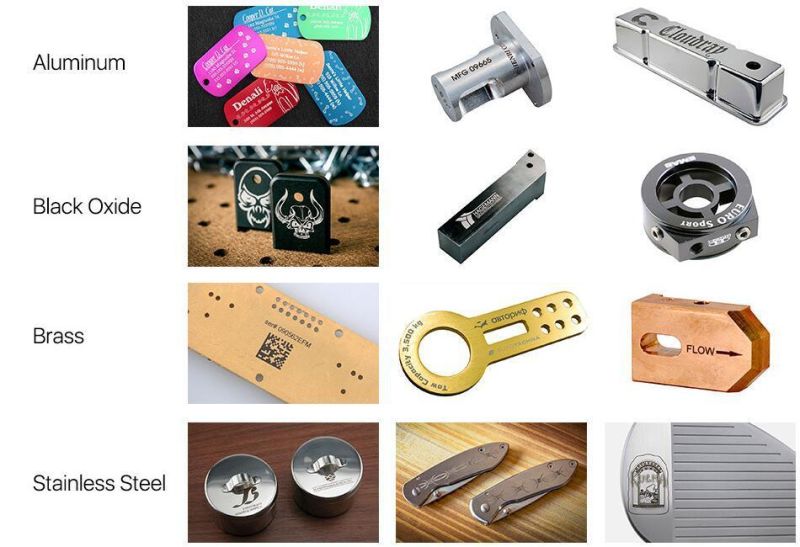

  SAMPLE SHOW :



PACKAGING &  SHIPPING :



ABOUT US   :

1. Payment term:

1)T/T ,means international bank transfer.30% deposit , we produce the machine for you. 70% before shipping .It is convenient and fast .

2)Alibaba Trade assurance .Reliable and safe, Alibaba will charge a little handling fee.

3)Paypal, pay 100% to Paypal, Paypal will protect your right and charge 4% handling fee.

4.)West union.

--Pre-Sales Service

Free Pre-Sales Consulting / Free Sample Marking

We offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.

Free Sample Making is available.

Free Sample Testing is available.

We offer progressing solution design to all the distributor and users.

---After sale service

1. 3 year guarantee for main machine (People damaged are charged).

2. Full technical support by e-mail, call and video

3. Lifelong maintenance and spare parts supply.

4. Free design of fixtures as customers required.

5. Free training installation and operation for the staffs.
