• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

20W 30W Fiber Laser Machine Price with Ezcad / Laser Manufacturer


  PRODUCTION :



Laser Marker Characteristic:

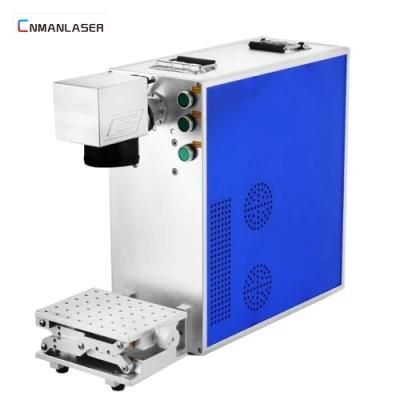

01. Mini Fiber Laser Marking Machine with Scanlab Scan adopts the imported fiber laser

generator, high speed Galvo system to enable stable laser output and high quality laser mode.

This model Laser

02. Marking Equipment boasts for its fast marking speed, good marking effect and high

efficiency to meet the demand of mass production.

03. Furthermore Mini Fiber Laser Marking Machine also enjoys the advantage of easy

operation, low running cost, long-term trouble-free working and free from maintenance.

04. All these factors devote to its capacity to satisfy industrial production.

 TECHNICAL  PARAMETER :


Model	MAN-FC20W /MAN-FC30W
Laser power	10W/20W/30W
Color marking	Yes
Marking range	100x100mm/ 200x200mm/ 300x300mm
Q-frequency	20KHZ-80KHZ
Laser wavelength	1064nm
Divergence angle	0.3mard
Minimum line width	0.02mm
Minimum character	0.15mm
Marking depth	0-0.5mm
Engraving line speed	≤7000mm/s
Repeatability	+0.01mm
Laser beam quality	M2: 1.2-1.8
Marking format	Graphics, text, bar code, two-dimensional code, automatically mark the date, batch
Graphic format supported	Bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt etc
Working voltage	220V+10% 50HZ
Machine power	<0.5KW
Working humidity	5%-75% Non-condensate
Laser module life	>100000 hours

IMAGES DETAILS :

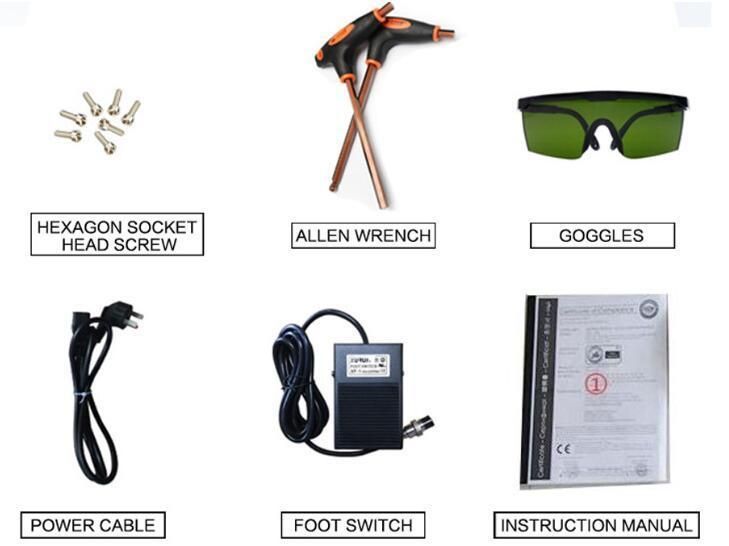

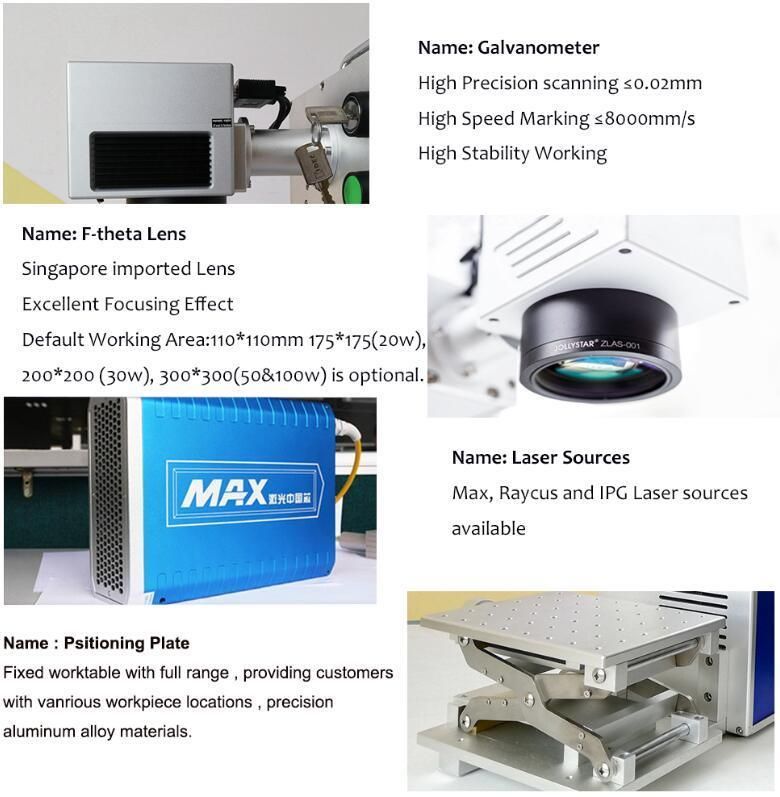

Standards  laser Parts for machine :



 SAMPLE SHOW :

Application materials

Metal and non-metal materials, high hard alloy, oxide, plating, ABS, Epoxy, and engineering plastic, etc.

Application industry

High precision product identification such as digital products, gold and silver jewelry, fittings,

measuring tool cutting tools, watches and glassware, electrical engineering and electric apparatus,

electronic components, hardware, plastic products, building materials and pipeline, etc



Services   :

1.Pre-sale services:

  Select equipment model;

  Design and manufacture products according to clients' special requiremet;

  Train technical personnel for clients.

2.Services during the sale:

  Pre-check and accept products ahead of delivery;

  Help clients to draft solving plans.

3.After-sale services:

  Provide considerate services to minimize clients' worries.

  Assist clients to prepare for the first construction scheme;

  Install and debug the equipment;

  Examine the equipment;

  Take initiative to eliminate the troubles rapidly;

  Provide perfect service;

  Provide technical exchanging.

PACKAGING &  SHIPPING :

Packing:  (1)Standard export packing plywood package

                (2)Both neutral and customized packaging can be available

Shipping:

 1). We ship to world wide

  2). Most orders ship within 1~7days after payment

 3). Item shipped from china mainland using airmail by EMS, DHL, TNT or Hong Kong post,

           we accept the customer's shipping request

4).100%T/T before shipment, after we shipped the goods, we will email you the shipping information

Delivery detail: with 7 days after confirmation of your order
