• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Raycus Ipg Max Fiber Laser Engraving Machine 10W 20W 30w

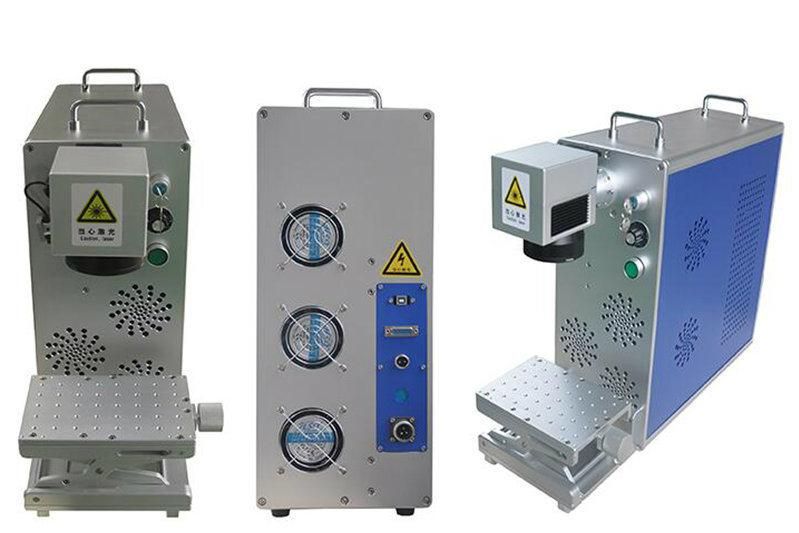

  PRODUCTION :


  TECHNICAL  PARAMETER :


Model	MAN-F20/ MAN-F30
Laser power	10W 20W 30W 50W
Laser source	MAX/ Raycus
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20KHZ ---- 100KHZ
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	110 * 110mm (optional)
Whole machine power	500w
Software	Win32bit+EZCAD marker system
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Weight	70kg
Dimensions	710*510*710mm
Packing	plywood wooden packaging

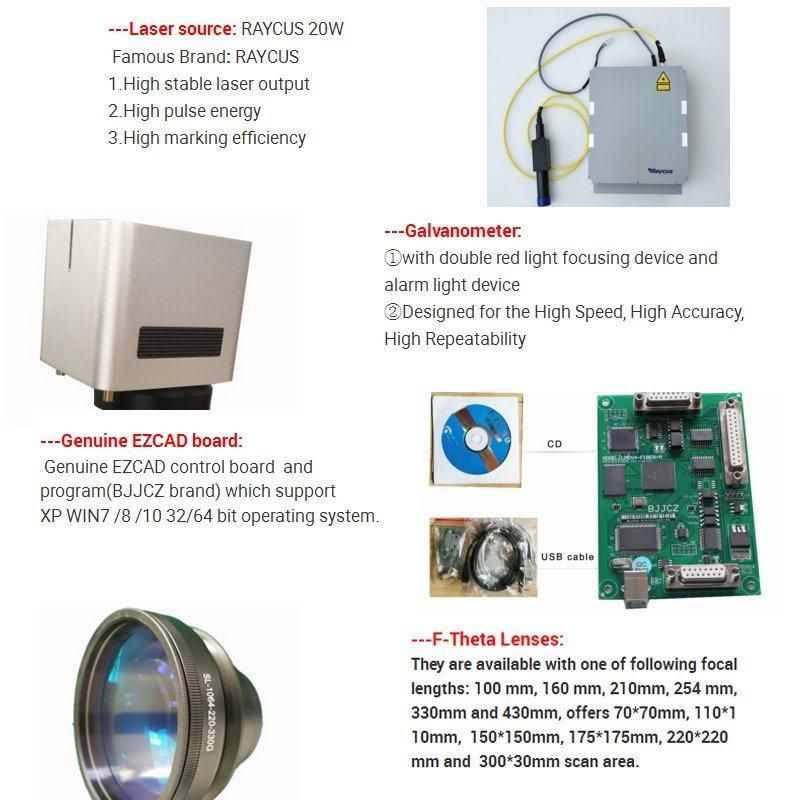

IMAGES DETAILS :

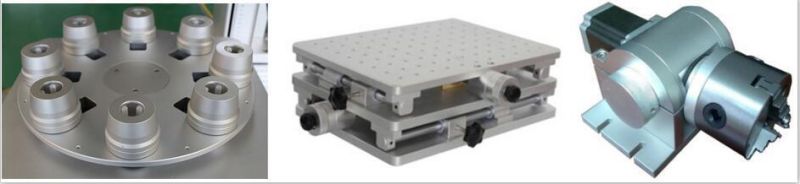

Optional laser parts for laser machine :

1. Rotary fixture :

rotary fixture is mainly apply to the surface of curved and cylinder marking.The general size of rotary fixture is 80-100mm,

if you have special needs,we can also customize according to your needs.

2. Goggles:    Reduce laser damage to eyes

3. 2D Working table:

X Y axis adjustable worktable can achieve very small position movement of workpiece via adjust the worktable.

So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the

worktable by X and Y axis's handle

4. Rotating worktable:  Rotating worktable can achieve multi-station marking of surface

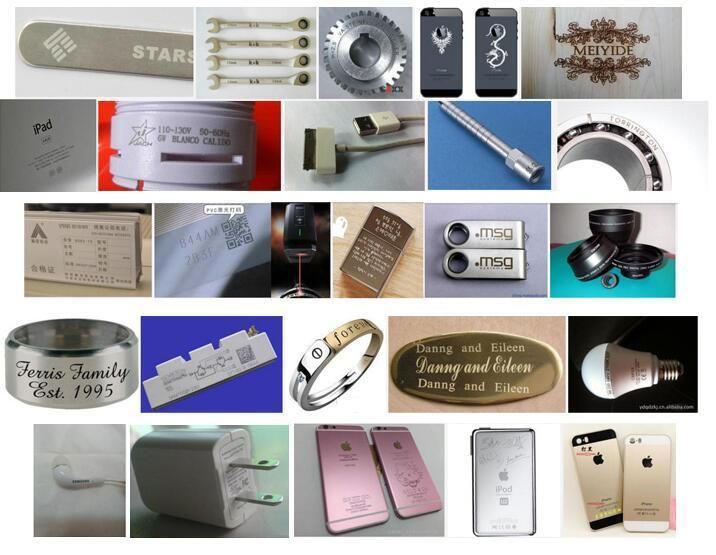

 SAMPLE SHOW :

  PACKAGING &  SHIPPING :

Packaging:

1.Our wooden case is after fumigation treatment. Needn't  timber inspection,saving shipping time.

2.All the spare parts of the machine were covered by some soft  materials, mainly using pearl wool.

avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,

make sure intact of the covered soft materials, also avoiding Waterproof and rust proof.

 3.The outmost is wooden case with fixed formwork

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

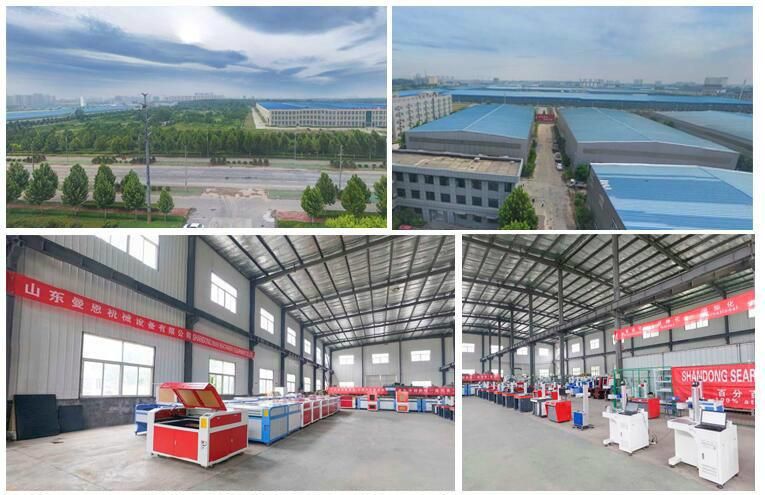

 Company Information :

Shandong Man Machinery Equipment  Co.,Ltd. is a industiral machine manufacture.

By far,our machines have seen sold to all round the world , Nowadays, more and more factories and distributors choose us,

because they realized good reliable quality with reasonable prices is the basic of long-term business.



Our products  services :

Laser Marking Machine

Laser Engraving Machine

Laser Cutting Machine

Fiber Laser Cutting Machine

Pre-sale service

1.The warranty for whole machine is effective 3  years from the Ex-Factory Date.

2. We will send you the spare parts and offer tech support for free during warranty when there is a machine fault, including the part fault.

3. We have 10-years experience engineer, could teach you how to use and maintenance the machine, and could keep contact any time.

4. Our tech is 24hours answer your question on trademanager if need .
