• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box

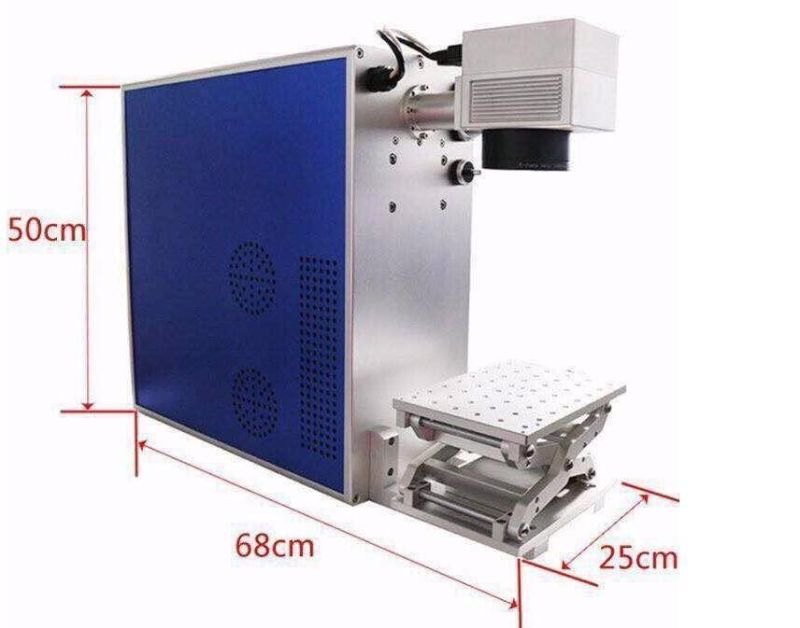

• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

 Portable Mopa Device 20W Stainless Steel Color Fiber Laser equipment

  PRODUCTION :


1. Laser Source( Raycus 20W/30W/50W/100W)

2. Scan Head (High speed scan head adopting Sino-galvoTechnology)

3 Field Lens (F160, F254, F290, F330, F420)

4. Operation System(WIN XP/7/8/10 English Version)

5. Marking Software(EZCAD, Engish Version)

  TECHNICAL  PARAMETER :


Laser Type	Fiber Laser
Laser Power	10w / 20w
Total Power	500w
Marking Speed	≤8000mm/s
Laser Wave Length	1064nm
Marking Depth	0.05~0.5 mm (According to the material)
Minimum Line width	0.01mm
Minimum Character	0.1mm
Control Software	EzCad2.1
Graphic Format Supported	AI, PLT, DXF, BMP, DST
Marking Area	110*110mm
Galvo Scanner	USA or Germany made or China made optional
Laser Brand	Germany IPG fiber laser and China Raycus  laser optional
Voltage	220v / 110v
Power Supply Frequency	50Hz / 60Hz
Cooling Mode	Air Cooling
Package	Wooden Case, 70kg

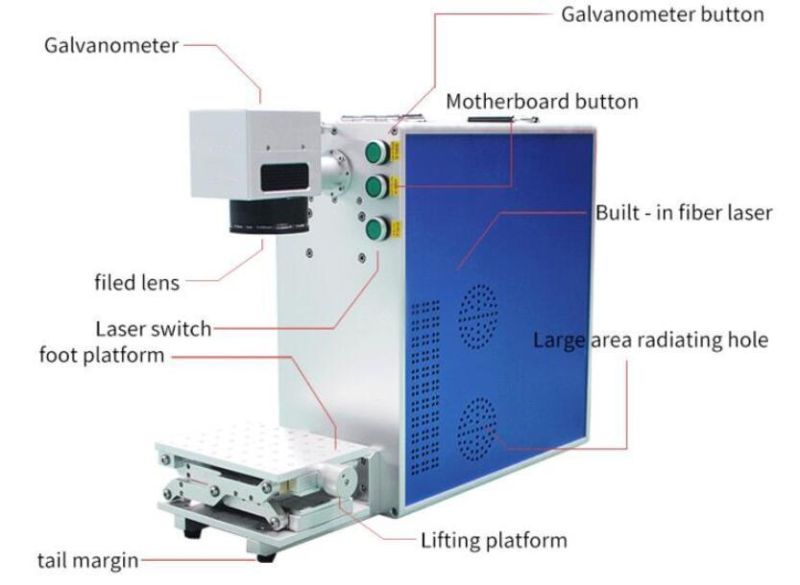

IMAGES DETAILS :


1. Pulse fiber laser source; long lifetime (100,000 hours/around 22 years if 12 hours' working time per day);

without consumables; cost effective

2. Professional and powful control system. It can mark logo, character, serial number, bar code and

data matrix on both metals and some non-metals. It can meet different marking requirements.

3. English operation interface with easy operation.

4. Fast marking speed; high marking precision

5. Permanent marking, won't be wiped out by sun or rain, convenient to trace.

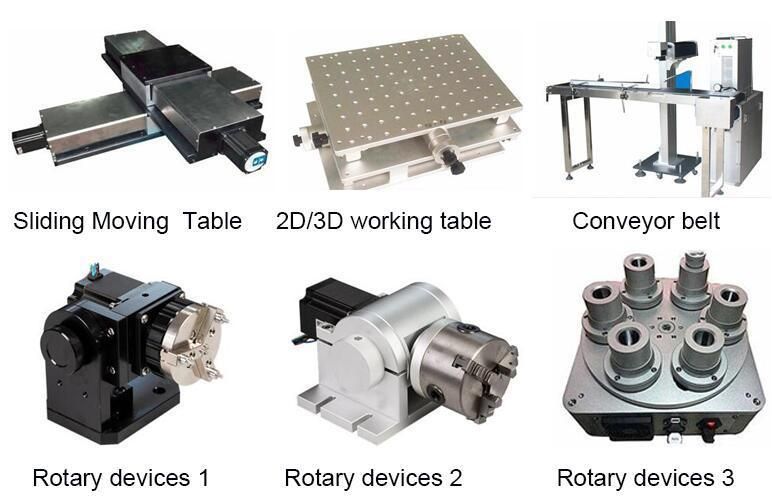

Optional Laser Parts for laser machine :


 SAMPLE SHOW :


  PACKAGING &  SHIPPING :

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. We can arrange shipment by sea. Minium CBM requirement : 1 CBM



 Company Information :

Shandong Man Machinery Equipment  Co.,Ltd. is a industiral machine manufacture.

By far,our machines have seen sold to all round the world , Nowadays, more and more factories and distributors choose us,

because they realized good reliable quality with reasonable prices is the basic of long-term business.

Our products as below:

Fiber laser marking machine;

UV laser marking machine;

Co2 laser marking machine;

Laser Engraving Machine

 Laser Cutting Machine

Our products  services :

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 3  year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.
