• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

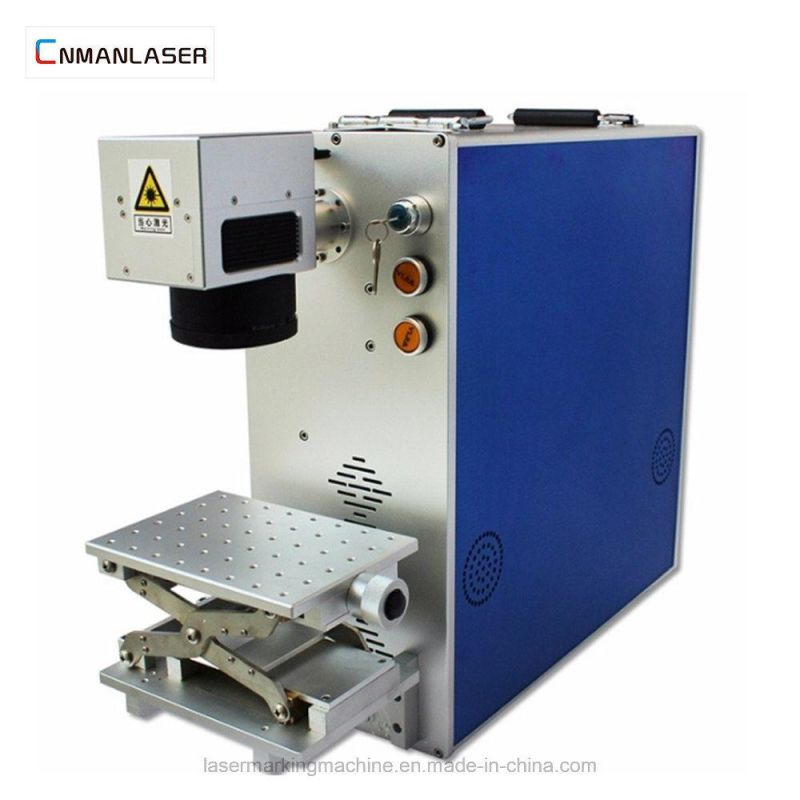

Factory Price 20W Fiber Marking Machine For Silver Gold  Bracelet

 PRODUCTION :
How to choose the fiber laser marking machine:

1. Marking material: metal, rare metal, plastic, wood, organic material etc

2. Marking area: 100x100mm, 150x150mm, 200x200mm, 300x300mm or 400x400mm, 500x500mm, 600x600mm

3. Machine type: Floor type, Desktop type, Portable type, Handheld type

4. Marking method: Flat surface marking, round marking, flying marking, round table marking, marking line
  TECHNICAL  PARAMETER :


Laser power	10W 20W 30W 50W
Laser wavelength	1064nm ±10nm
Q-frequency	20KHz~100KHz
Pules frequency	20KHz~200KHz
Divergence	0.3mard
Marking range	110*110mm/205*205mm/290*290mm
Minimum line width	0.001mm
Minimum character	0.1mm
Marking speed	10000mm/s
Marking depth	0~0.5mm
Engraving line speed	≤ 7000mm/s
Repeat accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking format	Graphics, text, bar code,two-dimensionai code,  automatically marking the date, batch number,  serial number, frequency,etc.
Graphic  format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working voltage	220V ± 10%/50HZ/4A
Unit power	<0.5KW
Use of the environment	Clean and dust free of dust less
Working condition:Humidity	5%-75%,Free of condensed water
Laser module life	>100000 hours

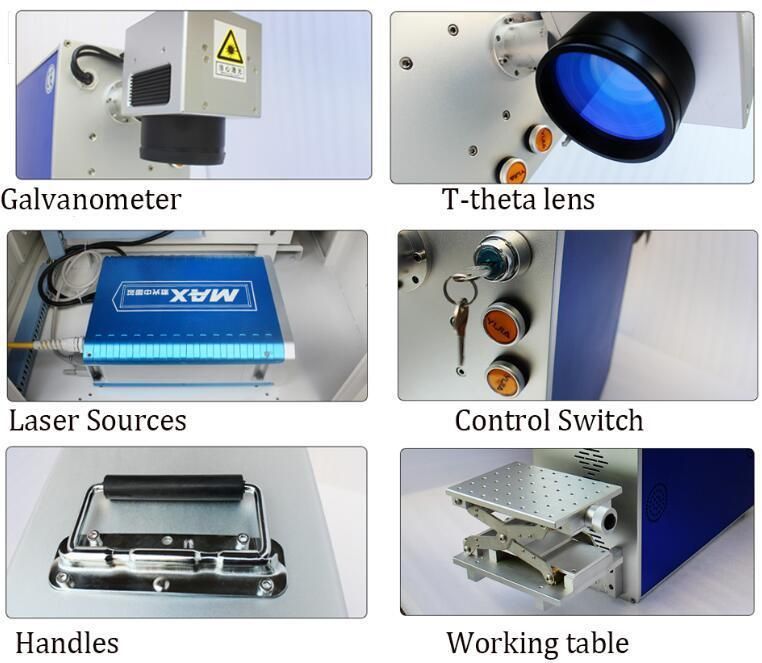

IMAGES DETAILS :



01. Raycus laser source.

The Raycus brand laser source has a normal working life of 100,000 hours.

The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm; the laser's overall 2-year warranty.

02. German importing scanner head.

Galvo head high speed galvanometer scan adoping SCANLAB technology,digital signal,high precision and Speed.

High quality laser scanning system makes the marking speed up to 7000mm/s.

03. Good quality F-theta lens.

Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.

04.Control Card

The text in the computer converted into analog signal or digital signal, such as design and the spread to the galvanometer

05. Lifting Handle Design

Shake Hand Wheel Laser focus distance can be adjusted easily

06. Switching Power Supply and Control System

Control system use famous Taiwan "MW" power supply with stable performance.professional

technology and long lifetime

07.Exhaust Fan

Adopts the heat generated by the air cooling system

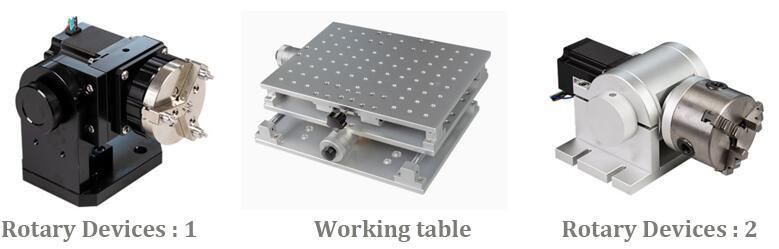

Optional Laser Parts :

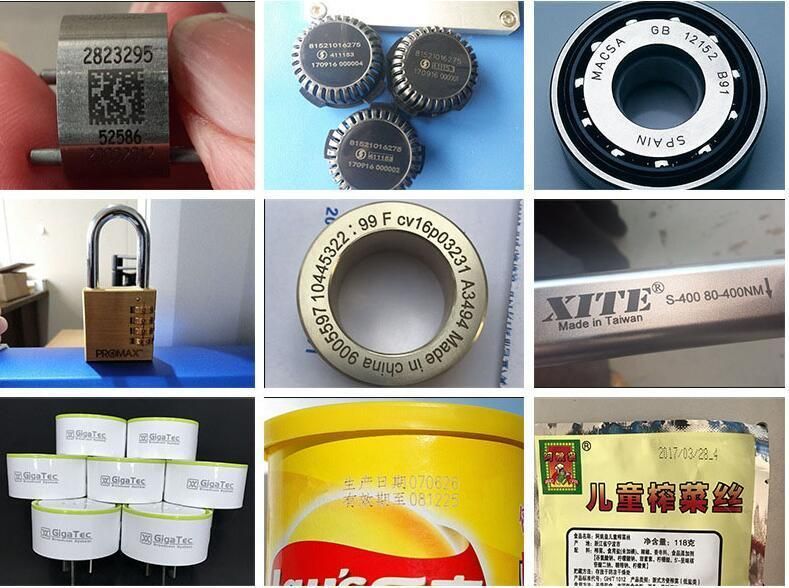

SAMPLE SHOW :

Applicable Industries:

Mainly applied to the higher marking precision such as mobile phones buttons,plastic translucent keys, electronic components,

integrated circuits (IC), electrical appliances, communication produgacts, sanitary ware, tools, accessories, knives, eyeglasses

and clocks, jewelry, auto parts, lugge buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials:

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber,

epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

PACKAGING &  SHIPPING :

Package details:

1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-15 days after received your payment .



ABOUT US :



FAQ  :

1) This is the first time I use this kind of machine, is it easy operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or skype.

2)Can you recommend a MACHINE to me,thanks?

Yes, In order to recommand you the suitable machine, please tell me the max working area, materials to do .

3) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

we will give you 24hours service from phone and skype.

4) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name.

There will be best shipping freight and machine price send to you

5)Payment terms

a. T/T in advance

b. L/C is acceptiable

c.West Union for Samller Amount

6)Delivery terms

Gnerally it will be be delivery within 5 working days after get the payment.
