• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Laser Marker / 30w Mini Marking Machine For Metal Non-Metal Logo

 PRODUCTION :



 How to choose the fiber laser marking machine:

1. Marking material: metal, rare metal, plastic, wood, organic material etc

2. Marking area: 100x100mm, 150x150mm, 200x200mm, 300x300mm or 400x400mm, 500x500mm, 600x600mm

3. Machine type: Floor type, Desktop type, Portable type, Handheld type

4. Marking method: Flat surface marking, round marking, flying marking, round table marking, marking line
  TECHNICAL  PARAMETER :


Laser power	10W 20W 30W 50W
Laser wavelength	1064nm ±10nm
Q-frequency	20KHz~100KHz
Pules frequency	20KHz~200KHz
Divergence	0.3mard
Marking range	110*110mm/205*205mm/290*290mm
Minimum line width	0.001mm
Minimum character	0.1mm
Marking speed	10000mm/s
Marking depth	0~0.5mm
Engraving line speed	≤ 7000mm/s
Repeat accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking format	Graphics, text, bar code,two-dimensionai code,  automatically marking the date, batch number,  serial number, frequency,etc.
Graphic  format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working voltage	220V ± 10%/50HZ/4A
Unit power	<0.5KW
Use of the environment	Clean and dust free of dust less
Working condition:Humidity	5%-75%,Free of condensed water
Laser module life	>100000 hours

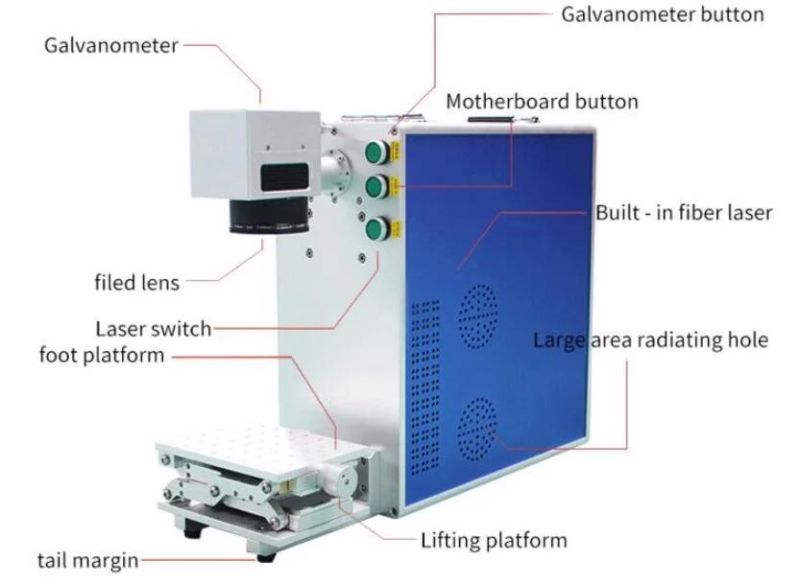

IMAGES DETAILS :

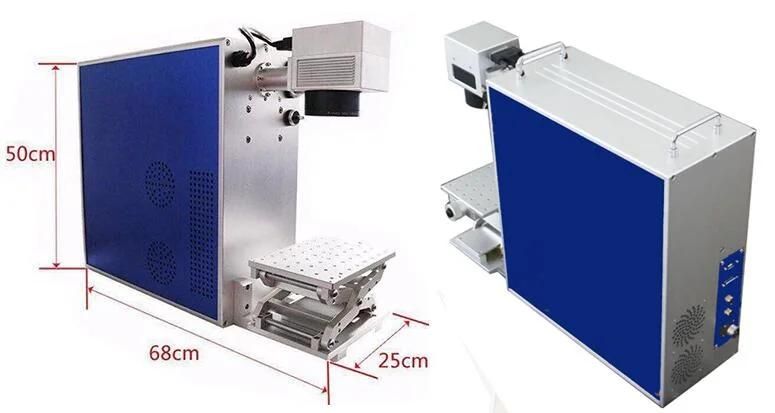

1) With small size and compact structure, the 20w fiber laser marking machine is convenient to move.

2) Long lifespan of fiber laser source: 100 000 hours

3) the 20w fiber laser marking machine has good scanning galvanometer, with good seal, small volume, compact.

4) good Scaps controller, USB interface, swift and stable transmission, the machine can work with a Laptop.

5) High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.

6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.

7) No Consumables: One aluminum laser engraving machine can work for more than 10 years without any consumables.

8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

9) The fiber laser beam no need to adjust the laser optical path.

10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.

11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG

laser, the aluminum laser engraving machine don't need maintenance.

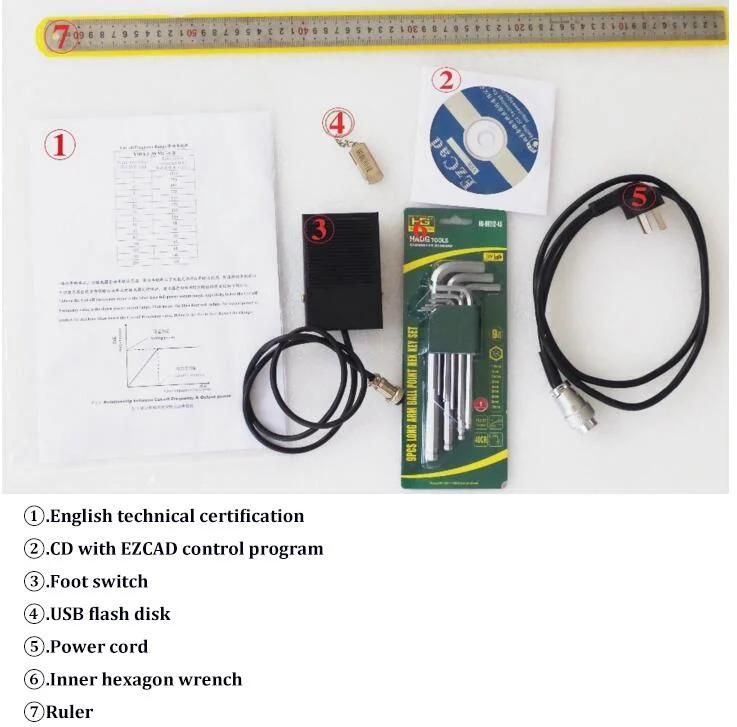

Standard  Laser Parts List :


SAMPLE SHOW :

ABOUT US :

We are professional on :

Fiber laser marking machine for metal and some nonmetal;

3D laser crystal inside engraving machine for crystal and glass;

Fiber laser metal cutting machine;

UV laser marking machine for glass, plastic, ceramic, metal and so on;

Co2 laser marking machine;

Factory profile:

We are the manufacturer, our price are more competitive.

We haave CE  FDA SGS certification , the quality haa be approved .

With 15years history on researching and producing all kind of laser machine

Our company welcomes AGENTS all over the world

FAQ  :

1) This is the first time I use this kind of machine, is it easy operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or skype.

2)Can you recommend a MACHINE to me,thanks?

Yes, In order to recommand you the suitable machine, please tell me the max working area, materials to do .

3) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

we will give you 24hours service from phone and skype.

4) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name.

There will be best shipping freight and machine price send to you

5)Payment terms

a. T/T in advance

b. L/C is acceptiable

c.West Union for Samller Amount

6)Delivery terms

Gnerally it will be be delivery within 5 working days after get the payment.
