• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：65*60*152 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 65*60*152 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

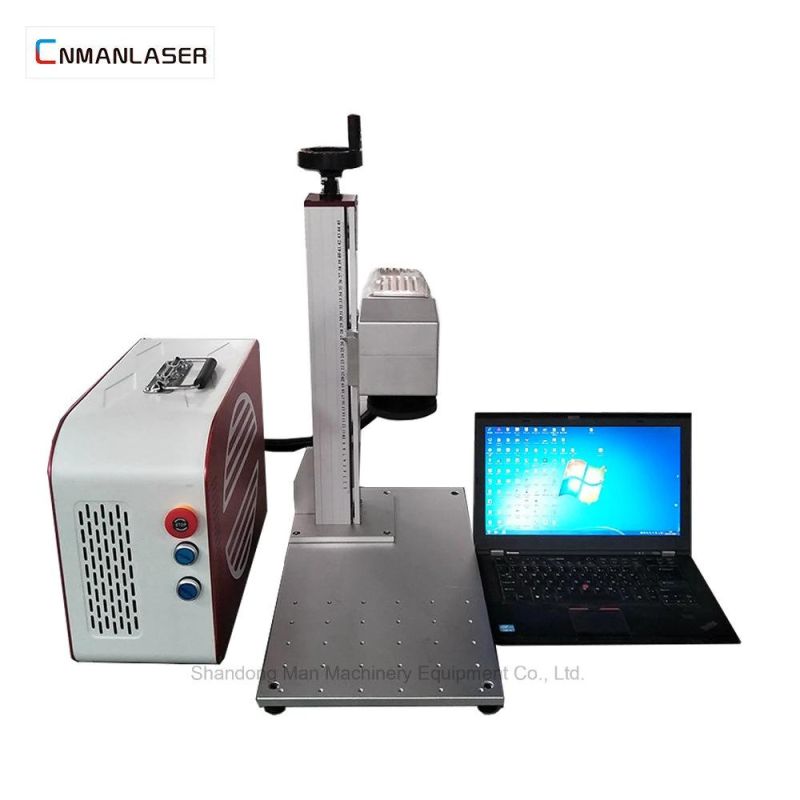

Small size 30w 50w laser marking machine with free maintenance

Production :



1) Integrated design, small size (there is one cabinet and portable optional);

2) Fewer supplies , machine , low power consumption and power consumption;

3)Internal air cooling systems, reducing energy consumption, 100,000-hour maintenance-free;

4) High electro-optical conversion efficiency, maintenance-free, high stability, easy operation;

5)USB interface output control, can receive a variety of file formats (such as PLT,BMP,JPG);

6)Enable barcodes, text graphics, regular and irregular serial number and other marking;

7)To play black ,deep engraving and rotary marking;

Technical Parameter :


Laser power	Fiber 10W  (20W/30W for option )
Working area	100*100mm (200*200mm / 300*300mm for opton )
Laser Wavelength	1064nm
Response time	0.5ms
Feeding speed	depend on products and marking effective
Max marking depth	≤0.4mm
Marking speed	≤8000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.02mm
Minimum character	0.25mm
Repeatability accuracy	±0.002mm
Optical quality	M2 <1.5
Marking content	Text,pattern,date,bar code,etc
Control software	EZCAD control software
Operation system	Microsoft Windows XP or Windows 2000
Graphic format supported	bmp, jpg, gif, tga, Ai, bmp, dst, dxf, plt,png,tif,ai,dxf,dst,plt,etc
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A
Instructions	Video instructions&instructions book
Optional Spare Parts	) Rotary system (D: 50mm/80mm/100mm) 2) Outside red light 3) Light Equipment 4) Protection glasses

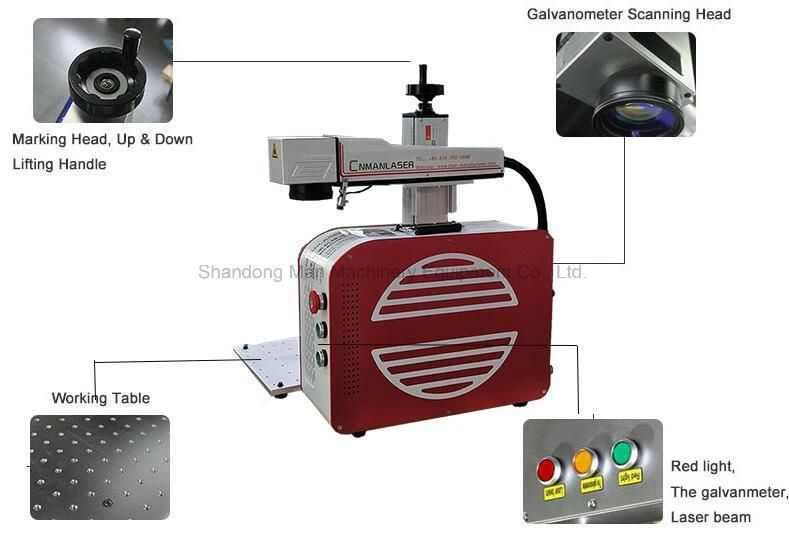

The Details Images :

Software Interface :

Professional Marking Software EZ CAD

1.Powerful editing function

2.Friendly interface

3.Easy to use

4.Support Windows XP,Win7 System

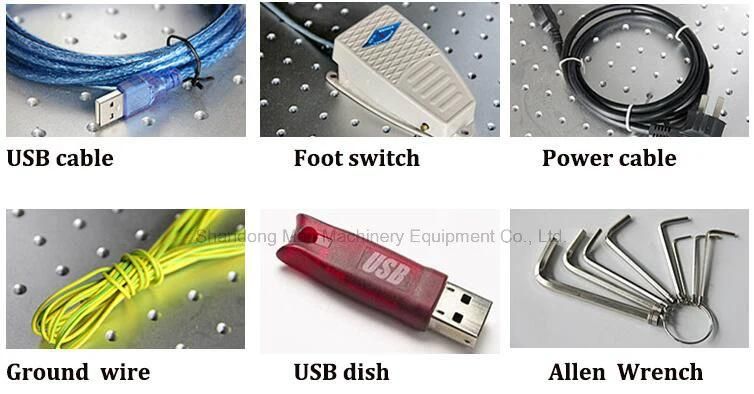

Standard laser parts for laser machine :

Main Body Laser Machine Unit x 1

Operation manuel  x 1

Computer including controller software and operation video x 1

Wood Safety Package Box x 1

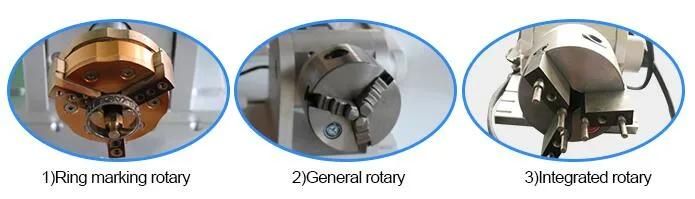

Optional  Laser Parts for laser machine :

 Can be used for different cylindrical, spherical objects to rotate the marker axis. The stepping motor is used for digital control,

and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.

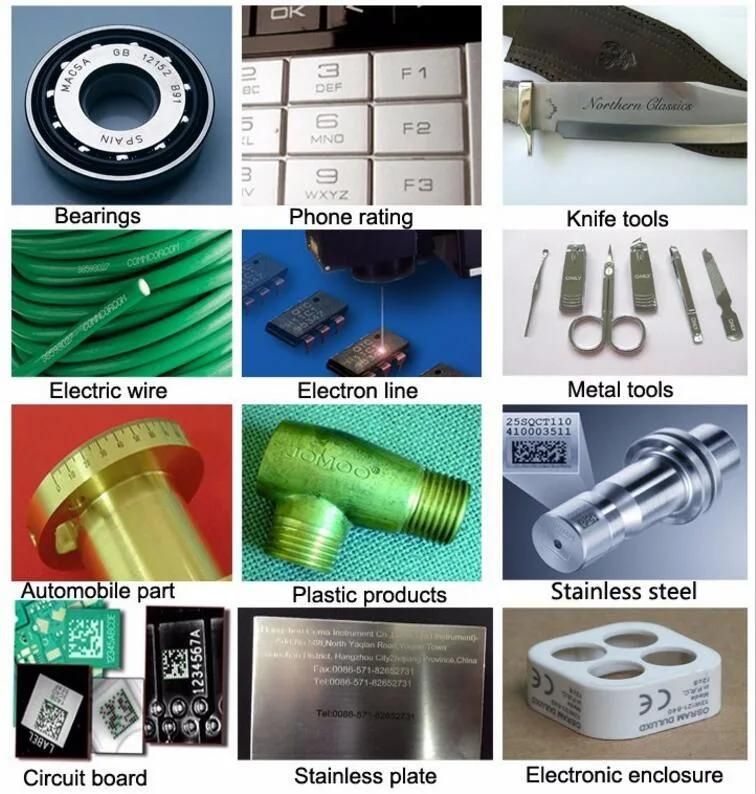

Sample Show :

>>Applicable Material:

gold & sliver, stainless steel, ceramic, plastic, glass, stone, leather, cloth, bamboo and so on.

>>Applicable Industry:

gold & silver jewelry, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and

instruments, watches&glassware, auto accessories, electronic hardware.

>>Representative Working Samples:
auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic products marking.



Packaing & Shipping :

Trade terms: FOB, CIF, EXW

Payment terms: T/T, Western Union, Escrow, MoneyGram

Payment condition: 30% deposit before production, 70% balance before delivery

Delivery time: 1-3 working days after deposit

Packaging: Crate box to protect the machine inside and delivery in safety.

Shipping: By sea, by air or express delivery


Services :

Pre-sale service:

* Free sample making:

For free sample making/testing, please send your samples or products CAD Graphics to our company in China.

Sample shipping back cost should be paid by purchaser.

* Progressing Solution Design:

According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency

and better processing quality for customer.

After-sale service:

1.3  years quality guaranty, the machine with main parts(excluding the consumables

shall be changed free of charge when if any problem during the warranty period.

2.Life time maintenance free of charge.

3.Free training course at our plant.

4.24 hours on line service each day, free technical support.

5.Machine has been adjusted before delivery.

6.Provide technical services to door to door.
