Portable CO2 Laser Marking Machine 20W for Non-Metal Materials
Shandong Man Machinery Equipment Co., Ltd.- Laser Visibility：Visible
- Applicable Material：Nonmetal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：CO2 Laser
- Laser Classification：Semiconductor Laser
Base Info
- Model NO.：MAN-20
- Type：CO2 Laser Marking Machine
- Marking Method：Scanning Marking
- Marking Area：110*110mm
- Laser Power：10W ,20W ,30W
- Modulation Frequency：20 kHz -180 kHz
- Scanning Speed：7000mm,S
- Making Depth：0.01 mm -0.2mm
- Marking Line Width：0.01 mm -0.1mm
- Minimum Character：0.2mm
- Power Supply：AC220V,;10%, 50Hz
- Certification：Ce FDA ISO
- Warranty：3 Years
- Transport Package：Wooden Box
- Specification：65*60*152 cm
- Trademark：CNMANLASER
- Origin：China
- HS Code：8456110090
- Production Capacity：500 Set,Month
Description
multi-function.
can mark on any regular or irregularsurface.
Technical Parameter :
| Laser source | CO2 laser DAVI |
| Laser head | Sino high speed scanning head |
| Wave length of laser | 1064nm |
| Laser repetition frequency | 20kHz~80kHz |
| Laser power | 20W /30W |
| Marking scope | 110*110mm/ 200*200mm/ 300*300mm |
| The minimum focus facula | 20μm |
| Minimal character | 0.01mm |
| Marking speed | ≤7000mm/s |
| Repeated accuracy | 0.0025mm |
| Cooling ways | Air Cooling |
| Power supply | 220V/110V 50Hz-60Hz |
| Process Material | Non-metal and part of metal |
| Support format | PLT,BMP,DXF,JPG,TIF,AI etc |
| Package | Standard wooden box for export |
| Dimension | 710*510*710mm |
| Gross Weight | 60 kg |
| Warranty | 3 years |

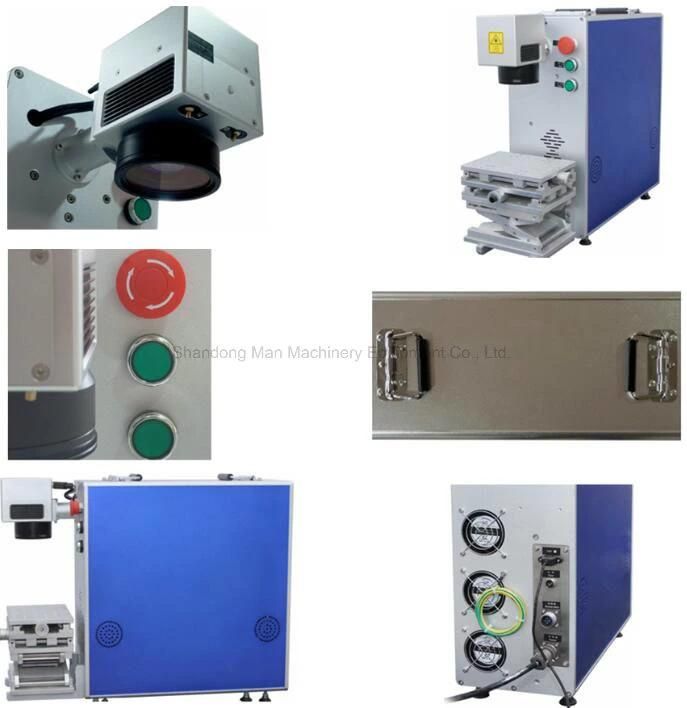

The Details Images :
a. High marking precision, high speed, controllable carving depth
b. Big laser power, suitable carving and cutting nonmetal products
c. No consumables, low cost, sa long as 20,000 to 30,000 hours service life
d. Clear mark, high carving and cutting efficiency, environmental friendly, and energy, saving
e. General machine, adopted back focalization, laser power is controlled by the software and serially adjustable
.It is applicable to fine marking on nonmetal materials with low requirements.
f. Adopting CO2 RF laser tube which has excellent performance and long life.
g. Adopting high-speed galvanometer system with high speed, high precision and stable performance.
h. Adopting imported optics lens, low loss, excellent focalization performance.
i. The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc.

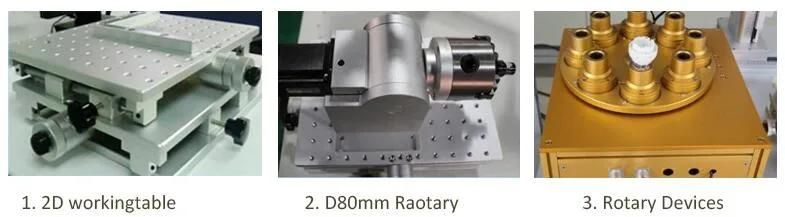

Optional Laser Parts for machine :
Can be used for different cylindrical, spherical objects to rotate the marker axis.
The stepping motor is used for digital control, and the speed can be automatically controlled by computer,
which is more convenient, simple, safe and stable.

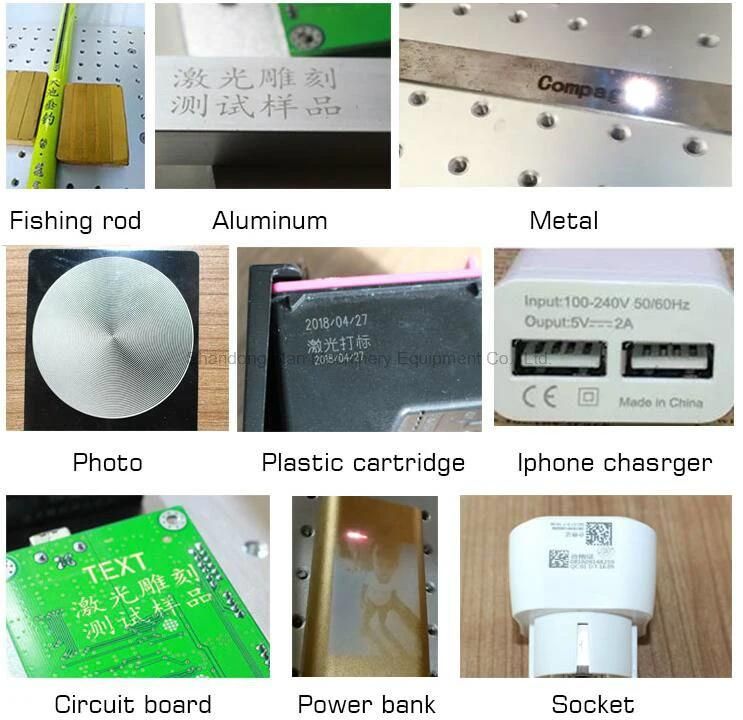

Sample Show :
Applications Materials
Non-metal Material such as leather, cloth, textile, rubber plate, wood, bamboo products, acrylic plate,
plastic, organic glass, tile, marble,jade, crystal, shell, and all kinds of nonmetallic materials.
Applications Fileds
Material: Non-metal materials such as leather, cloth, wood, acrylic, ABS, paper, acrylic etc.
Field: Glass industry, package industry, sign industry, leather products industry, wood industry etc.
Packaing & Shipping :
Main Body Laser Machine Unit x 1
Operation manuel x 1
Computer including controller software and operation video x 1
Wood Safety Package Box x 1
About US :
We not only sell laser marking machine, but also provide after sales service!
Q1: How to get the most suitable machine and best price
Please tell us:
1.the material you wanna handle
2.the Max size of these materials(length,width and thickness)
3.the work you wanna handle with this machine(Engraving ?Cutting ?Or others?)
Q2: Do you have the manual of machine.
Yes,we can provide manual,CD software and video to help you operate the machine expertly.
Q3: If we do not know how to use the machine,can you teach us?
Yes ,of course. We can offer you free training, and engineers available to service machinery training overseas
if you would like to offer them business expenditure.
Q4.How about your after-sales service?
We offer professional and timely after-sale 24 hours online service via phone,Skype or MSN.
Q5.How about your guarantee period?
36 months for whole machine and 3 months for consumables including laser tube, lens and mirrors.
