• Model NO.：MAN-20
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V,;10%,50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：65*60*152 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type CO2 Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V/;10%,50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 65*60*152 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

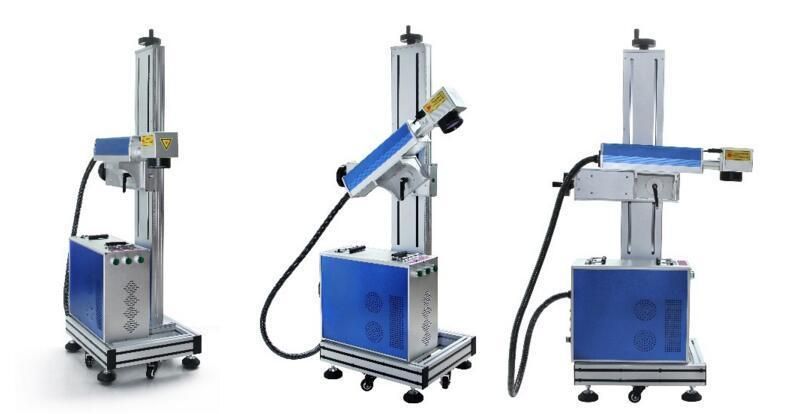

30W Flying CO2 Laser Marking Machine for Wood Paper Leather

Production :


Advantage :

Advanced processing mode, a high degree of precision

Easy product identification.

Environment-friendly.

Low cost, fully automatic, easy operation.

Permanent & long lasting.

Technical Parameter :


Model	MAN-FC20/MAN-FC30
Laser power	20W /30W
Laser wavelength	10.64um
Laser type	America Synrad / China Davi metal RF laser source
Minimum line width	0.02mm
Repeat frequency	20KHz-100KHz
Marking line speedy	≤ 3000mm/s
Marking depth	0.01-0.5mm
Marking area	110×110mm/175×175mm/200×200mm
Graphic format supported	DXF,PLT,BMP,AI etc
Operating voltage	110V- 240V/50-60Hz/15A
Cooling	Air Cooling

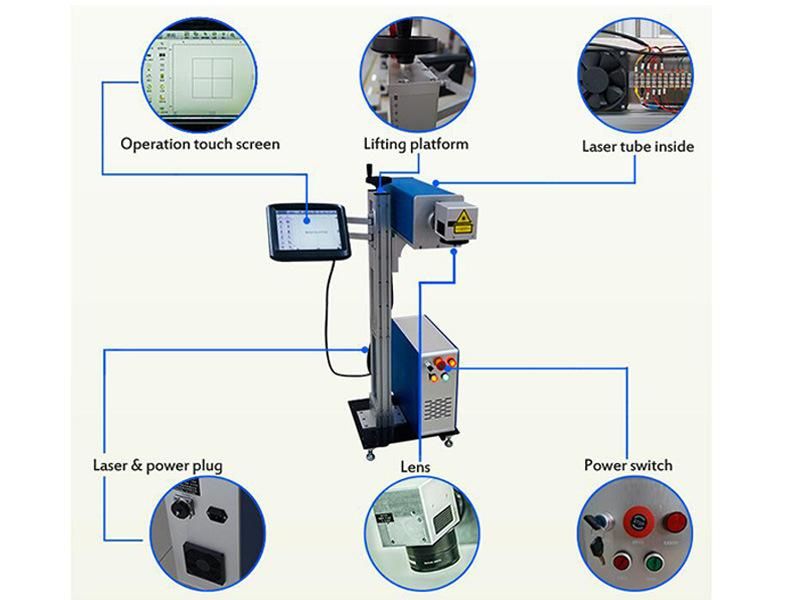

The Details Images :


1. laser power is controlled by the software and it is adjustable, it applies to cut and mark nonmetal materials on big area.

2. Adopt imported CO2 RF laser tube which has excellent performance and long service span (20k hours).

3. Adopt imported American high-speed galvanometer system which has high speed, high precision and stable performance.

4. Adopt imported optics lens, low loss, excellent focalization performance.

5. The marking software is compatible with CorelDraw, AutoCAD, Photoshop etc. a variety of software output files.

Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number,

batch number, date, bar code and two-dimensional code marking.

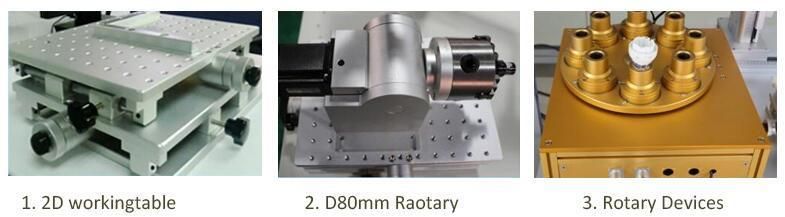

Optional Laser Parts for machine :

Can be used for different cylindrical, spherical objects to rotate the marker axis.

The stepping motor is used for digital control, and the speed can be automatically controlled by computer,

which is more convenient, simple, safe and stable.


Sample Show :

Application Materials:

Non metal Material such as

Craft gifts, furniture, leather garments, advertising signs, model making, food packaging, electronic components,

pharmaceutical packaging, medicine packaging, textile, rubber plate, wood, bamboo products, acrylic plate,

plastic, organic glass, tile, marble, jade, crystal, shell,etc, and all kinds of nonmetallic materials.



Packaing & Shipping :

Main Body Laser Machine Unit x 1

Operation manuel  x 1

Computer including controller software and operation video x 1

Wood Safety Package Box x 1


packaging size	65*60*152 cm
gross weigjht	60kg
details	The normal package is wooden box(Size: L*W*H).  Plywood box full of sponage to prorect the machine . If container is too tigher, we will change height for packing or pack it according to customers special request.

Services :

We not only sell laser marking machine, but also provide after sales service!

1.3  years  quality guaranty, the machine with main parts(excluding the consumables) shall be changed free

of charge when problems happened during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included.
