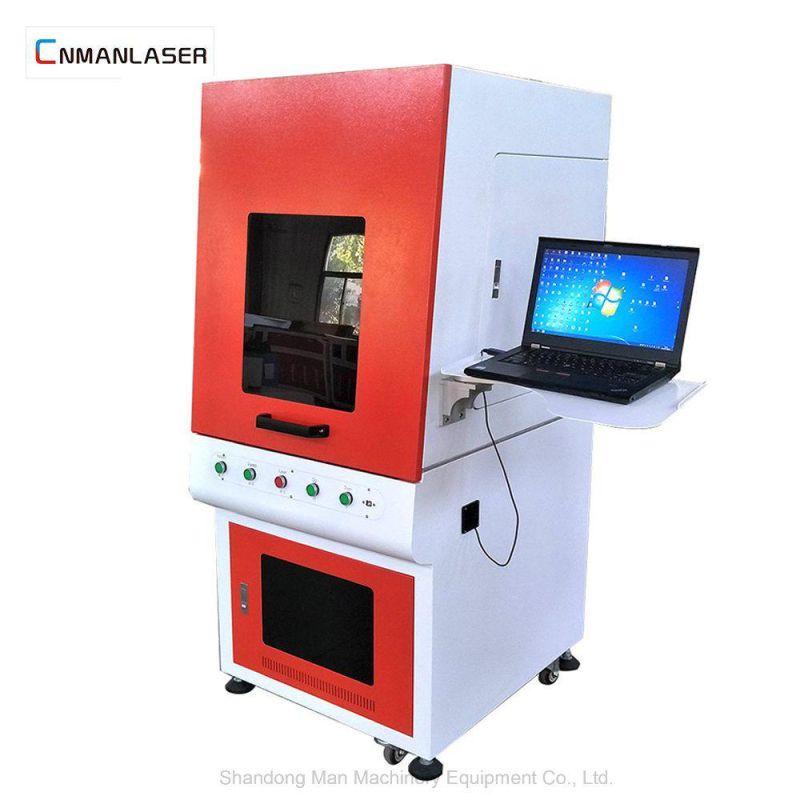

Enclosed Desktop Laser Marking Machine with Ce FDA SGS Approval
Shandong Man Machinery Equipment Co., Ltd.- Laser Visibility:Visible
- Applicable Material:Metal
- Cooling System:Air Cooling
- Technical Class:Pulse Laser
- Laser Wavelength:Fiber Laser
- Laser Classification:Semiconductor Laser
Base Info
- Model NO.:MAN-20
- Type:Optical Fiber Laser Marking Machine
- Marking Method:Scanning Marking
- Marking Area:110*110mm
- Laser Power:10W ,20W ,30W
- Modulation Frequency:20 kHz -180 kHz
- Scanning Speed:7000mm,S
- Making Depth:0.01 mm -0.2mm
- Marking Line Width:0.01 mm -0.1mm
- Minimum Character:0.2mm
- Power Supply:AC220V±10%, 50Hz
- Certification:Ce FDA ISO
- Warranty:3 Years
- Transport Package:Wooden Box
- Specification:900*800*1150 mm
- Trademark:CNMANLASER
- Origin:China
- HS Code:8456110090
- Production Capacity:500 Set,Month
Description
Basic Info.
Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 900*800*1150 mm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/MonthProduct Description
Enclosed desktop laser marking machine with CE FDA SGS ApprovalProduction :

Attention :
1. when you want to mark logo size 300*300mm, you need to higher platform to 800mm.
2. rotary for marking round materials like: ring
3. outside red light, light, protection cover ect optional.
4. 2years warranty and technician online help you solve problems.
Technical Parameter :
Power | 10w 20w 30w 50w |
Laser Wavelength | 1064nm |
Pulse Frequency | 0.2-20KHZ |
Marking Range | 200*200mm/100*100mm(Optional) |
Beam Quality | M2<=1.3 |
Marking Depth | <=0.3mm |
Marking Speed | 12000mm/s |
Repeat Accuracy | +-0.002mm |
Min Line Width | 0.01mm |
Min Character | 0.02mm |
Operation System | windowsXP windows7,windows8/10 |
Electricity Demand | 220V/50Hz/1.5kVA |
Working Environment | Temperature:15ºC-30ºC;Humidity 30-80% No condensation |
Warranty | 3 years |
Package | Wooden case |

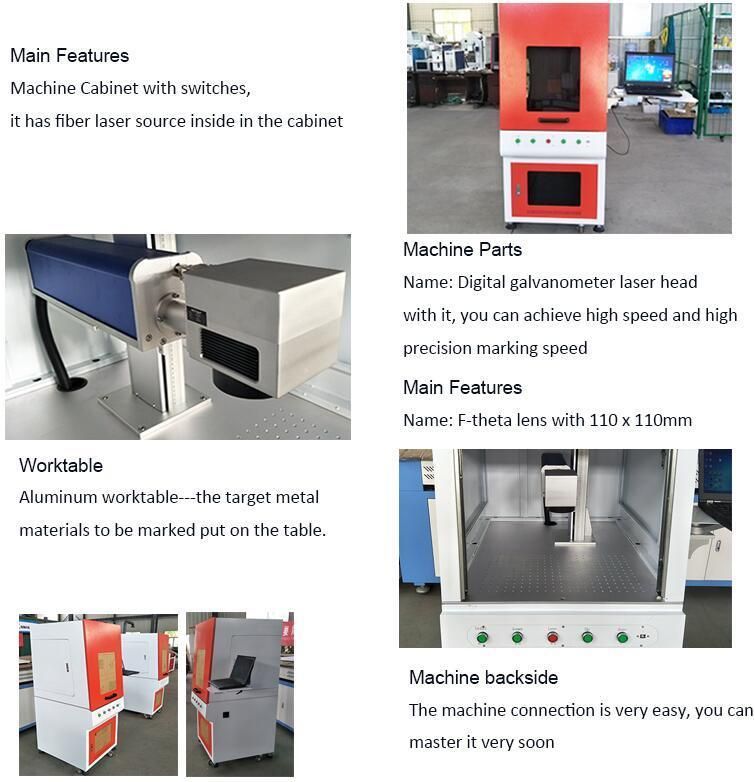

The Details Images :

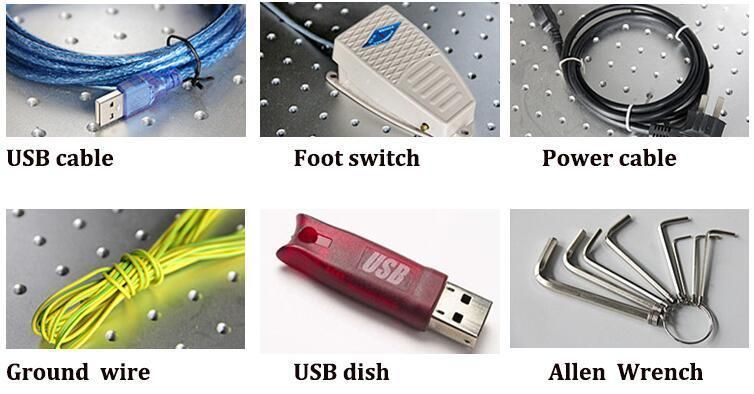

Standard Acdcessories For Laser Machine :
A semiconductor module
A set of high-speed vibrating mirrors
A set of marking control system
An industrial computer
A marking work table
A red laser pointer
A pedal switch
A set of marking software
A user manua
1.Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
2.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
3.Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
4.Dishware ,food ,drinking,smoking and alcohol,etc

Packaing & Shipping :
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;

FAQ :
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.
1)Your materials.
2)The size of your material:___mm*___mm
3)You want to engrave or cut? If cut, what's your cutting thickness?
Q2: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines
according to client s specific requirements, it would be 15 to 30 days.
Q3. Are you a Factory or Trading company?
We're a professional manufacturer with export license.
Q4.This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
Q5. If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and skype or go to your home for after-sale service
