• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W ,30W
• Marking Range：110mm×110mm 175mm×175mm
• Q-Frequency：20kHz~100kHz
• Marking Speed：10000mm,S
• Engraving Speed：10000mm,S
• Minimum Character：0.001mm
• Power Consumption：0.5kw
• Marking Depth：0 ~0.5mm
• Engrave Depth：1mm
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W /30W Marking Range 110mm×110mm 175mm×175mm Q-Frequency 20kHz~100kHz Marking Speed 10000mm/S Engraving Speed 10000mm/S Minimum Character 0.001mm Power Consumption 0.5kw Marking Depth 0 ~0.5mm Engrave Depth 1mm Warranty 3 Years Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

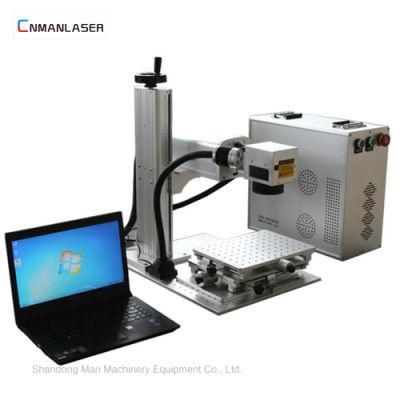

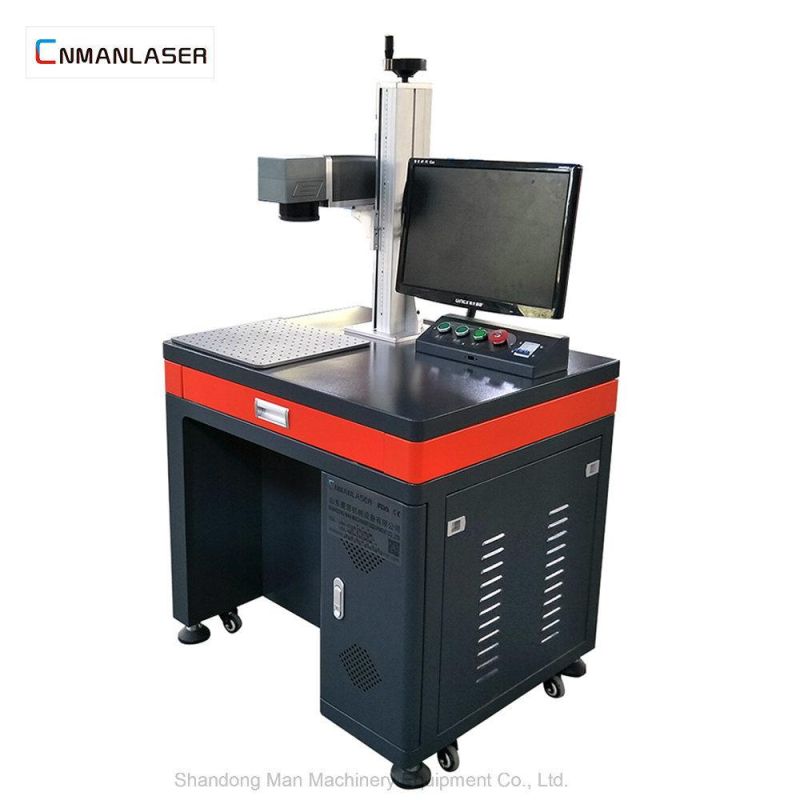

CNC Desktop laser marking machine price with EzCad software

Production :

Why Choose US ?

1. Scanning galvanometer:high speed mirror: high precision, fast and stable.

2. Field mirror:Automatic red light focusing system makes marking more convenient;

3. Laser sources : new technology laser tube,zero fault important factor;

4..Lift scale: Precision ruler, marking effect more accurate;

5. Elevator shaft:up and down adjustment,laser marking unlimited easily.

6. Control panel:Intelligent chip ,stable and reliable operating software

7. Power supply:Excellent power supply to reduce fault occurrence;

8. Control switch;Control switch, simple, clear and easy to operate;

9. Ribbon cable:The alignment is neat, neat, guarantees the safety;

10. Touch screen:Professional software, simple interface, simple operation;

Technical Parameter :


Model	MAN-F30
laser type	20W /30W
Wavelength	1064nm
Laser beam quality M2	<1.8
Frequency	30-60KHZ
Marking Area	110mm×110mm(optional)
Marking Depth	0.03-0.1mm
Max position speed	8000mm/s
Min. linear width	0.01mm
Min. Character size:	0.2mm
Repetition Accuracy	0.005mm
Control program	Genuine EZ-CAD control system  Compatible with win7/8/10
Graphic format supported	Jpg,Bmp,dxf,plt
working voltage:	AC220V 50HZ /AC110V 60HZ
Cooling type	Air cooling
Operating parameter	0-40ºC
Power consumption	<=600w

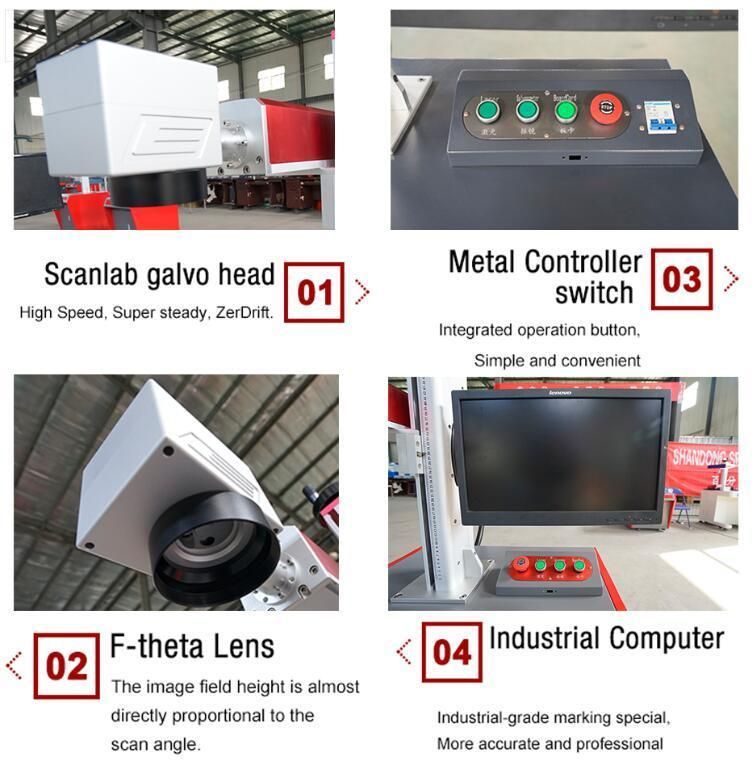

The Details Images :



Optional  laser parts :

1. 2D /3D working table

All aluminum alloy , can move up-down , right left .

2. Smokingh devices :

It can optional .

3. Conveyor belt

It is mainly used in scale operation to improve production efficiency .

4. Rotary devices

Can attach max inside diameter 8cm , max outside diameter 11 cm .

5. Red dot

Laser is invisible , so the red dot can help you to show the target pattern size and laser position .

Sample Show :



Packaing & Shipping :

Delivery and Transport terms:

Delivery time: 7-15 working days after the order

Package: International Standard Exporting Plywood case

We can send machine to your port or door address by sea or airplane.

Pls kindly tell us your near port or address with postcode.


About US   :

1. Warranty

Our Services

* 3 years  warranty for machine.

* English manual and Video CD for machine using and maintenance.We offer free training in our factory.

Before sale:

We would always be here to provide any information you need at the first time,

and give professional suggestions according to your real needs for free;

During sale:

We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;

After sale:

We would provide English Version working manual.

If you have any questions during using and maintaining, You can contact me in time.

Our professional after sale engineer will also help you solve it in time.

 2 .Payment  Terms :

1. 30% T/T paid in advance as deposit, the balance paid before shipment.

2. Irrevocable L/C at sight.

3. Alibaba Trade Assurance ( New,safe and popular payment terms)

4.Paypal

5. Western union
