• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W ,30W
• Marking Range：110mm×110mm 175mm×175mm
• Q-Frequency：20kHz~100kHz
• Marking Speed：10000mm,S
• Engraving Speed：10000mm,S
• Minimum Character：0.001mm
• Power Consumption：0.5kw
• Marking Depth：0 ~0.5mm
• Engrave Depth：1mm
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W /30W Marking Range 110mm×110mm 175mm×175mm Q-Frequency 20kHz~100kHz Marking Speed 10000mm/S Engraving Speed 10000mm/S Minimum Character 0.001mm Power Consumption 0.5kw Marking Depth 0 ~0.5mm Engrave Depth 1mm Warranty 3 Years Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

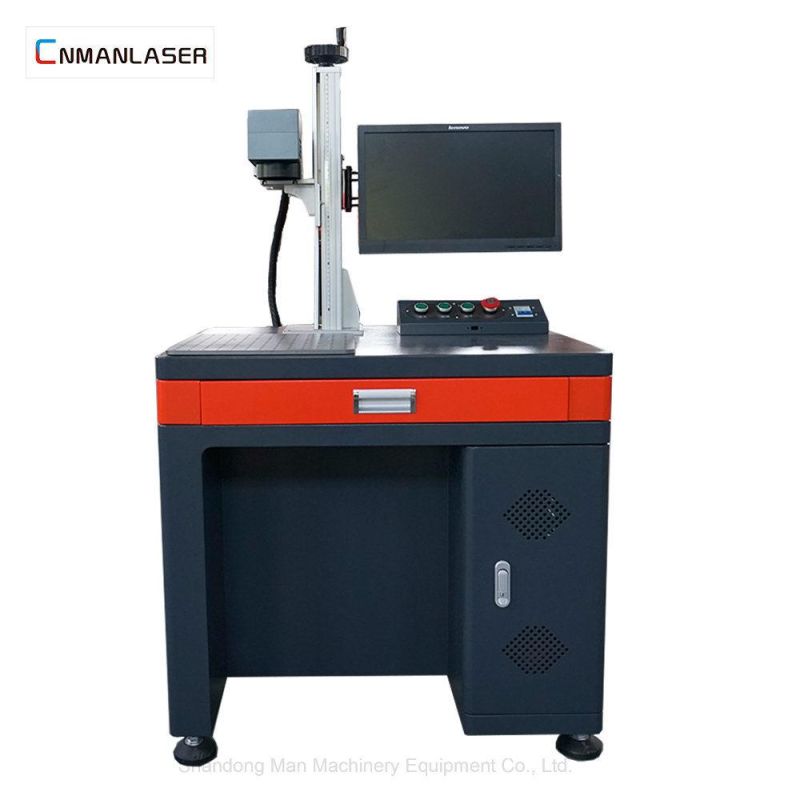

Desktop 30W Color Metal Plate Laser Marking Machine with computer

Production :


Why Choose US ?

1. The computer is HP brand.

2. It has a high speed digital galvanometer.

3. The marking program and marking card are genuine.

4. The power switch is from Taiwan Meanwell, it can provide buffer protection when your factory is suddenly power off.

5. The painted body makes machine shining and difficult to fade.

Technical Parameter :


Model	MAN-F30
laser type	20W /30W
Wavelength	1064nm
Laser beam quality M2	<1.8
Frequency	30-60KHZ
Marking Area	110mm×110mm(optional)
Marking Depth	0.03-0.1mm
Max position speed	8000mm/s
Min. linear width	0.01mm
Min. Character size:	0.2mm
Repetition Accuracy	0.005mm
Control program	Genuine EZ-CAD control system  Compatible with win7/8/10
Graphic format supported	Jpg,Bmp,dxf,plt
working voltage:	AC220V 50HZ /AC110V 60HZ
Cooling type	Air cooling
Operating parameter	0-40ºC
Power consumption	<=600w

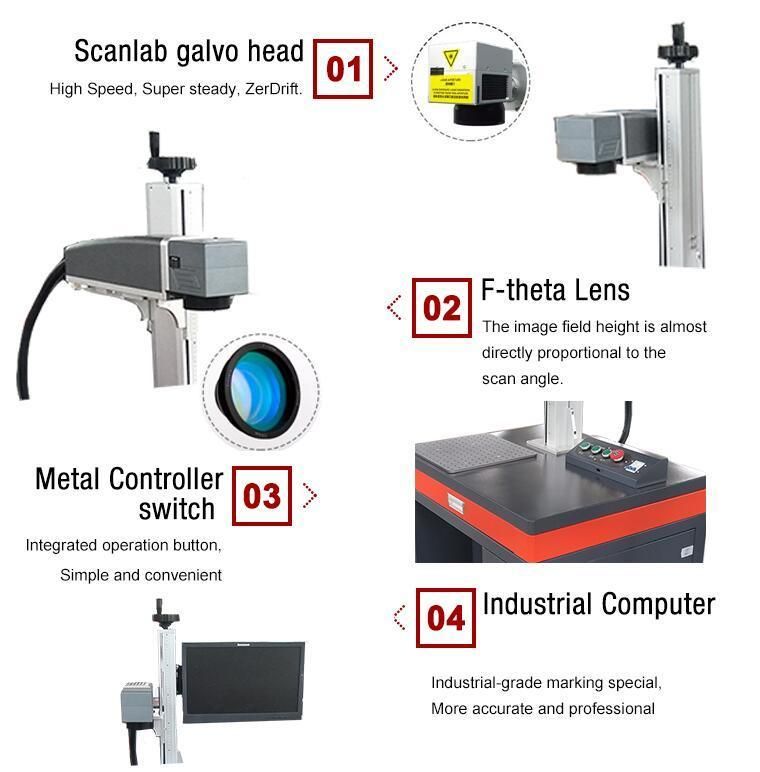

The Details Images :

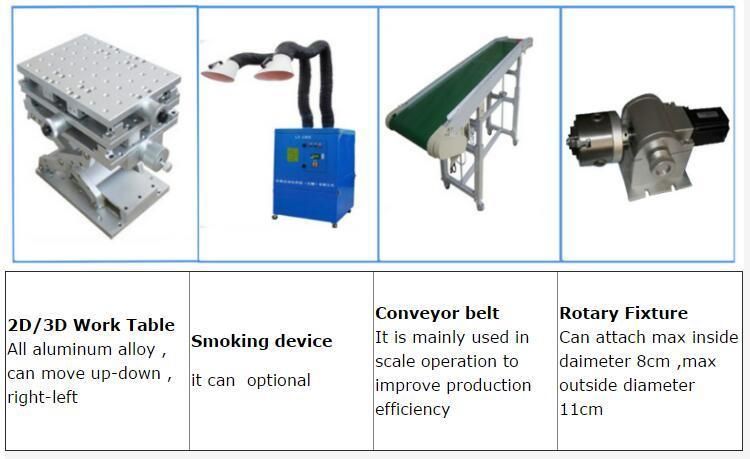

Optional  laser parts :


Sample Show :



Packaing & Shipping :

Delivery and Transport terms:

Delivery time: 7-15 working days after the order

Package: International Standard Exporting Plywood case

We can send machine to your port or door address by sea or airplane.

Pls kindly tell us your near port or address with postcode.


About US   :

1. Warranty

Service before sale

Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.

Service on sale

We are confident that we sell our machines to customers at low prices and activated.

Professionally and patiently introduction

pictures and video to show machine

Service after sale

1, Free insurance for goods

2, 24 hours online to solve any

questions.Supply manual book and technical support,maintain video to help you.

 2 .Payment  Terms :

1. 30% T/T paid in advance as deposit, the balance paid before shipment.

2. Irrevocable L/C at sight.

3. Alibaba Trade Assurance ( New,safe and popular payment terms)

4.Paypal

5. Western union

Contact US   :
