• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：65*60*152 cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 65*60*152 cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

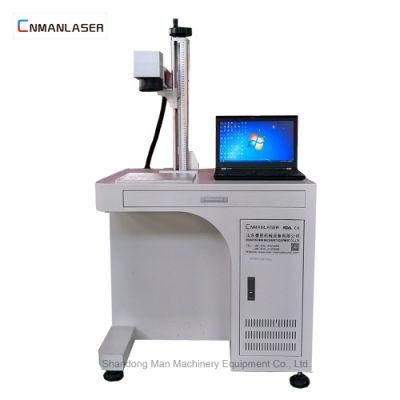

industry laser equipment cnc marking machine for  PVC Sheet pipe

Production :



1. High speed with galvanometer

2. Small volume,light weight

3. Low power,consumption power is less than 500W.

4. completely air cooling,low power consumption.

5. No influence of the severe environment temperature change.if no power,battery and car cigarette lighter can be used for working.

Technical Parameter :


Laser power	Fiber 10W  (20W/30W for option )
Working area	100*100mm (200*200mm / 300*300mm for opton )
Laser Wavelength	1064nm
Response time	0.5ms
Feeding speed	depend on products and marking effective
Max marking depth	≤0.4mm
Marking speed	≤8000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.02mm
Minimum character	0.25mm
Repeatability accuracy	±0.002mm
Optical quality	M2 <1.5
Marking content	Text,pattern,date,bar code,etc
Control software	EZCAD control software
Operation system	Microsoft Windows XP or Windows 2000
Graphic format supported	bmp, jpg, gif, tga, Ai, bmp, dst, dxf, plt,png,tif,ai,dxf,dst,plt,etc
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A
Instructions	Video instructions&instructions book
Optional Spare Parts	) Rotary system (D: 50mm/80mm/100mm) 2) Outside red light 3) Light Equipment 4) Protection glasses

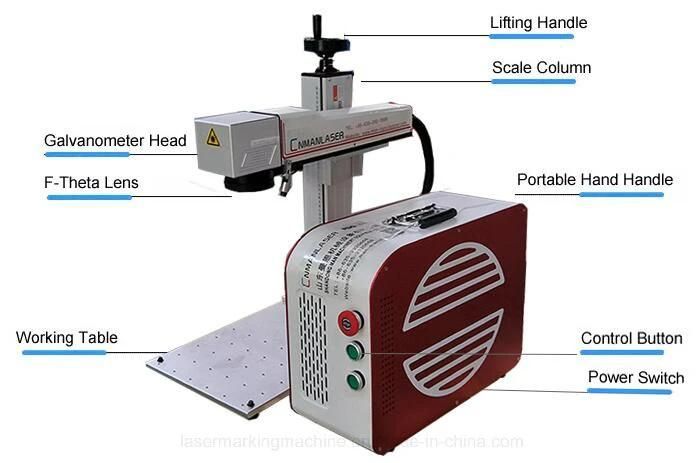

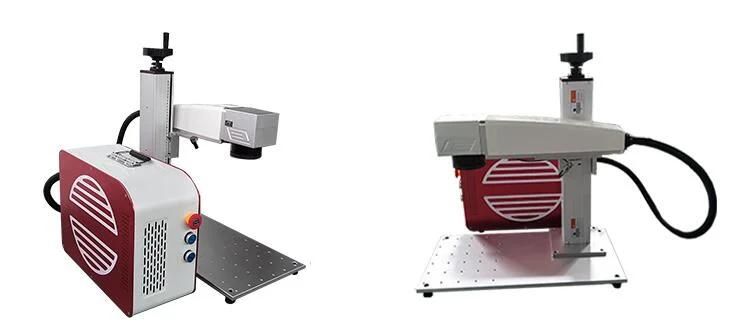

The Details Images :



1. Fiber laser source

The machine can equip IPG/MAX/RAYCUS ect. fiber laser source according to customer demands.Perfect Laser beam and long life 100000 hours.


2. Digital Galvanometer scanner system

Fast response speed,Unique servo technology can effectively educe the electromagnetic interference of the environment,improve the stability of long

term work.

3. T-theta scan lens

"Wavelength"brand made in Singapore fast speed long life

4. Control system

EZ-CAD control system with stable performance and high reliability,complex function,ensure long time working.

5. Power supply and control switch

Integrally power control on/off switch,easy operation

6. Portable handle

Easy held z axis up/down by hand

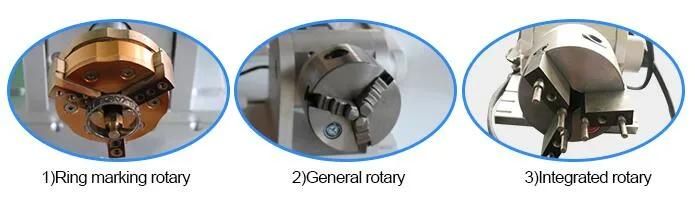

Optional  Laser Parts for laser machine :

 Can be used for different cylindrical, spherical objects to rotate the marker axis. The stepping motor is used for digital control,

and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.



SOFTWARE INTERFACE

Professional Marking Software EZ CAD

1.Powerful editing function

2.Friendly interface

3.Easy to use

4.Support Windows XP,Win7 System

Sample Show :

Applicable materials:

It is suitable for label-creation of hardware and cutting tools,kitchen knives,plasticproducts,computer keyboards,integrated

circuits,packaging,bottles,glasses,sanitary appliance and so on.

Applicable industry:

This machine is widely used in mobile button , plastic transparent button , electronic parts , IC , tools , communication products , bathing products ,

tool accessories , glasses and watches , jewelry , button decoration for boxes and bags , cookers , stainless steel products and so on.



Packaing & Shipping :

Main Body Laser Machine Unit x 1

Operation manuel  x 1

Computer including controller software and operation video x 1

Wood Safety Package Box x 1


packaging size	65*60*152 cm
gross weigjht	60kg
details	The normal package is wooden box(Size: L*W*H).  Plywood box full of sponage to prorect the machine . If container is too tigher,we will change height for packing or pack it according to customers special request.

FAQ :

Q1.How to get the most suitable machine and best price ?

    Please tell us:

    *the material you wanna handle

    *the MAX size of these materials(length,width and thickness)

    *the work you wanna handle with this machine (Engraving ?   Cutting? or others?)

Q2.Do you have the manual of machine?

    Yes ,we can provide manual ,CD software and installing video-  to help you operate the machine expertly.

Q3.If we don't know how to use the machine ,can you teach us?

    Yes,of course. We can offer you free training and engineers  available to service machinery training overseas.

    if you would like to offer them business expenditure.

Q4.How about your after sales service?

    We offer professional and timely after sale 24 hours onlineser  vice via phone ,Skype or TeamViewer.We our technician will   contact you once you

got the machine and we could provide secure teaching as a professional factory.
