Laser Equipment

Home > Product > Laser Marking Machine

Laser Equipment Factory Wholesale Fiber Laser Marking Engraving Machine

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-30
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box

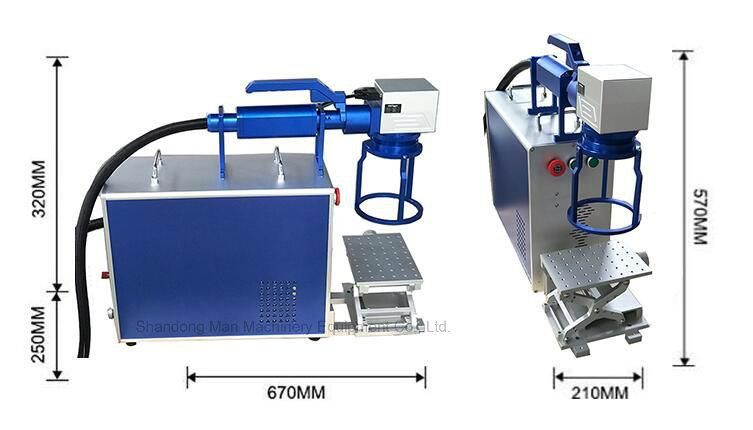

  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

01Laser typeFiber laser02Laser wavelength1064nm03SoftwareEz CAD04Laser power10W | 20W | 30W | 50W05Life-span of Fiber Laser Module100 000hours06Marking depth

0.05~0.5 mm  (according materials)

07Marking speed1-7000mm/s08Mini. line width0.01mm09Mini. character0.1mm010Beam Qualityless than 1.4011Resolution4000 DPI012Auto. serialization Supported013Focus Spot Diameter<0.01mm014Power Requirement<400W015Input Power0.5kw016Cooling wayForced air cooling017Power supply

AC 220V/50Hz  ,110V/60Hz

018Marking area 70×70mm , 110×110mm , 160×160mm , 200x200mm ,300x300mm for optional019Mark contentDate coding letter, symbol, pattern, figure, image, bar code, 2D code  Support formatPLT,PCX, AL, DXF, BMP,JPG ,TIF,SHX Compatible softwareAutoCAD, CorelDraw, Photoshop

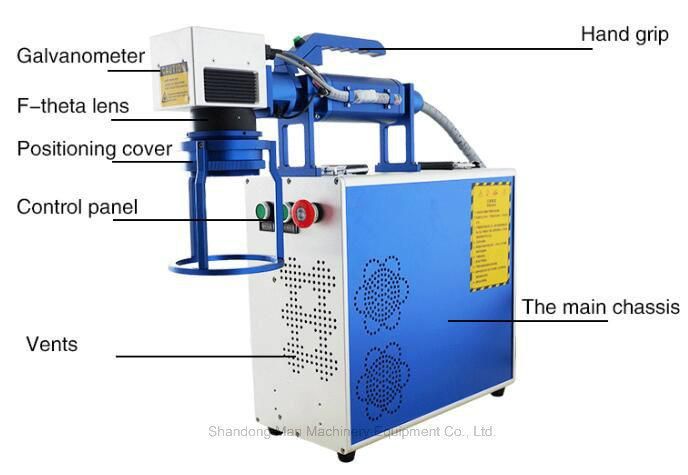

                          DETAILS   IMAGES :
Laser Equipment Factory Wholesale Fiber Laser Marking Engraving Machine
Laser Equipment Factory Wholesale Fiber Laser Marking Engraving Machine

1.Delicate marking.High quality laser beam, it is very suitable for delicate marking.

2.High Marking Speed.With high repeat frequency of the pulse,power output steadily.

3.Compact design.The size of the machine is very small,portable.Suitable for mobile and fixed working.

4.More than 10years life. Ultra-low running cost.The service life of the laser module if more than 100000hours.

5.Wide range of application.The fiber laser marking machine can mark on all kinds of metal materials and some kinds of nonmetal materials.

6.Easy Operating.Afford the specific marking software based on windows,which is real-time adjust the laser power and pulse frequency.

You can edit what you need to mark directly by the specific marking software and the graphic software such as Auto CAD,COREL draw of photoshop.

7.Fiber laser marker Free of maintenance.

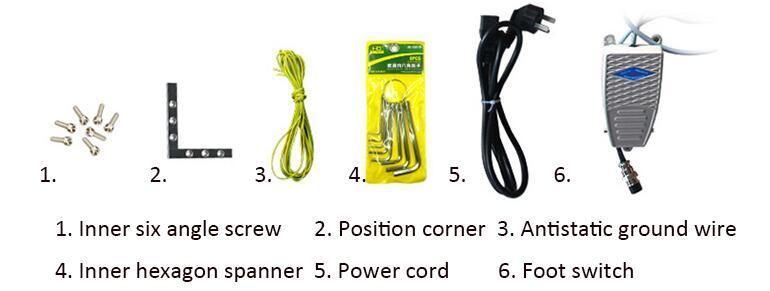

Optional laser parts of the laser machine :

Laser Equipment Factory Wholesale Fiber Laser Marking Engraving Machine

                                   SAMPLE SHOW :

Fiber Laser Marking Machine's Materials can be engraved:

metal, stainless steel, carbon steel, spring steel, alloy steel, brass, copper, aluminum, galvanized sheet, etc.

>>Fiber Laser Marking Machine's Application scope and mater

1. Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.

2. Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.

3. Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.

4. Dishware, food, drinking, smoking and alcohol,etc.

Laser Equipment Factory Wholesale Fiber Laser Marking Engraving Machine


                         PACKAGING &  SHIPPING :



Delivery Time:

5-7 working days after receive the payment.Package:plywood case. Transportation Mode:Portable laser marking machine would be shipped by ocean transportation, air transportation or by express.
Laser Equipment Factory Wholesale Fiber Laser Marking Engraving Machine

                               SERVICES  :

1). 24 hours technical support by Email or phone Calling.

2). English manual and video for machine using and maintaining.

3). Hardware: 2 years on all parts (without person damaged).

                       Software: Whole life on update for free.

                     Maintenance and technological support: Whole life.

4). Engineers available to service machinery overseas.


                              ABOUT  US :

Why choose us?

1. Please tell me your detailed requirements in the inquiry for the machine, such as:

What's the materials you are going to cut or engrave?

What's the maximum size for the materials? Includes the thickness.

Do you have some special requirement?


2. After we know your exact needs, we will recommend you with the most suitable machine and competitive price.

3. After you confirm the specification of the machine and the price, the Proforma invoice will be sent to you.

4. We will produce the machine after deposit is wired.

5. All inquiry or question from you will be replied in 12 hours during working day.

6. We offer OEM services. Can print your own logo on product,can customize the retail box packing and other things.

7. We have very experienced R&D engineers and we have strong ability to do ODM projects.
