20W Metal label Mini Laser Marking Machine with Ezcad Software

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

01Laser typeFiber laser02Laser wavelength1064nm03SoftwareEz CAD04Laser power10W | 20W | 30W | 50W05Life-span of Fiber Laser Module100 000hours06Marking depth

0.05~0.5 mm  (according materials)

07Marking speed1-7000mm/s08Mini. line width0.01mm09Mini. character0.1mm010Beam Qualityless than 1.4011Resolution4000 DPI012Auto. serialization Supported013Focus Spot Diameter<0.01mm014Power Requirement<400W015Input Power0.5kw016Cooling wayForced air cooling017Power supply

AC 220V/50Hz  ,110V/60Hz

018Marking area 70×70mm , 110×110mm , 160×160mm , 200x200mm ,300x300mm for optional019Mark contentDate coding letter, symbol, pattern, figure, image, bar code, 2D code  Support formatPLT,PCX, AL, DXF, BMP,JPG ,TIF,SHX Compatible softwareAutoCAD, CorelDraw, Photoshop

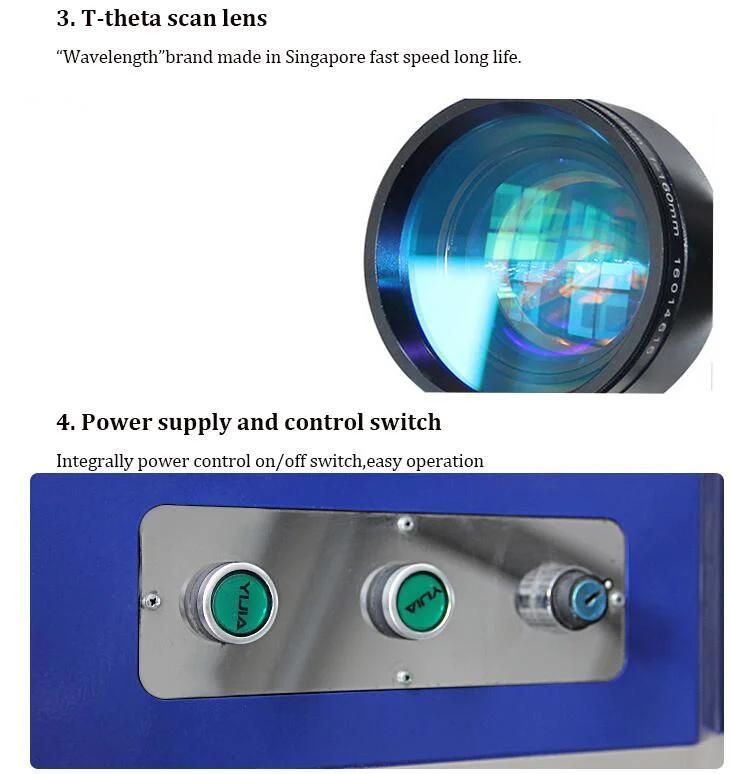

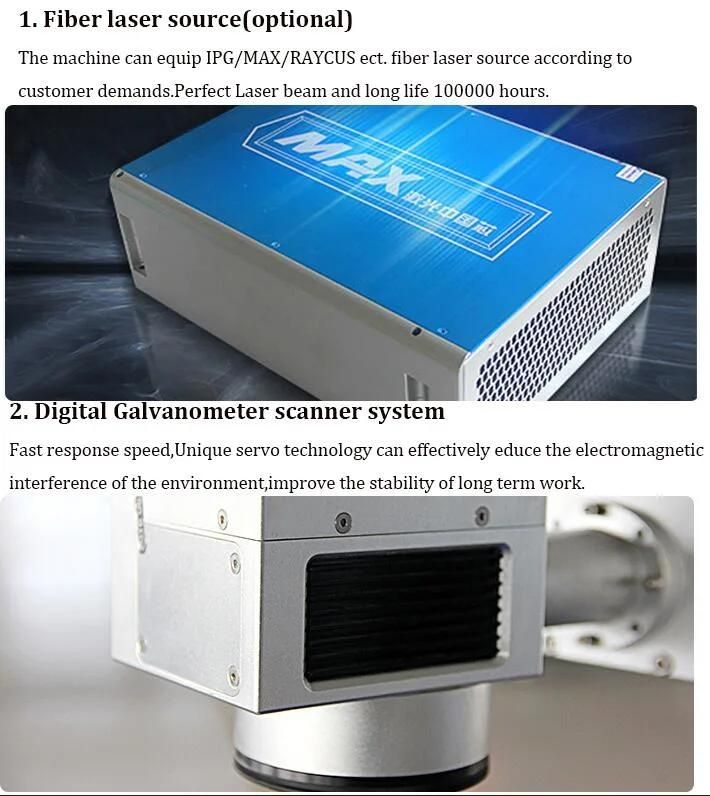

                          DETAILS   IMAGES :


20W Metal label Mini Laser Marking Machine with Ezcad Software
20W Metal label Mini Laser Marking Machine with Ezcad Software

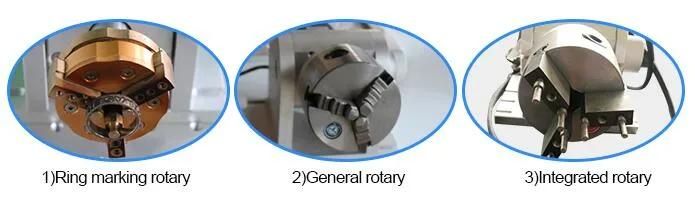

Optional laser parts of the laser machine :

20W Metal label Mini Laser Marking Machine with Ezcad Software

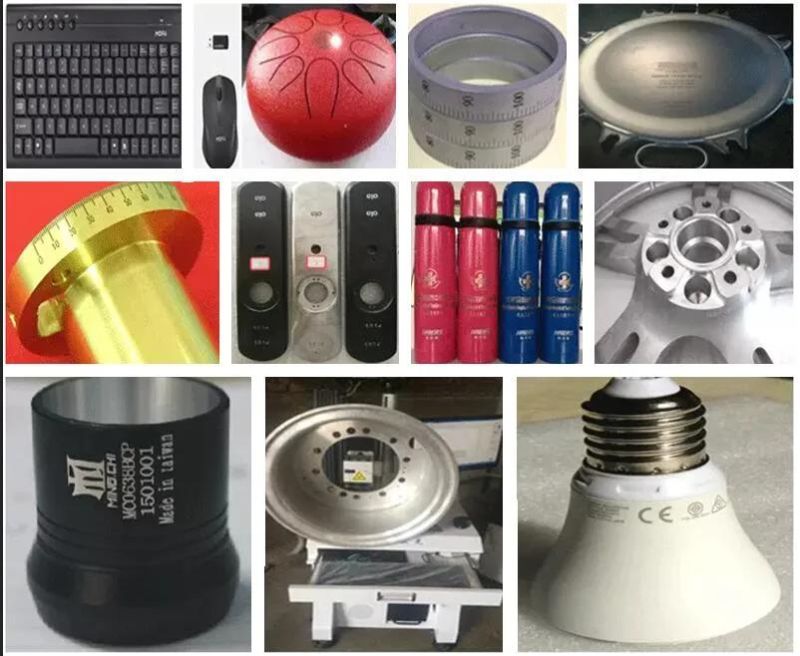

                                   SAMPLE SHOW :

1. Function :

Fiber laser marking machine is used to engraving / marking / Coding / printing on many type of metal material and some non metallic material

with different design text , symbol , pattern , bar code , 2D code , serial number, and suitable for online engraving .

2. This marking machine can be used in:

1. metal:stainless steel,hardware,watch&clock,gold&silver jewelry,mould.

2. Non-metal:PVC,PCB circuit diagram,ABS casing,chip industry,plastic marking,ceramics

3. Surface treatment filed:oil and ink paint,anodic oxidation,electroplate,electroplate,surface marker,metal surface treatment.

4. Micro hole machining,metal wire cut,metal deep marking.


20W Metal label Mini Laser Marking Machine with Ezcad Software

                         PACKAGING &  SHIPPING :

20W Metal label Mini Laser Marking Machine with Ezcad Software

                                ABOUT  US  :


After sale service

1.24 hour Technical support by phone, e-mail or MSN around the clock

2. Friendly English version manual and operation video CD disk

3.7-15 working days after down payment or full payment

4. Machine will be adjusted before it is delivered; operation disk/CD was included.

5. Our technician can give you remote guide online (Skype or MSN) if you have any question

6. Engineers available to service machinery overseas, seller and buyer discuss the charges

                              CONTACT US :

Before quotation

would you please let me know some items following?

1.What materials do you want to mark on by our  laser marking machine?

2.What max. marking engraving scope ?

3.How about your expect marking engraving  performance?

Then, more details with good price will be sent . Also more industry solution will be supplied.
