Handhold Mini CNC Fiber Laser Marking Machine for Mechanical Hardware

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

01Laser typeFiber laser02Laser wavelength1064nm03SoftwareEz CAD04Laser power10W | 20W | 30W | 50W05Life-span of Fiber Laser Module100 000hours06Marking depth

0.05~0.5 mm  (according materials)

07Marking speed1-7000mm/s08Mini. line width0.01mm09Mini. character0.1mm010Beam Qualityless than 1.4011Resolution4000 DPI012Auto. serialization Supported013Focus Spot Diameter<0.01mm014Power Requirement<400W015Input Power0.5kw016Cooling wayForced air cooling017Power supply

AC 220V/50Hz  ,110V/60Hz

018Marking area 70×70mm , 110×110mm , 160×160mm , 200x200mm ,300x300mm for optional019Mark contentDate coding letter, symbol, pattern, figure, image, bar code, 2D code  Support formatPLT,PCX, AL, DXF, BMP,JPG ,TIF,SHX Compatible softwareAutoCAD, CorelDraw, Photoshop

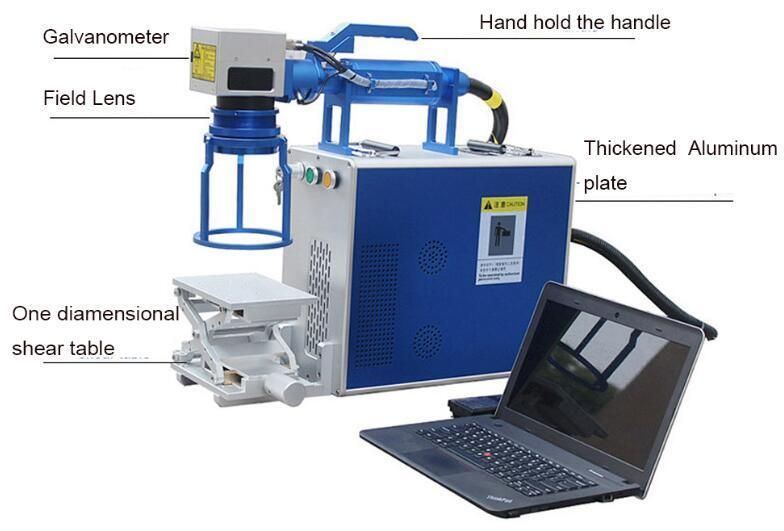

                          DETAILS   IMAGES :

Handhold Mini CNC Fiber Laser Marking Machine for Mechanical Hardware

1) high integrated, superior laser beam and uniform power density, stable output. Increasing anti-reflection ability, marking without the shadow

and virtual open phenomenon.

2) Advanced digital high speed scanning galvanometer, small volume, quick speed, good stability, international advanced level.

3) Modular design, separate laser generator and lifter

4) Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system

5) Special flying marking control system, with good performance and easy operation.

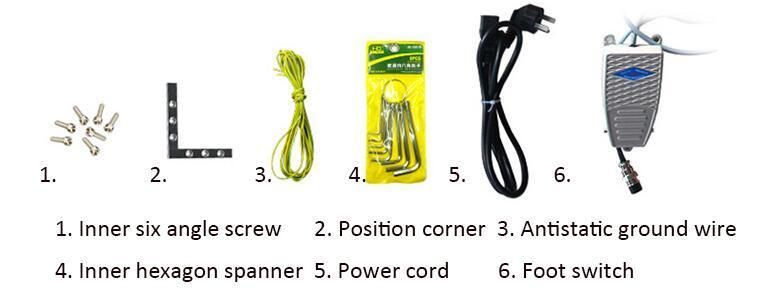

Standard laser parts with the machine :
Handhold Mini CNC Fiber Laser Marking Machine for Mechanical Hardware

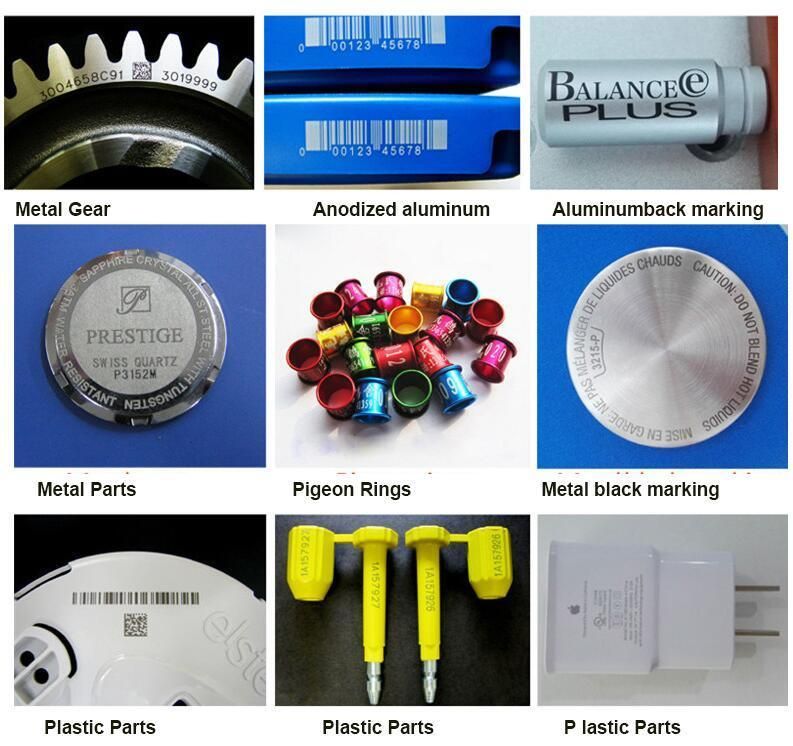

                                   SAMPLE SHOW :

1. Function :

Fiber laser marking machine is used to engraving / marking / Coding / printing on many type of metal material and some non metallic material

with different design text , symbol , pattern , bar code , 2D code , serial number, and suitable for online engraving .

2. This marking machine can be used in:

1.Metal:stainless steel,hardware,watch&clock,gold&silver jewelry,mould and etc.

2.Non-metal:PVC,PCB circut diagram,ABS casting,Chip industry,plastic marking ,ceramics and etc.

3.Surface treatment field:oil nad ink paint,anodic oxidation, electroplate,electrophoresis,surface marker,metal surface treatment.

4.Micro hole machining,metal wire cut,metal deep marking
Handhold Mini CNC Fiber Laser Marking Machine for Mechanical Hardware

                         PACKAGING &  SHIPPING :

Packaging Details :

1. We have 3 layers package.

 For the outside, we adopt wood craft case.

In the middle, the machine is covered by foam, to protect the machine from shaking.

For the inside layer, the machine is covered by thickening plastic bag for waterproof.

2. Sea Packing which comply with international standard.

3. As customer requirements.

Delivery Details:

4-6 Days after payment.

Shipping:

Handhold Mini CNC Fiber Laser Marking Machine for Mechanical Hardware

                                ABOUT  US  :

Pre-sales service

MAN LASER  will offer intentional customers free production process scheme,including technical consultation,sample cutting,equipment

selection,develop and customize or adjust accordingly to the special needs of customers.

After sale service

1.3 years warranty for the whole machine except for laser tube and lens.

2. 24 hours technical support by e-mail.

3.Calling or door-to door service. Engineers available to service machinery overseas.

4. Use friendly English software, user manual and detailed videos / CD.

Technical training

We will send our engineer to our customer's company for installation and technical training .all the terms should be discussed.

MAN LASER offers free technical training ,after installation and adjustment on user's site,training one /two operator and maintenance personnel

respectively.training includes the laser principle,construction equipment,process description,equipment maintenance ,laser safety,operating

procedures and simple troubleshooting.

                              CONTACT US :

Before quotation

would you please let me know some items following?

1.What materials do you want to mark on by our  laser marking machine?

2.What max. marking engraving scope ?

3.How about your expect marking engraving  performance?

Then, more details with good price will be sent . Also more industry solution will be supplied.
