Handhold 50W Keyboard Fiber Laser Marking Machines with Rotary Table

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-50
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

01Laser typeFiber laser02Laser wavelength1064nm03SoftwareEz CAD04Laser power10W | 20W | 30W | 50W05Life-span of Fiber Laser Module100 000hours06Marking depth

0.05~0.5 mm  (according materials)

07Marking speed1-7000mm/s08Mini. line width0.01mm09Mini. character0.1mm010Beam Qualityless than 1.4011Resolution4000 DPI012Auto. serialization Supported013Focus Spot Diameter<0.01mm014Power Requirement<400W015Input Power0.5kw016Cooling wayForced air cooling017Power supply

AC 220V/50Hz  ,110V/60Hz

018Marking area 70×70mm , 110×110mm , 160×160mm , 200x200mm ,300x300mm for optional019Mark contentDate coding letter, symbol, pattern, figure, image, bar code, 2D code  Support formatPLT,PCX, AL, DXF, BMP,JPG ,TIF,SHX Compatible softwareAutoCAD, CorelDraw, Photoshop

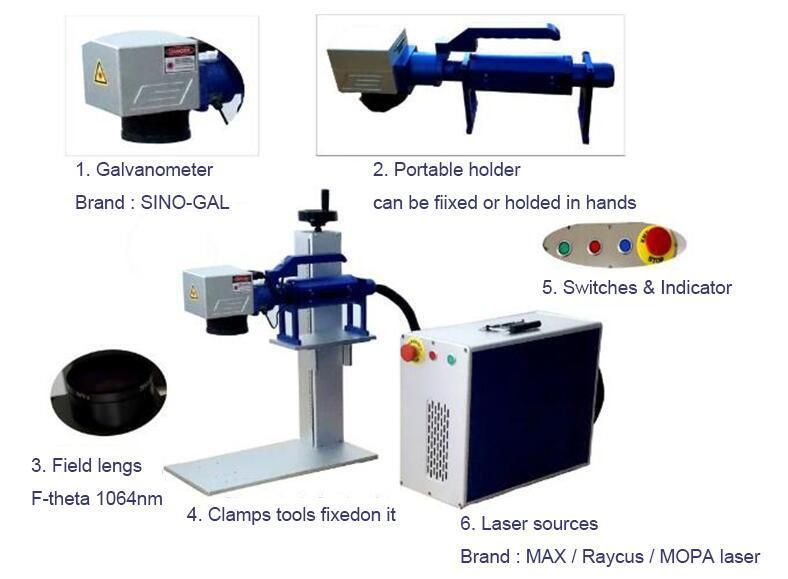

                          DETAILS   IMAGES :

Handhold 50W Keyboard Fiber Laser Marking Machines with Rotary Table


Handhold 50W Keyboard Fiber Laser Marking Machines with Rotary Table

1. Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.

2. High Precision: Re-position precision is 0.001mm

3. High Speed: Imported scanning system makes the scanning speed is up to 15000mm/s

4. Easily Operating:Afford the specific coding software based on Windows, You can input and output by computer according to edit in the both of the

specific coding software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.

5. High Reliability: MTBF>100,000 hours

6. Energy Saving: The efficiency of optic-electrical converting is up to 30%

7. Low Running Cost: No wearing part. Free maintaining.

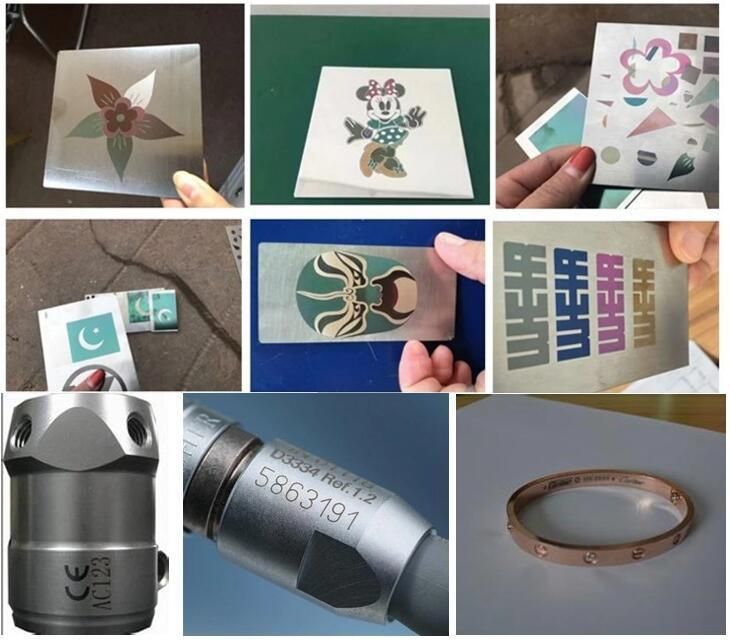

                                   SAMPLE SHOW :

1. Function :

Fiber laser marking machine is used to engraving / marking / Coding / printing on many type of metal material and some non metallic material

with different design text , symbol , pattern , bar code , 2D code , serial number, and suitable for online engraving .

2. This marking machine can be used in:

1.Metal:stainless steel,hardware,watch&clock,gold&silver jewelry,mould and etc.

2.Non-metal:PVC,PCB circut diagram,ABS casting,Chip industry,plastic marking ,ceramics and etc.

3.Surface treatment field:oil nad ink paint,anodic oxidation, electroplate,electrophoresis,surface marker,metal surface treatment.

4.Micro hole machining,metal wire cut,metal deep marking

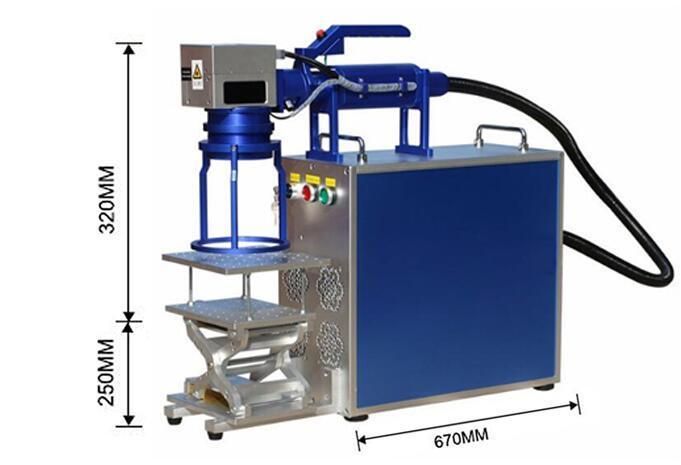

Handhold 50W Keyboard Fiber Laser Marking Machines with Rotary Table

                         PACKAGING &  SHIPPING :

Handhold 50W Keyboard Fiber Laser Marking Machines with Rotary Table

                                ABOUT  US  :

Before-sale service:

Any technical questions will be answered as soon as possible.

Machine video or sample is available.

Any questions about our company will be treated.

After-sale service:

We provide 36 months warranty for the machine.

All spare parts for the machine can be bought with agent price.

Email/ Skype/ MSN/ Trade manager online to support.

Life-long technical support and free after-sale service.

Professional technical team and salesperson assists you with trouble shooting.Procedures via Internet and phone any time when needed.

Free and professional training at our factory.

Door-to-door service if necessary

                              CONTACT US :

Before quotation

would you please let me know some items following?

1.What materials do you want to mark on by our  laser marking machine?

2.What max. marking engraving scope ?

3.How about your expect marking engraving  performance?

Then, more details with good price will be sent . Also more industry solution will be supplied.
