• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：71*51*71cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 71*51*71cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

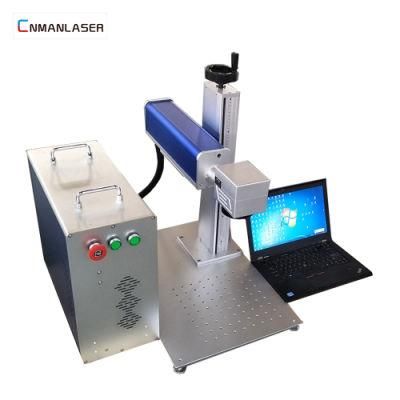

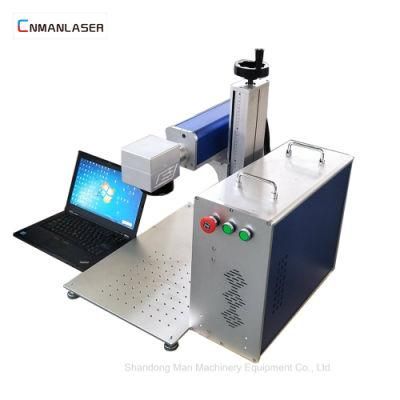

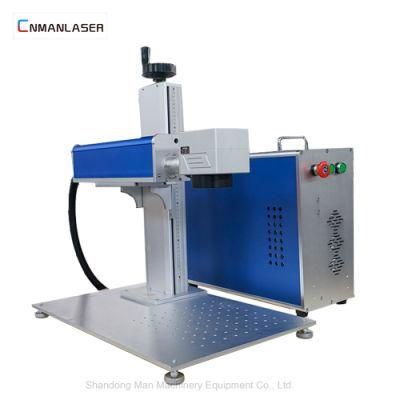

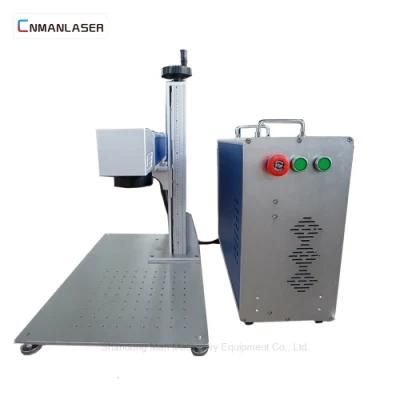

Product Description

portable laser marker fiber marking machine for hardware Pipe building

Production :


Why Choose MAN  Laser :

1. Have met CE FDA SGS certification .

2. Quality Assurance & High cost-effective

3. China manufacturer with competitive price

4. Multi-language service with quick response

5. Engineer overseas service available

6. OEM available: Working table/fixture/production line can be customized

Technical Parameter :


Model	MAN-20W /MAN-30W
Power	20W,30W
Laser wavelength	1060±5nm
Pulse Duration	15ns-350ns
Max Peak Power	Max Peak Power
Full Power of Rep rate	21 - 800kHz
Output Power Stability	5%
Beam size	5-8mm
M2	≤2
Max. Liner marking speed	7000mm/s
Marking format	PLT, DXF, CDR, AI, DWG, etc.
Software	EZCAD
Standard marking area	150×150mm
Power consumed	<500W
Electrical demand	220V  10%/50Hz/4A
Cooling mode	Air-cooling
Control interface	USB
Computer	WIN7
Usage environment	lean,no shaking

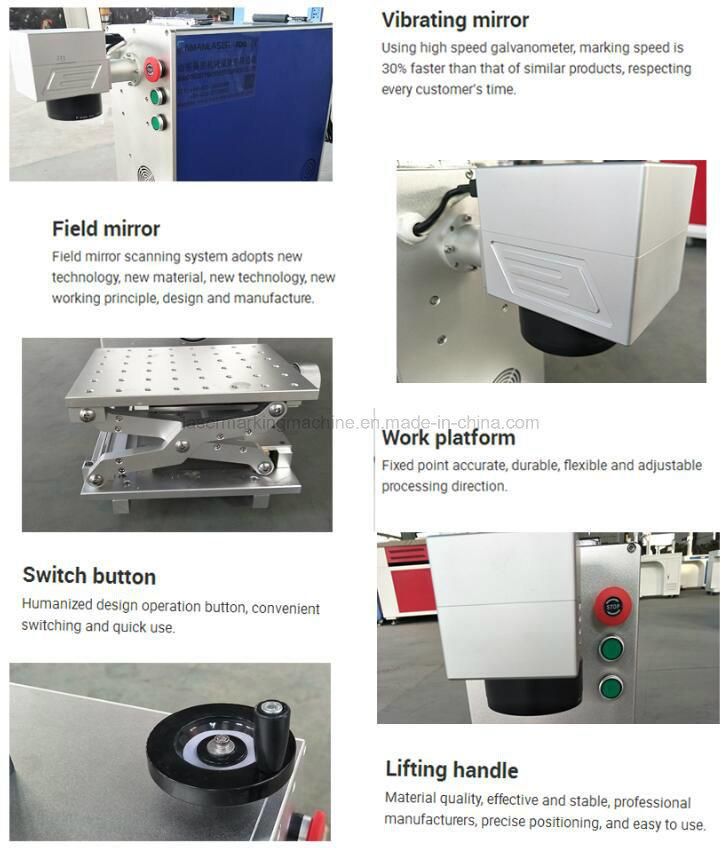

The Details Images :

Focus Finder System:

two extra focus pointers will show the exactly focus, which helps the operator to find the focus very easily, and thus enhance the working efficiency.

Original Raycus Laser Generator:

Raycus is the best laser generator in China. It can ensure that the working hour is 100,000h.

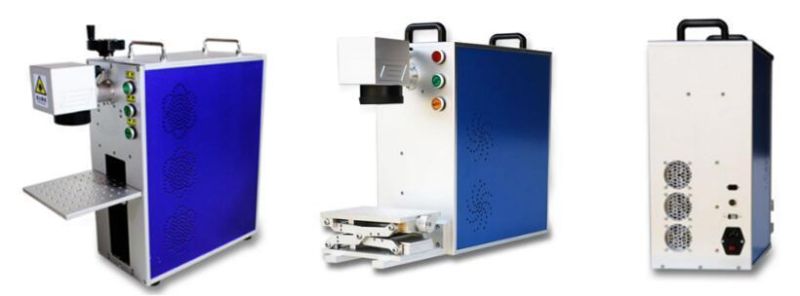

Compact Design:

Super lightweight, you can put it whereever you want to.

What you can get when you buy our machine:

1.Personal compurter (computer system and machine software already installed)

2.Laser source already installed;

3.2D worktable

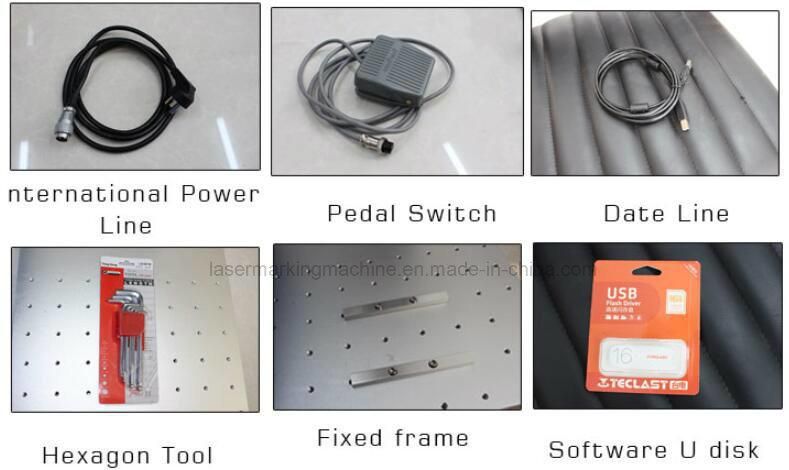

4.Tool box (including allen wrench, foot switch, backup buttons, power wire, user manual, U-disk, marking reference data paper)

5.Machine is plug and play.

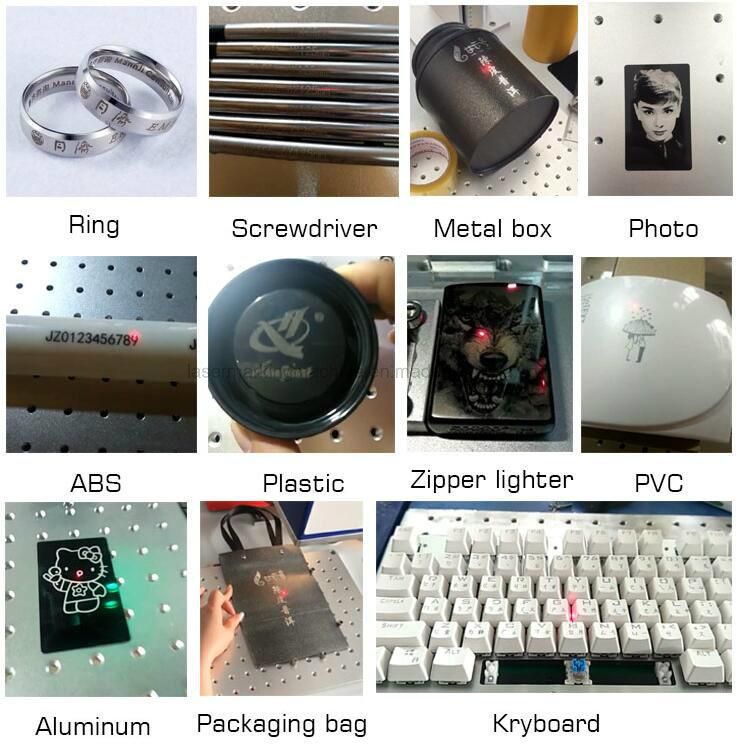

Sample Show :

Application:

1. Black marking on stainless steel

2. Black Marking on Anodized Aluminum

3. Ceramic Marking, Ceramic Scribing, hole drilling

4. Poly-compounds Marking

5. IC Marking

6. Resistor Trimming

7. ITO Film removal



Packaing & Shipping :

Inside Packing

Use professional Stretch Film to cover the whole lathe

Stretch film package with foam protection in each corner.

Outside Packing

Standard export wooden cases and pylwood cases

Save space as much as possible for container loading.

Transport

We support shipping, air, land and express

You can choose the most suitable way of transport


Certification  :


About US  :

Q: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

1) .What work table size you will need?

2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?

A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc.

Usually we need 30% as deposit, balance paid before shipment.

Delivery Time: 3-5 days after payment

MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.

A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?

A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?

A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.

2) Online (skype & phone)

3) Remote desktop software (Teamviewer)

4) Demo Video
