• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

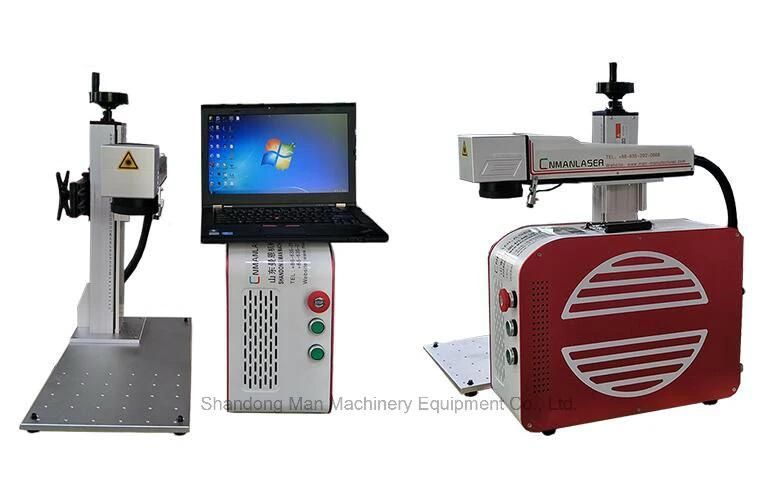

Portable Metal Industrial 20W Laser Marking Machine Price


1. Portable Laser engraving Machine adopts advanced digital high speed scan galvanometer and module design.

2.  It separates laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface.

3.  Mini Fiber Laser engraving Machine widely used in food and beverage, pharmaceutical, tobacco, leather, packaging,

building materials, lighting accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no

pollution.
TECHNICAL  PARAMETER :

Model	MAN-F20/ MAN-F30
Laser power	10W/20W/30W
Laser Wavelength	1065±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	110*110mm/220*220mm/300*300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	10mm/s
Marking depth	0 ~0.5mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	220V±10%/50Hz/4A
Unit power	<0.5kw
Use of the environment	Clean and dust free or dust less
Working condition:Humidity	5%-75%,free of condensed water
Laser module life	>100000 hours
Net weight	60KG
Packing size	700*900*1380mm

  DETAILS   IMAGES :




Main Feature  of the laser machine :

1.Excellent beam quality

 fiber laser marking machine beam quality than conventional solid-state laser marking machine the output of fundamental mode , focal spot diameter

of 10 microns. The divergence angle is 1/4 of the diode-pumped lasers. .

2.Use of low cost

The electro-optical conversion efficiency of up to 30% of the whole power consumption is less than 300W, lamp-pumped laser marking machine 1/10,

significant savings in energy costs.

3.Maintenance-free operation

 Lasers without any maintenance, do not have high adjustment or cleaning the lens.

 4.Long life

 Using a laser diode as a pump source, the average working time of 10 million hours.

5.Processing speed

The processing speed is traditional marking machine 2-5 times
SAMPLE SHOW :

Application Industries:

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products,

sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and

other industries.

Application Materials:

Metals (including rare metals), engineering plastic, electroplating material, coating material, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC,

PES, steel titanium, cooper and other materials.


  PACKAGING &  SHIPPING :

 SERVICES  :

1) Machine has been adjusted before delivery.

2) English software, user manual and detailed installation & training Videos DVD

3) Warranty period: 36 months for complete machine (excluding the consumables),

4) Machine spare parts and repair service is offered in lifetime.

5) Free training is offered in the plant and free samples are available.

6) 24 hours technical support by e-mail, calling or door-to-door service.

7) Professional laser machine supplier with 10 years experiences.

8) International quality certificate: CE, FDA , ISO9001
