• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：750*450*750mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 750*450*750mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

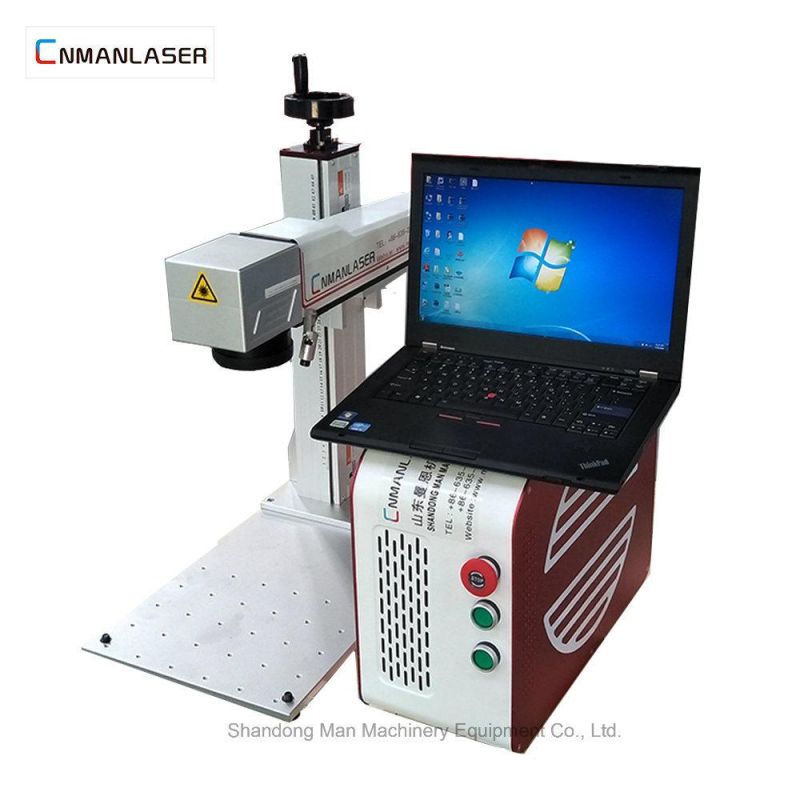

Portable Jcz Control 20w Mini Fiber Laser Marking Machine


1.High electro-optical conversion efficiency, small size, good beam quality, stable performance.

2.Especially suitable for precision, fine marking.

3.Low cost.

4.Maintenance free operation.

5.Long service life.

6.Processing speed.

TECHNICAL  PARAMETER :

Model	CNC fiber laser marking machine
Laser  Power	20w. (10w/30w/50w, etc for option)
Working  Area	110*110mm/150*150mm
Cooling Mode	Air Cooling
Laser Wavelength	10.64um
Response Time	0.5ms
Frequency of pulse	20-100KHz
Marking Depth	≤0.4mm
Marking Speed	≤8000mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01mm
Minimum Character	0.15mm
Repeatability Accuracy	±0.002mm
Resolution Ratio	0.1mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000
Control Software	EZCAD Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST,  etc.
Unit Power	≤1.2KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Supply Voltage	220V/50Hz/10A

  DETAILS   IMAGES:




Optional Laser Parts with machine :



SAMPLE SHOW :

Applicable Industries:

1.Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

2.Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

3.Instrument: Panel Board, Nameplates, Precision equipment, etc.

4.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

5.Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,ect.

6.Lights Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, et


 PACKAGING &  SHIPPING :
1.This fiber laser marking machine price will packed intostandard plywood case, its compressive strength and bearing quality is better.

2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment



SERVICES :

About payment

We accept TT or Western Union. Paypal.

Before you pay,we will make Proforma Invoice for you.all items will listed on there.

FAQ :

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
