20W Portable PVC Wire Fiber Metal Laser Marking Printing Machine
Shandong Man Machinery Equipment Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Semiconductor Laser
Base Info
- Model NO.：MAN-20
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Model：20W,30W
- Marking Area：110mmx110mm;
- Repeat Frequency：10kHz- 100kHz
- Voltage：220V,50Hz
- Markingspeed：7000mm
- Marking Depth：0-0.5mm
- Positioning Way：Red Light
- Cooling Mode：Air Cooling
- Software：Ezcad Software
- Certification：Ce FDA
- Transport Package：Wooden Box
- Specification：860*360*760mm
- Trademark：CNMANLASER
- Origin：Shandong
- HS Code：8456110090
- Production Capacity：500 Set,Month
Description
1
What materials you want to process with?( stainless steel, aluminum, wood, plastic...)
2
Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)
3
Do you need to mark on cylindrical or round surface?
4
Do you have size or weight of the product you need to mark on?
5
Do you buy for personal use or selling?
| Model | MAN-F20/ MAN-F30 |
| Laser power | 10W/20W/30W |
| Laser Wavelength | 1065±10nm |
| Q-frequency | 20KHz~100KHz |
| Divergence | 0.3mard |
| Marking range | 110*110mm/220*220mm/300*300mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 10mm/s |
| Marking depth | 0 ~0.5mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc. |
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| working voltage | 220V±10%/50Hz/4A |
| Unit power | <0.5kw |
| Use of the environment | Clean and dust free or dust less |
| Working condition:Humidity | 5%-75%,free of condensed water |
| Laser module life | >100000 hours |
| Net weight | 60KG |
| Packing size | 700*900*1380mm |

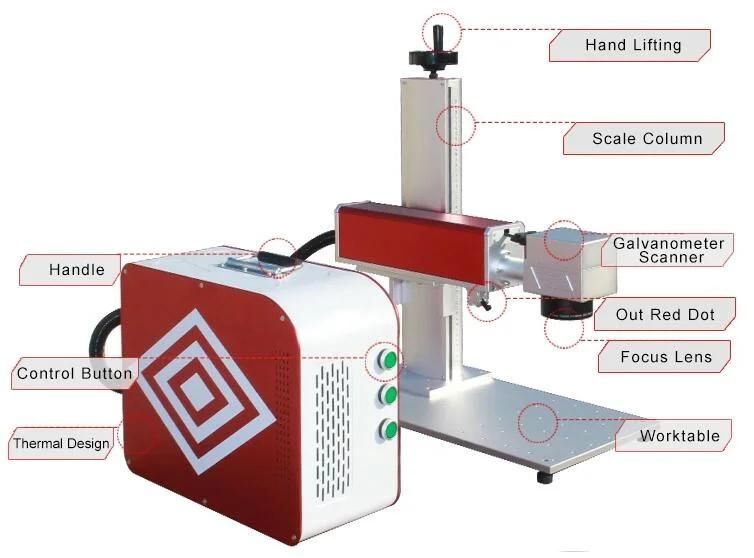

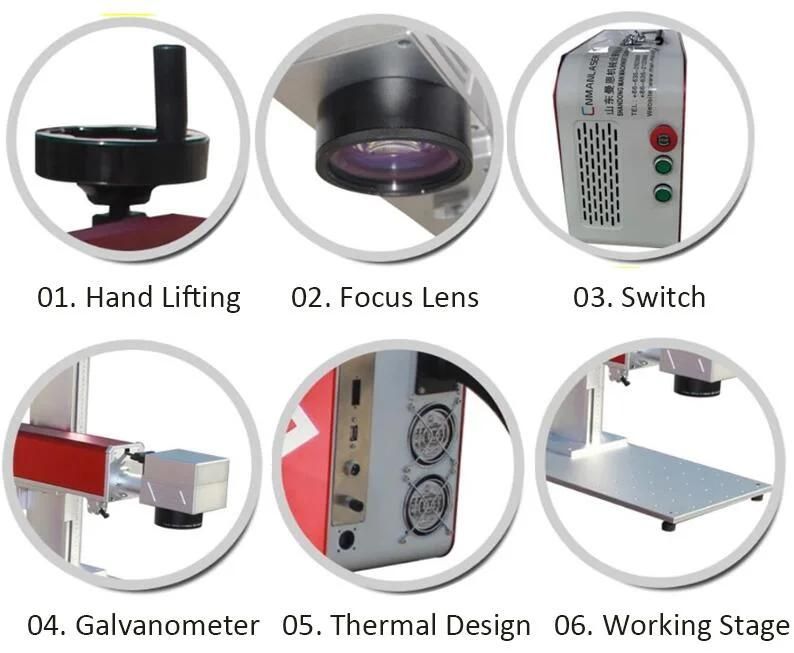

Main Feature of the laser machine :
1. High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.
2. Superior Laser Beam: The definition is 1 micron,10 times as that of traditional products.
3. No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4. High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.
5. The fiber laser beam comes out from the IPG/Raycus fiber device directly,no need to adjust the laser optical path.
6. Low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
7. EzCad Software, USB interface, swift and stable transmission, easy software operation, strong functions.
8. High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.
9. Long lifespan of IPG/Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs)
10. Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
11. Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
12.Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect

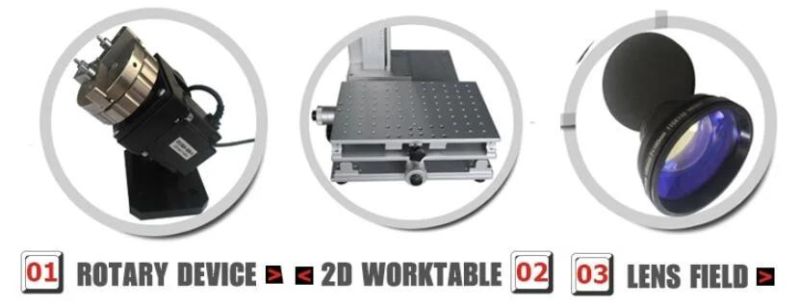

OPTIONAL LASER PARTS THE MACHINE :

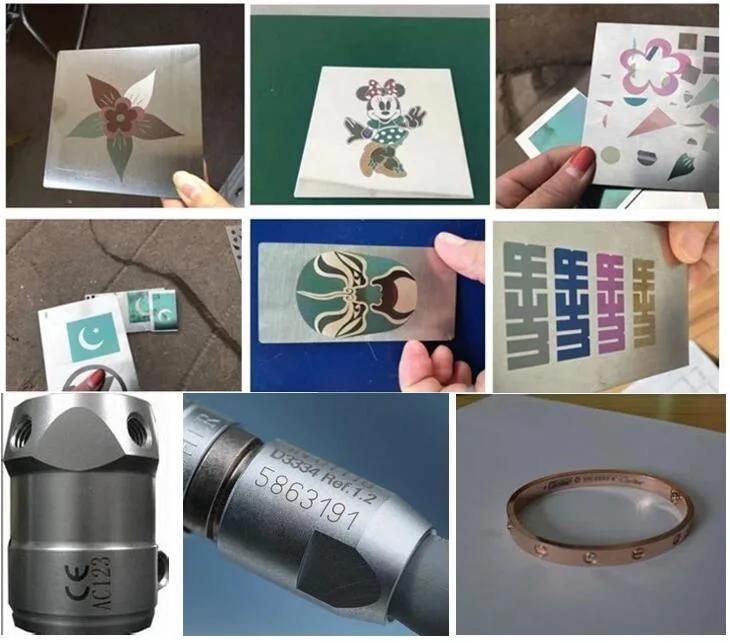

SAMPLE SHOW :
Application Industries:
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products,
sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and
other industries.
Application Materials:
Metals (including rare metals), engineering plastic, electroplating material, coating material, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC,
PES, steel titanium, cooper and other materials.
PACKAGING & SHIPPING :
ABOUT US :
1.[24/18] service is available to each customer. And if any technical questions or problems,
our engineers will help you and give you solutions on the phone or by face-to-face communication online.
2. 3 years warranty is provided.
3. Professional staff for installation and training if needed.
4. Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give full support to our agents at the fair.
We will provide our sample machines, catalog, DVD, manuals, etc. And we promise the final delivery is the same as displayed prototype.
FAQ :
Q1: I know nothing about the fiber laser marking machine, what kind of machine I should choose?
Very easy to choose.
Just tell us what you want to do using this machine. And sending us a sample picture is better.
Then we will send you a perfect solutions and suggestions.
Q2: When I get this machine, but I don't know how to use it. What should i do?
We will send you the English manual and CD video for machine using and maintaining with machine.
If you still have some doubts, we can talk by telephone or skype.
Our engineer can also be sent to your country to install or adjust machine if necessary.
Q3:if some problems happened to this machine during warranty period, what should i do?
We will supply free parts for this machine during the warranty period if machine have any problems.
We also supply free afterservice forever. So any doubts, just let us know, we will give you solutions within 30 min.
Q4: How long is the delivery time?
For the fiber laser marking machine, the delivery time will be 2-3 days
Q5: The payment terms?
1. T/T, 30% in advance, pay the balance before delivery.
2. Through Alibaba-AliEscrow.
3. L/C
