• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

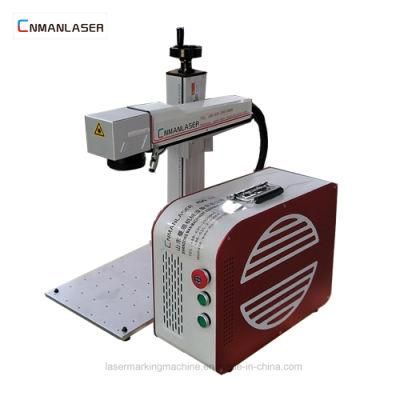

30W 50W Portable Small Mini Desktop Fiber Laser Marking Machine




1. Portable Laser engraving Machine adopts advanced digital high speed scan galvanometer and module design.

2.  It separates laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface.

3.  Mini Fiber Laser engraving Machine widely used in food and beverage, pharmaceutical, tobacco, leather, packaging,

building materials, lighting accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no

pollution.
 TECHNICAL  PARAMETER :

Model	MAN-F20/ MAN-F30
Laser power	10W/20W/30W
Laser Wavelength	1065±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	110*110mm/220*220mm/300*300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	10mm/s
Marking depth	0 ~0.5mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	220V±10%/50Hz/4A
Unit power	<0.5kw
Use of the environment	Clean and dust free or dust less
Working condition:Humidity	5%-75%,free of condensed water
Laser module life	>100000 hours
Net weight	60KG
Packing size	700*900*1380mm

  DETAILS   IMAGES :



Main Feature  of the laser machine :

1.Excellent beam quality

 fiber laser marking machine beam quality than conventional solid-state laser marking machine the output of fundamental mode , focal spot diameter

of 10 microns. The divergence angle is 1/4 of the diode-pumped lasers. .

2.Use of low cost

The electro-optical conversion efficiency of up to 30% of the whole power consumption is less than 300W, lamp-pumped laser marking machine 1/10,

significant savings in energy costs.

3.Maintenance-free operation

 Lasers without any maintenance, do not have high adjustment or cleaning the lens.

 4.Long life

 Using a laser diode as a pump source, the average working time of 10 million hours.

5.Processing speed

The processing speed is traditional marking machine 2-5 times
SAMPLE SHOW :

Application Industries:

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products,

sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and

other industries.

Application Materials:

Metals (including rare metals), engineering plastic, electroplating material, coating material, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC,

PES, steel titanium, cooper and other materials.


  PACKAGING &  SHIPPING :
1.This fiber laser marking machine price will packed intostandard plywood case, its compressive strength

 and bearing quality is better.

2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment


 SERVICES  :

1) before-sale:

We will try to know your requirement about our marking machine and what kind of work you will do..

Then we will offer our best solution for your  requirement. Then it can confirm each customer can get their real needed machine.

2) during production:

We will send photos of machines during making. So customers can know more details about the procession of making their machines and give them

suggestions.

3) before shipping:

We will take delivery photo and confirm  the specification of order to avoid the mistake. Machine will be adjusted before it is delivered.

4) after shipping:

We will check when the machine arrive your sea port and approximate date of arrival.

So customers can know when it will arrive and make enough preparation.

5) after arrival:

We will confirm with customers if machine is in good condition and see if any spare parts missing.

6) about teaching:

There are some manual and video about how to use machine,

if you have question about it, we will have professional technicist to help you install and teach how to use through skype ,calling, video or mail.

7) about warranty:

We offer 3 years warranty, and offer you whole lifetime technique support.
