LCD Touch Screen Fiber Laser Etching Machine 20W for Cables and PVC Pipe

Perfect Laser (Wuhan) Co., Ltd.
  • After-sales Service:Online Support
  • Warranty:1 Year
  • Laser Visibility:Invisible
  • Applicable Material:Metal
  • Cooling System:Air Cooling
  • Technical Class:Pulse Laser

Base Info

  • Model NO.:PEDB-LCD 20W
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Fluid Laser
  • Type:Optical Fiber Laser Marking Machine
  • Marking Method:Scanning Marking
  • Marking Area:110*110mm, 175*175mm
  • Laser Type:Fiber Laser
  • Usage:Glass, Rubber, Cloths, Wood, Plastic
  • Laser Output Power:10W, 30W, 60W
  • Transport Package:Wooden Case
  • Specification:ISO9001 & CE
  • Trademark:Perfect Laser
  • Origin:China
  • HS Code:8456100090
  • Production Capacity:50 units, month

Description

Basic Info.

Model NO. PEDB-LCD 20W Laser Wavelength Fiber Laser Laser Classification Fluid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm/ 175*175mm Laser Type Fiber Laser Usage Glass, Rubber, Cloths, Wood, Plastic Laser Output Power 10W, 30W, 60W Transport Package Wooden Case Specification ISO9001 & CE Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 50 units/ month

Product Description

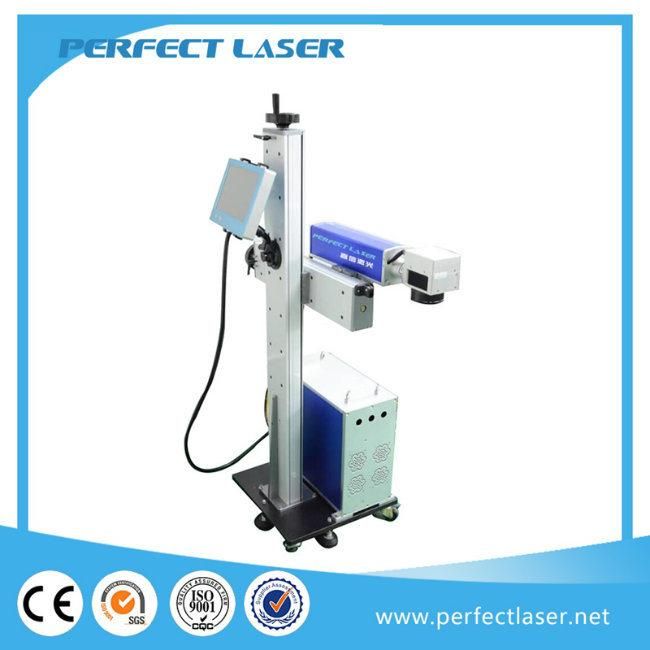

LCD Touch Screen fiber laser marking machine PEDB-LCD 20W
LCD Touch Screen Fiber Laser Etching Machine 20W for Cables and PVC Pipe
LCD Touch Screen fiber laser marking machine Application:
Laser online marking machines are widely used in food, beverage, alcohol, electronic components, handicrafts, chemical and industrial building materials, cables, card printing and other products. They're used to mark expiry date, batch number, shift, bar code, manufacturer's name and logo, etc.. They can mark on metal, plate coating layer on metal surface, PVC, PET, ABS, PP and PS, etc..

LCD Touch Screen fiber laser marking machine Working principle:
When the marked product goes through the laser marking machine on the production line, the photoelectric sensor gives a trigger signal. At the same time, the marking software obtains the current speed of production line by high-speed encoder and automatically amends and compensates for the marking pattern. The laser and galvanometer controlled by bus board emit light according to the corrected pattern to mark the online product accurate.

Hardware features:
The marking process is automatic, high-speed and efficient. The marking effect is fabulous;
It uses self R&D fiber laser, which has advantages of high optical conversion efficiency, small size, low cost, no consumables and maintenance-free;
It bears the capability of 7*24 hours continuous working, which can meet the requirements of large-scale online continuous production;
It can achieve the communication without delay between the laser and the bus board. Compared with the product equipped with the same configuration, the marking speed has doubled;
It adopts the special scanning galvanometer system of the marking system, which can not only improve the overall stability of the product, but also guarantee the good quality in high-speed marking.


Technical data:


Laser type

Fiber laser

Maximum scanning speed

10000mm/s

Laser wavelength

1064nm

Cooling

Forced  air

Average output power

20W(optional)

Supply requirements

220V 50Hz

Repetition frequency

20kHz-60kHz

Consumption

≤0.5kw

Line width

0.15mm

Environmental temperature

-5ºC-45ºC

Minimum character height

0.5mm

Environmental humility

10%-90%

Marking range

110mm×110mm
(differing from the lens)

Maximum speed
adapting production line

200m/min(differing from the
 contents and materials)

Marking lines

Random in range

Software

Special system

Displacement accuracy

±0.001mm

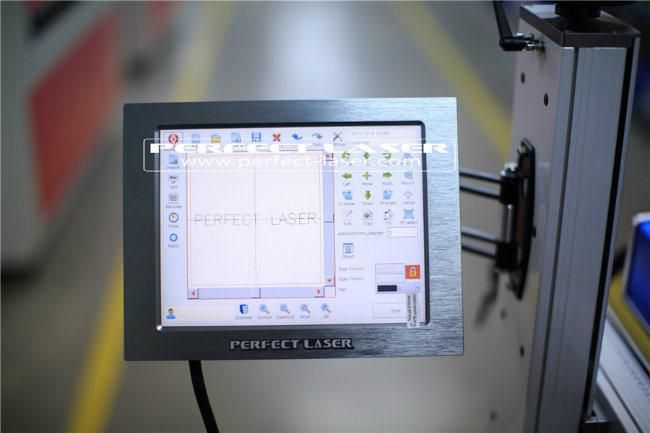

Hand-held display terminal

10.2 inch

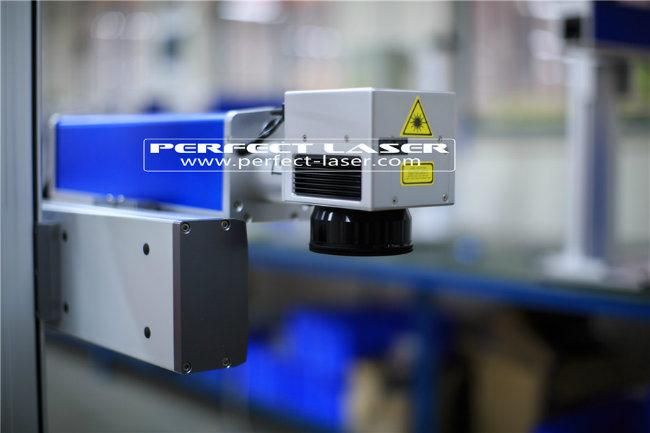

 Machine details:

LCD Touch Screen Fiber Laser Etching Machine 20W for Cables and PVC PipeLCD Touch Screen Fiber Laser Etching Machine 20W for Cables and PVC PipeSamples LCD Touch Screen Fiber Laser Etching Machine 20W for Cables and PVC Pipe
