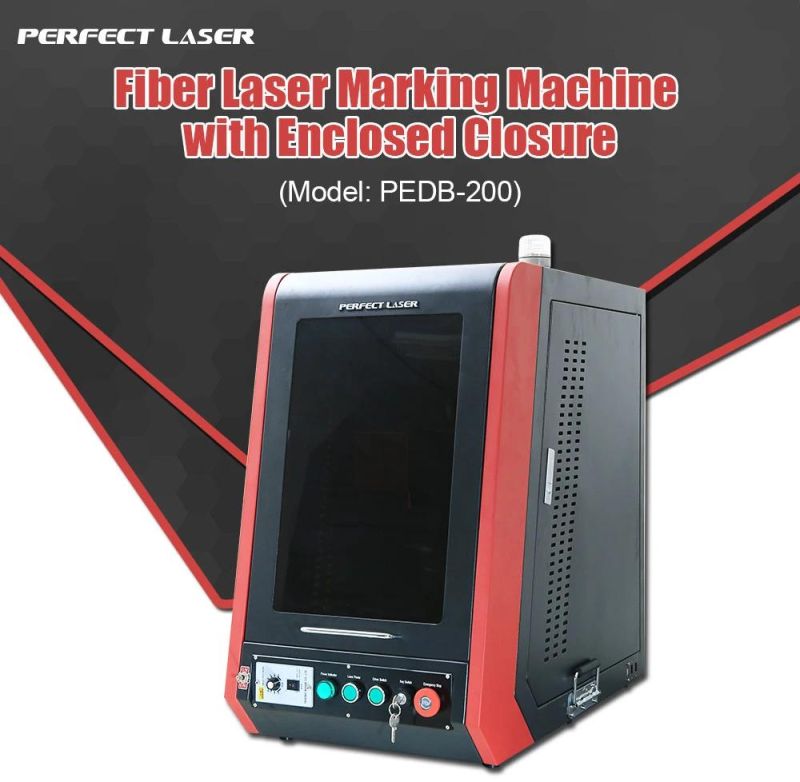

Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine

Perfect Laser (Wuhan) Co., Ltd.
  • Laser Visibility：Visible
  • Applicable Material：Metal and Non-Metal Material
  • Cooling System：Air Cooling
  • Technical Class：Continuous Wave Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Solid Laser

Base Info

  • Model NO.：PEDB-200
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Usage：Metal
  • Engraving Machine Type：Laser Engraving Machine
  • Power：Small Power
  • Drive Type：Stepper Drive
  • Control：CNC
  • Certification：CE
  • Laser Type：Fiber Laser
  • Working Voltage：220V ,110V 50,60hhz
  • Transport Package：wooden case
  • Specification：ISO 9001 & CE&FDA
  • Trademark：Perfect Laser
  • Origin：China
  • HS Code：8456100090
  • Production Capacity：4000 sets,year

Description

Basic Info.

Model NO. PEDB-200 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Usage Metal Engraving Machine Type Laser Engraving Machine Power Small Power Drive Type Stepper Drive Control CNC Certification CE Laser Type Fiber Laser Working Voltage 220V /110V 50/60hhz Transport Package wooden case Specification ISO 9001 & CE&FDA Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 4000 sets/year

Product Description

 Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
 Application Field:

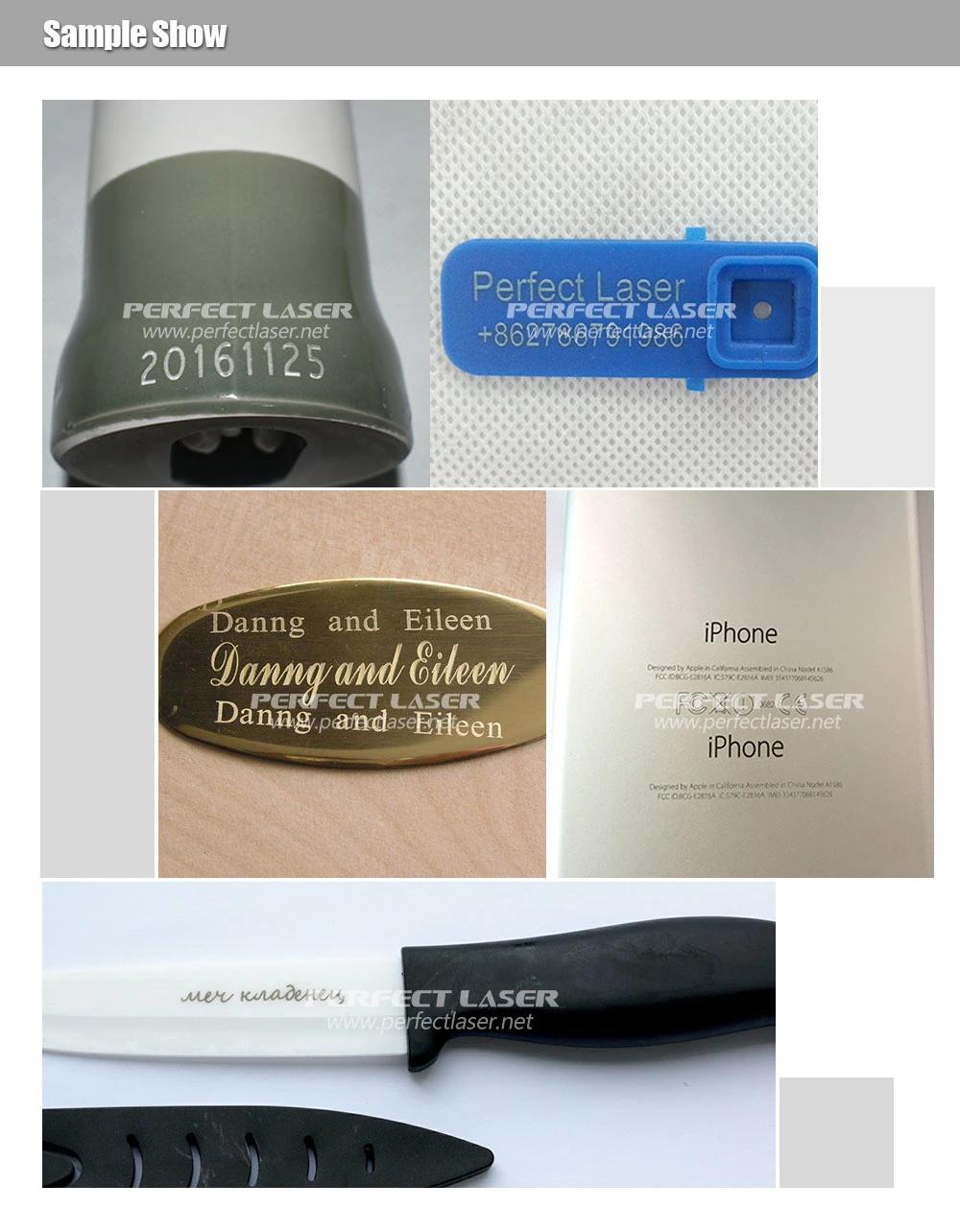

Diode Laser Marking Machine (PEDB-200) is used for high precision marking on small products. The main application areas are: Metal tools, handicrafts (jewelers, key holders, zippers, etc. ), electronic components, mobile communications chips, panels, sophisticated equipment, measuring tools, automobile parts.
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Product Features

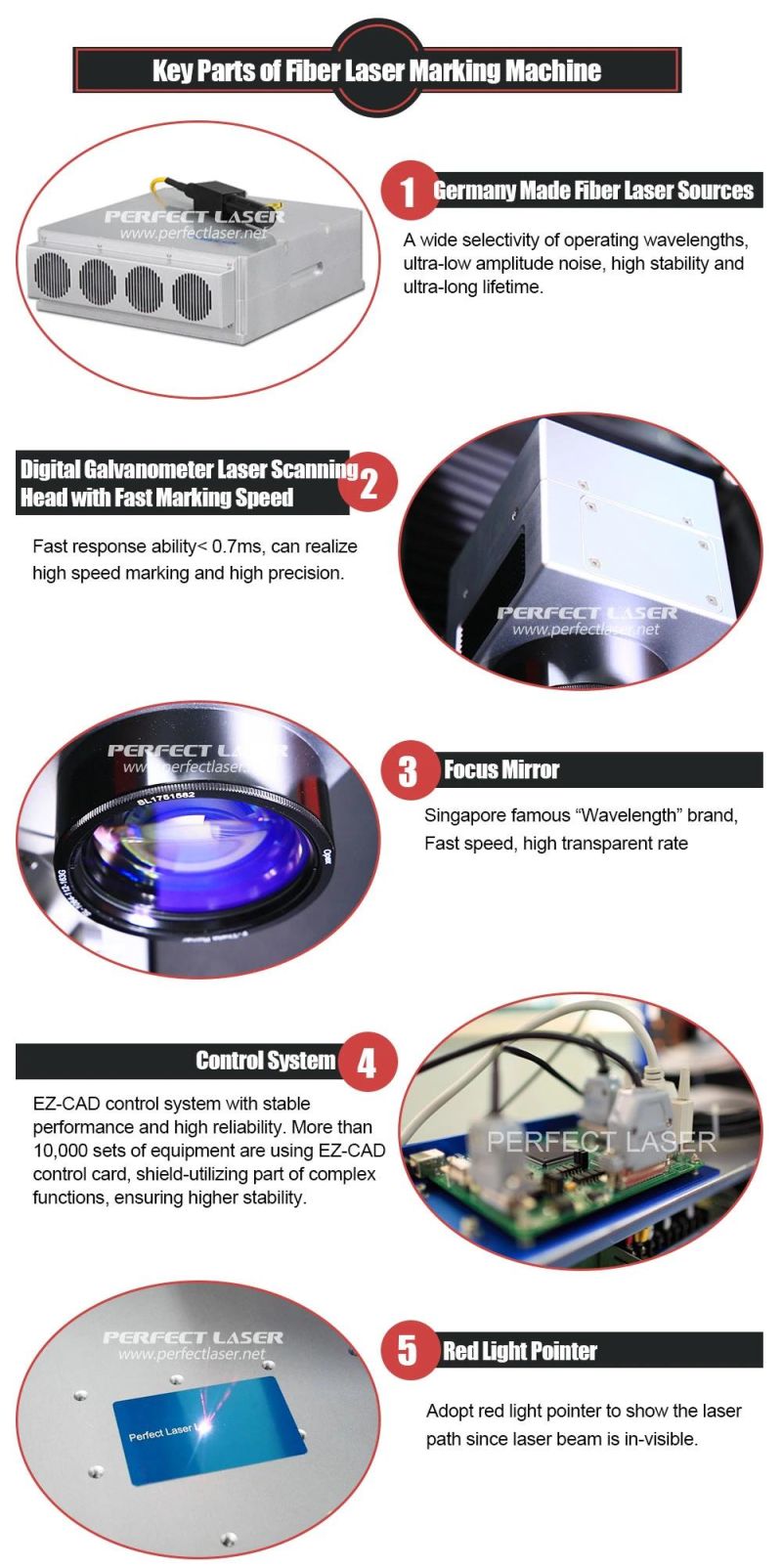

1) Taking diode pump solid laser device as the light source, 2D fast-speed scanning lenses is swing as the scheduled angles under the controlling of the computer. The laser focuses on the surface of the work piece by F-lenses to form images and realize marking and graph processing.
2) By applying the national advanced semiconductor pump technology, it has the high-rate of photoelectric conversion.
3) Using fast-speed scan lens, it can scan the graph in shortest time & finish fine marking process.
4) No consumables, Free-maintenance. The operation cost is low.
5) The beam module is good and can reach the perfect artificial efficient which the traditional YAG pump laser machine can not reach.
6) The system has stable performance.
Laser Output Power:50W / 75W / 100W
Standard Marking Area:110 mm×110mm
Optional Marking Area:70mm×70mm  /  175 mm×175mm (optional)
Marking Depth:0.01~0.3mm
Marking Speed:7000mm/second
Repeated Accuracy:0.0002mm
Minimum Character:0.2mm
Minimum Line Width:0.015mm
Laser Wavelength:1064μm
Power Supply:380V/50HZ
Machine Power:3KW
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine
Gears / Shafts / Bearings / Clutch / Metal Fiber Laser Marking Engraving Etching Machine

 --------------------------------------------------------------------------------------
