• Model NO.：GS-3015,GS-6015
• Laser Technology：Laser Fusion Cutting
• Model：GS-3015
• Laser Power：500W;700W;1000W;1500W (Optional)
• Working Area：3000*1500mm
• Overall Power Consumption：<12kw
• Transmission Mode：Gantry Driver Optional
• Working Voltage：380V50Hz(60Hz)
• Dimension：4800*2650*1750mm
• Transport Package：Packaged by Plywood
• Specification：CE, SGS, FDA, Bureau, ISO
• Trademark：GLORYSTAR
• Origin：China
• HS Code：8456100090
• Production Capacity：5000PCS,Years

Basic Info.

Model NO. GS-3015/GS-6015 Laser Technology Laser Fusion Cutting Model GS-3015 Laser Power 500W;700W;1000W;1500W (Optional) Working Area 3000*1500mm Overall Power Consumption <12kw Transmission Mode Gantry Driver Optional Working Voltage 380V50Hz(60Hz) Dimension 4800*2650*1750mm Transport Package Packaged by Plywood Specification CE, SGS, FDA, Bureau, ISO Trademark GLORYSTAR Origin China HS Code 8456100090 Production Capacity 5000PCS/Years

Product Description

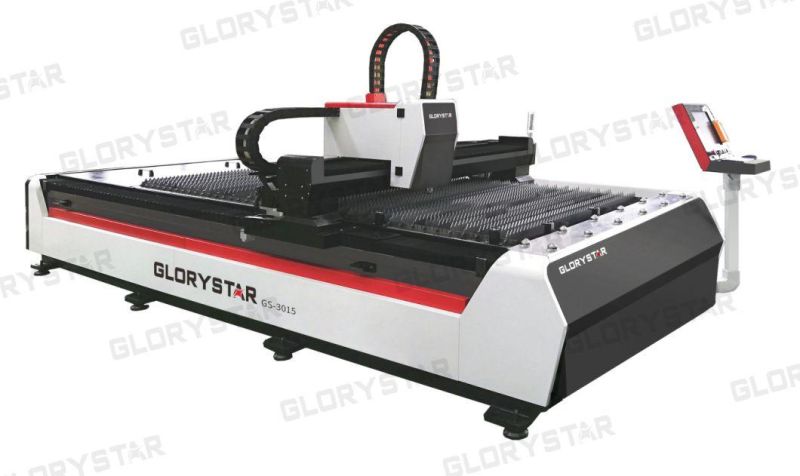

CNC FIBER LASER CUTTING MACHINE


Product Features
Laser cutting machine :the frame is precisely welded by argon arc, whole structure is gantry type; 600 0C high temperature annealing treatment and 12 meters large CNC gantry fine milling ensure the frame regularly to run for 20 years without deforming. Equipped with the most advanced wireless hand held terminal,it can perform processing by remote control. The machine adopts imported Germany CNC system, high-performance AC servo motor, high-strength cast-aluminum cross girder. It is a high-tech product integrated with advanced technology such as pneumatic.

Features
Imported high precision ball screw transmission, imported high precision Taiwan linear guide rail,Japan Panasonic servo motor and driver system,German professional laser cutting head, imported French high precision gearbox.Optionally equipped with device for cutting round pipe.

Applicable Materials
Especially suitable for contact-free cutting, hollowing or drilling of metal sheets in 0.5mm to 14mm,e.g.,stainless steel,carton steel,galvanized sheet,thin aluminum and thin copper etc. Fast ,precise and energy-efficient.

Technical Data

Laser Type	Fiber laser generator
Working Area	3000mm*1500mm
Laser Wavelengh	1064nm
Rated Output Power	500W
Beam Quality	< 0.373mrad
X axis Travel Distance	3030mm
Y axis Travel Distance	1520mm
Z axis Travel Distance	105mm
Cooling Mode	Water cooling (1HP)
Repeat Positioning Accuracy	<=±0.02mm/m
Maximum Load of Worktable	800KG
Working Voltage	3 phase 380V ±5%/50Hz/60Hz/70Hz
Main Power Protecting Lever	Ip54
Maximum Cutting Speed	30m/min
Minimum Line Width	0.15mm
Maximum Cutting Thickness	10mm
G.W.	4.5T


Key Configuration Description:
1.Laser generator
Adopts World's top brand ROFIN originally imported fiber laser source, German ROFIN laser technology ("ROFIN") is the world's largest specialized in high-power fiber lasers and core device development and large-scale production enterprise.
Cost-effective: Fiber lasers with high electro-optical conversion efficiency, the photoelectric conversion efficiency of fiber laser is 15 times higher than the traditional laser, high electro-optical conversion efficiency makes the power consumption of machine and chillers to be the lowest. It is currently the most efficient mainstream stable-performance laser generator.
Perfect spot quality: the same fiber laser generator can be used for welding, cutting and drilling.
Low consumable parts: there is no need for replacement of lamps or bar sticks.
High stability: Fiber laser series adopt the design to make resonance cavity in the optical fiber, to ensure high-power laser output, meanwhile, reduce the volume of the laser generator, improve the beam quality, beam propagation in the fiber, the light path is not exposed to the air to avoid contamination of the optical path and has long-running stability. Therefore, surface laser cutting machine can mate in more demanding industrial environments, and long working life.

2.Machine Body:
bed adopts welded steel box type (not square tube welding), entire high-temperature annealing, stress relief treatment; guide-rail base is milled by large gantry milling machining at one time.
Host part is composed of the bed, cross-gride, worktable, Z-axis device, control system, gas unit, water unit and other components.
System controls X, Y, Z-axis AC servo motor, thereby driving the cutting head to achieve stable, reliable, high-speed reciprocating motion.
Fully enclosed device, wherein the dust cover light weight can achieve reliable operation;

X, Y axis linear guide are imported precision products, the use of photoelectric sensors and other precision positioning components effectively ensure the accuracy of the drive.
Long range Z-axis travel, it can easily process finished products.

3.Workbench Units:
The level of double-track high-speed exchange of table design, 10 seconds to complete the exchange, so it can perform processing and prepare for next material uploading simultaneously, which dramatically improves the working efficiency.
No pneumatic lifting step, greatly reduce the failure rate.
Each table can load up to 800KGS, when processing parts, clamping cylinder around will make the worktable is clamped tightly.

4. CNC control system
Control system adopts the world's top brand, all the famous
brand high power laser cutting machine is equipped with
Germany BECKHOFF system, which has very high prestige
in the world.
High precision, high speed and high stability.
Friendly man-machine interface, easy operation, powerful and comprehensive in industrial applications, it can meet all kinds of craft requirement.
Detailed training materials will be supplied with software instruction

5.laser cutting head
Laser cutting head using German technology fiber laser machine for cutting head
ensure high cutting accuracy and cutting efficiency.
The cutting head is equipped with non-contact capacitive sensing device.
Cutting head equipped with extremely sensitive non-contact capacitive sensing device that can achieve very stable Z axis automatic tracking function, eliminating the effects due to the uneven sheet cutting quality produce, thereby increasing the product pass rate.
Laser cutting machine is equipped with 5.0 focusing lens, to meet customer cutting metal sheet.
Replace the drawer-type lenses, the entire replacement process easy and fast. Optical system having a high transmission
Efficiency, stable, calibration light, convenient maintenance, etc., the entire optical system is protected by clean air, which ensure that the cutting head of the optical lens and nozzle from contamination.
