1000W Newest Metal Fiber laser Makinesi
Dongguan Glory Star Laser Technology Co., Ltd.- Application：Agriculture Machinery, Automotive Industry, Advertising Industry, Metal Processing
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Fiber Laser
Base Info
- Model NO.：GS-3015,GS-6015
- Laser Technology：Laser Control Fault Cutting
- Red White and Black：Packed in Playwood
- X Axis Travel Distance：3030mm
- Y Axis Travel Distance：1520mm
- Z Axis Travel Distance：120mm
- Transport Package：Packaged by Plywood
- Specification：CE, SGS, FDA, Bureau, ISO
- Trademark：GLORYSTAR
- Origin：China
- HS Code：8456100090
- Production Capacity：5000sets,Year
Description

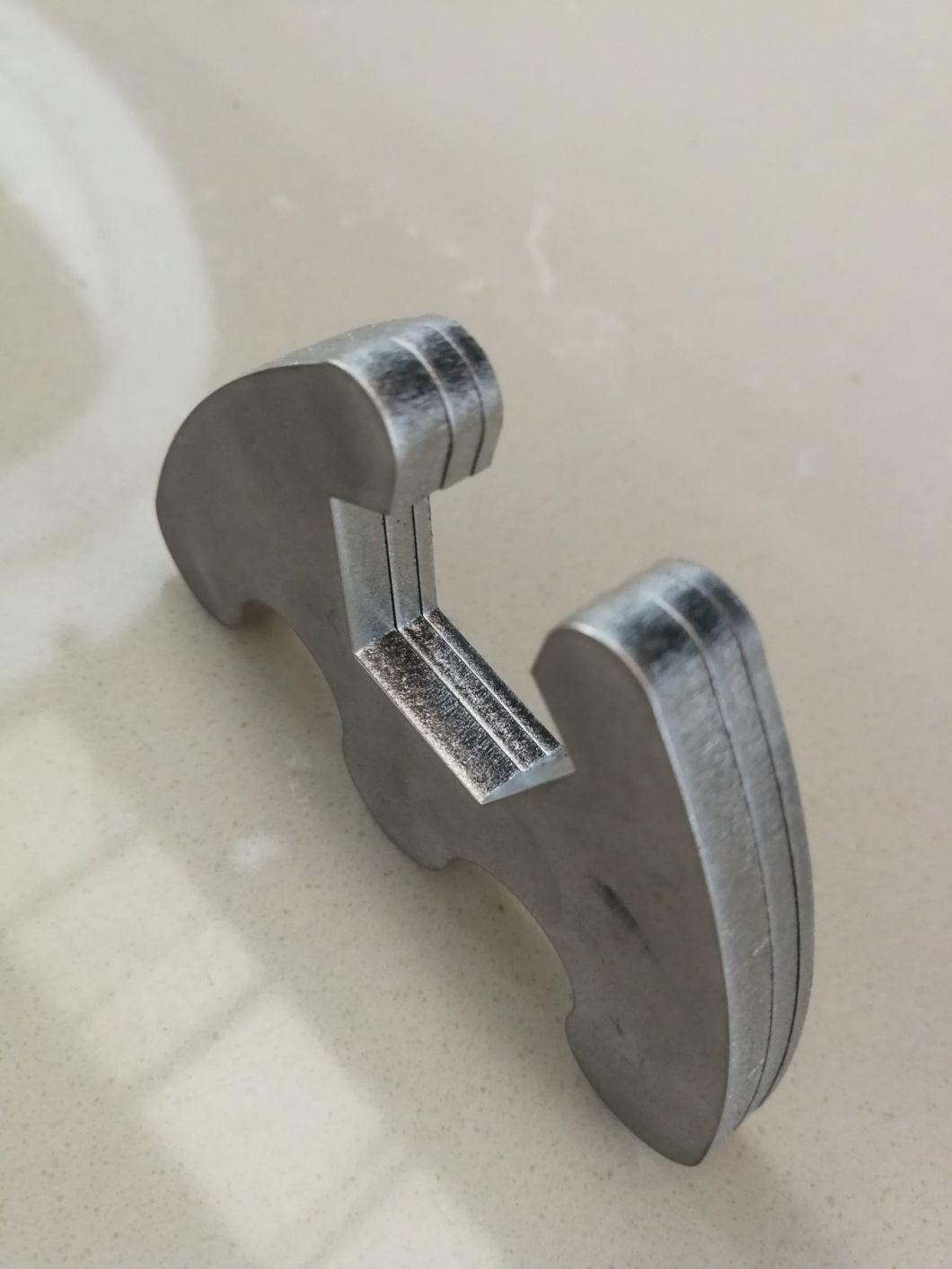

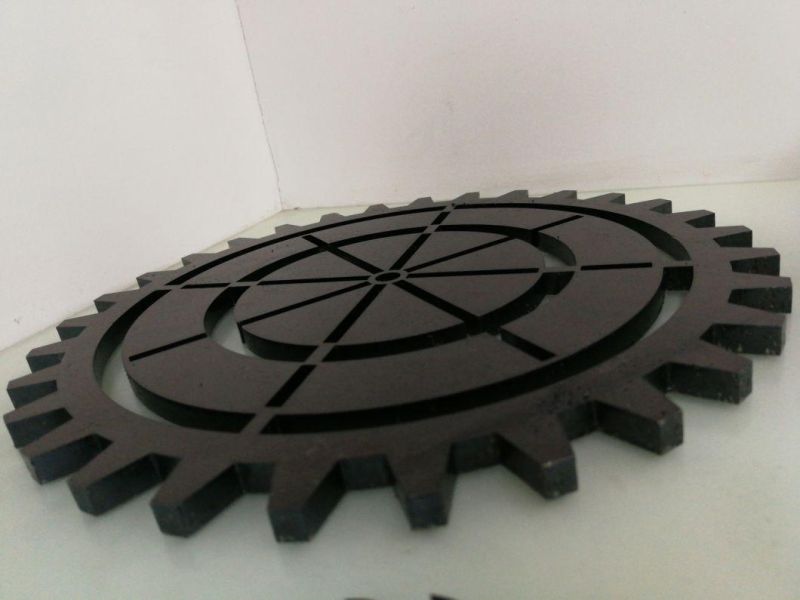

1kw cutting 6mm carbon steel
1KW Cutting stainless steel 6mm 4mm 2mm
Technical Data
| Working area | 3000mm*1500mm |
| X axis travel distance | 3030mm |
| Y axis travel distance | 1520mm |
| Z axis travel distance | 120mm |
| X /Y axis geometry positioning accuracy | ≤ 0.05mm |
| X/Y axis repeat positioning accuracy | ≤0.03mm |
| X/Y axis max. positioning speed | 100m/min |
| X/Y axis max. acceleration | 1G |
| Cutting line width | 0.1mm-0.5mm |
| Cutting roughness | Ra3.2-25.4um |
| cutting capacity | 0.5mm-14mm |
| Min. setting unit | 0.001mm |
| Floor size | 8800mm*3160mm |
| Main body dimension | 8800mm*3160mm*2000mm |
| CNC system | CYPCUT |
| Dispaly | 17"LCD |
| Worktable | Exchange worktable |
| Worktable max. Loading capacity | 1000KG |
| Unit weight | 8T |
| Overall installed electricity capacity | 50KVA |
| phase | 3 |
| Rated Voltage | 380V |
| Frequency | 50Hz |
| Total power protecting level | 1p54 |

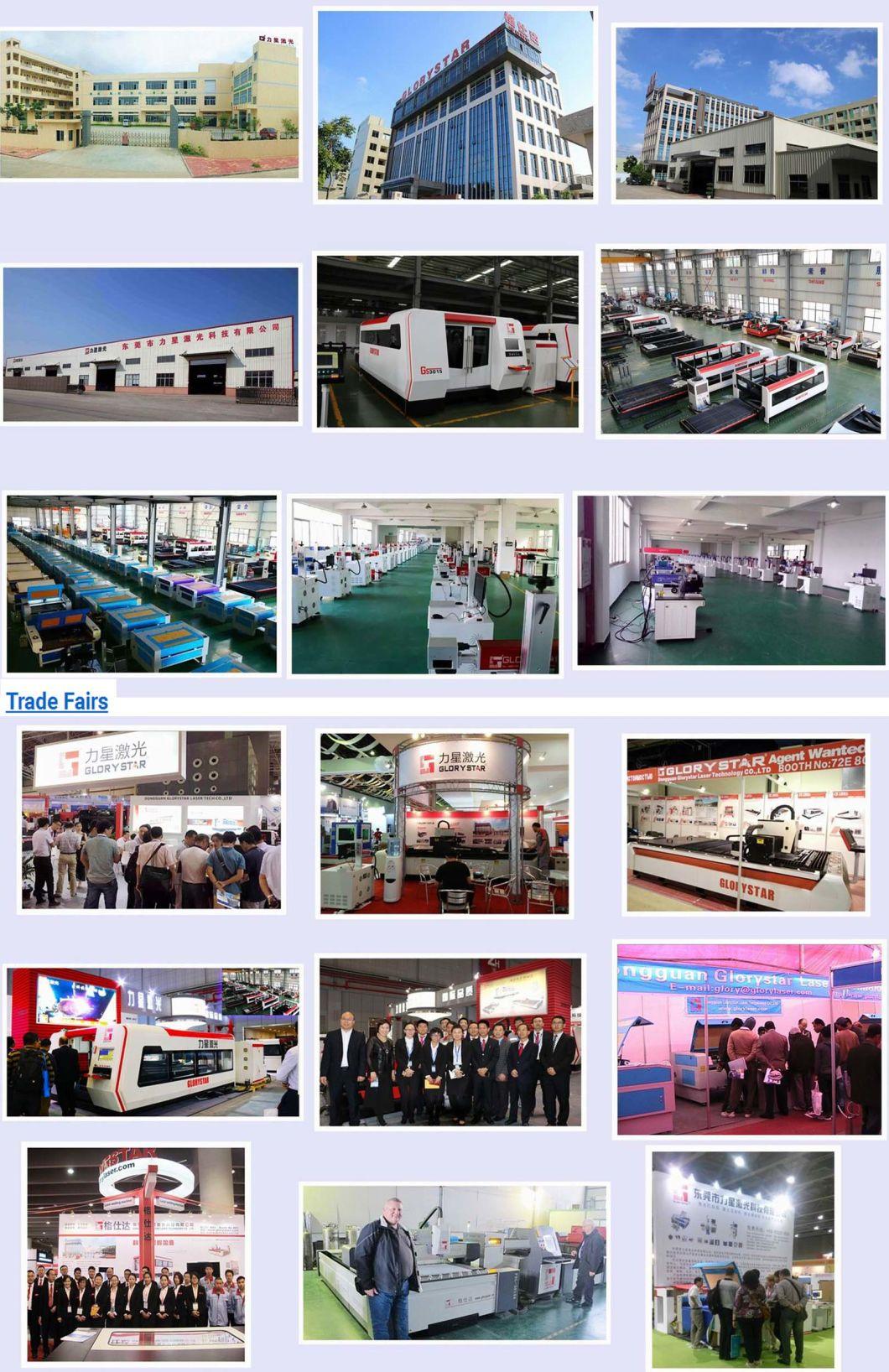

Our Factory
After-sale Sevice
<<< We offer professional after-sales installation and guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.
<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service
<<<Equipment warranty period of one year, optical lenses can not be maintained. Laser generator has 12months warranty, machine maintenance of life.
