• Model NO.：GS-3015,GS-6015
• Laser Technology：Laser Control Fault Cutting
• Model：GS-3015
• Laser Power：500W;700W;1000W;1500W (Optional)
• Working Area：3000*1500mm
• Overall Power Consumption：<12kw
• Transmission Mode：Gantry Driver Optional
• Working Voltage：380V50Hz(60Hz)
• Dimension：4800*2650*1750mm
• Transport Package：Packaged by Plywood
• Specification：CE, SGS, FDA, Bureau, ISO
• Trademark：GLORYSTAR
• Origin：China
• HS Code：8456100090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. GS-3015/GS-6015 Laser Technology Laser Control Fault Cutting Model GS-3015 Laser Power 500W;700W;1000W;1500W (Optional) Working Area 3000*1500mm Overall Power Consumption <12kw Transmission Mode Gantry Driver Optional Working Voltage 380V50Hz(60Hz) Dimension 4800*2650*1750mm Transport Package Packaged by Plywood Specification CE, SGS, FDA, Bureau, ISO Trademark GLORYSTAR Origin China HS Code 8456100090 Production Capacity 5000 Sets/Year

Product Description

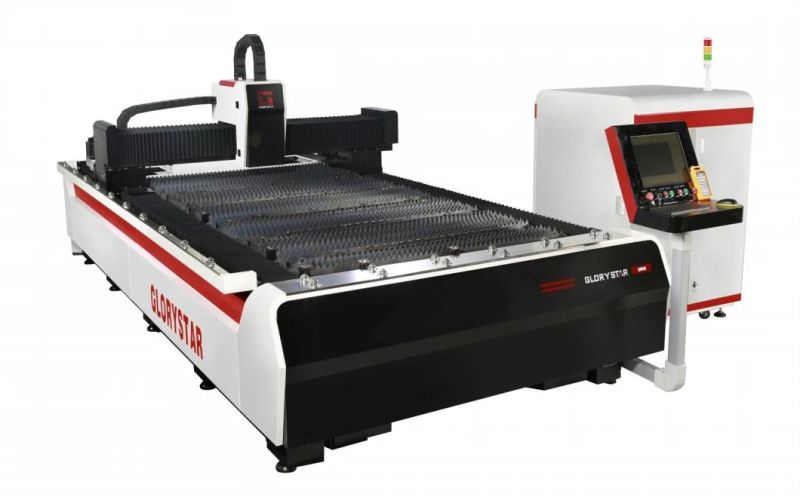

Golrystar 2000W Ipg Metal Fiber Laser drilling machine for metal

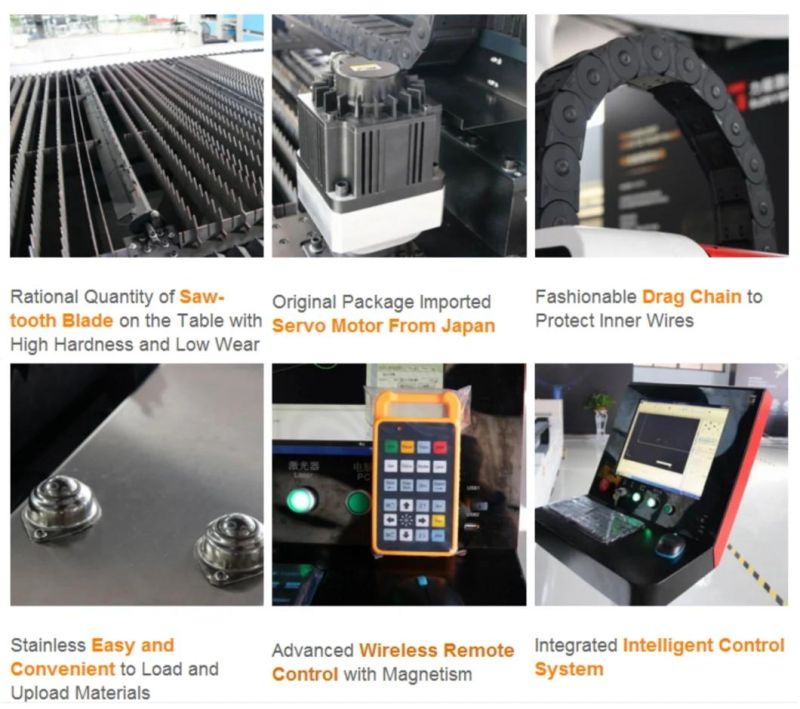

Features

<<<Servo motor and driver is imported from Japan

<<<Reduction gearbox imported from France

<<<Specially combined motor lubrication system and smoke filter

<<<Integrated structure design, nice-looking and fashionable appearance

Application

<<<Applicable Industry

Application in sheet metal processing,cookware,advertising,LED lighting,electrical applicance,auto parts,machinery and equipment,household applicances and other high precision parts and metal processing industries.

<<<Applicable Materials

Widely used to all kinds of metal materials with non-contact fast cutting,engraving and drilling,such as carbon steel,stainless steel,alloy,manganese steel,galvanized steel,aluminum,copper and metal pipe processing,etc.

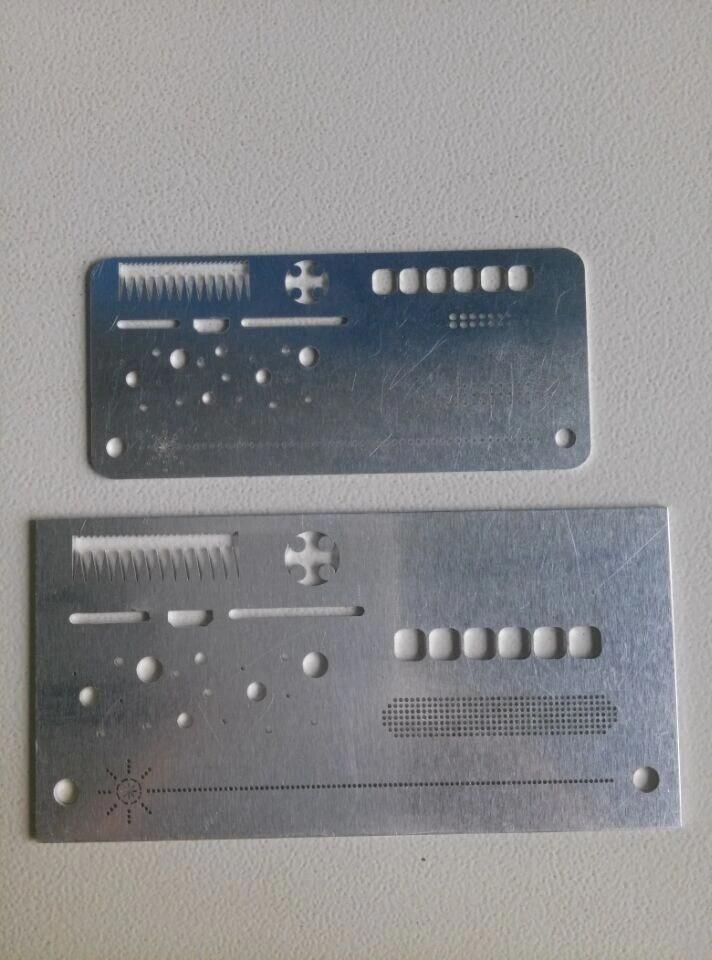

Samples Show



Technical Data


Working area	3000mm*1500mm
X axis travel distance	3030mm
Y axis travel distance	1520mm
Z axis travel distance	120mm
X /Y axis geometry positioning accuracy	≤ 0.05mm
X/Y axis repeat positioning accuracy	≤0.03mm
X/Y axis max. positioning speed	100m/min
X/Y axis max. acceleration	1.5G
Cutting line width	0.1mm-0.5mm
Cutting roughness	Ra3.2-25.4um
cutting capacity	0.5mm-14mm
Min. setting unit	0.001mm
Floor size	8800mm*3160mm
Main body dimension	8800mm*3160mm*2000mm
CNC system	CYPCUT
Dispaly	19"LCD
Worktable	Exchange worktable
Worktable max. Loading capacity	1000KG
Unit weight	8T
Overall installed electricity capacity	50KVA
phase	3
Rated Voltage	380V
Frequency	50Hz
Total power protecting level	1p54

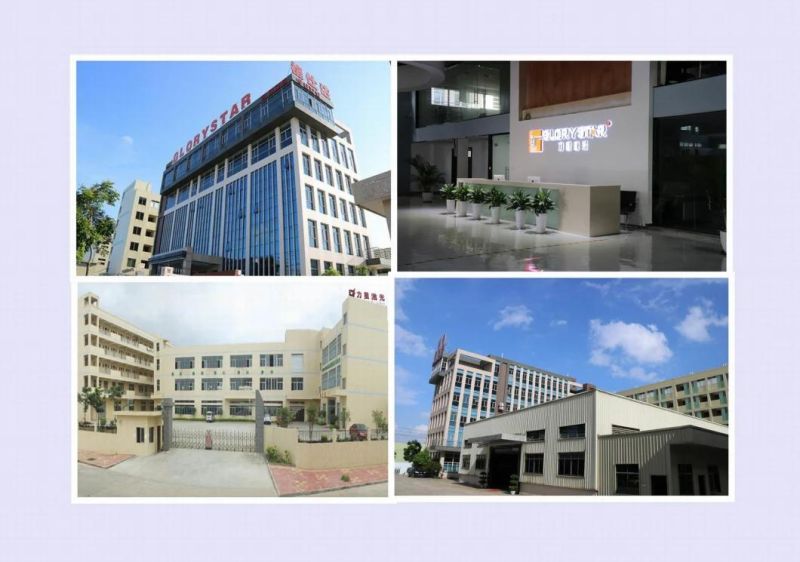

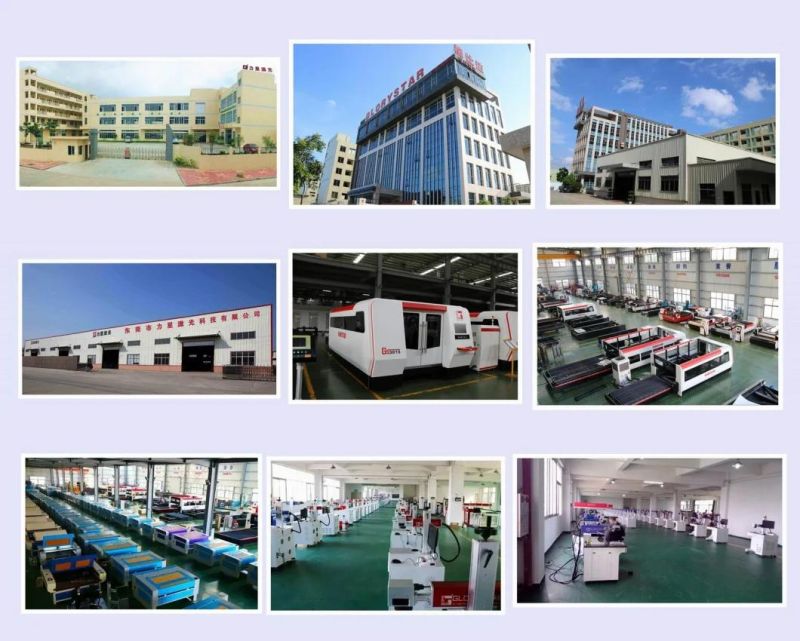

Our Factory




After-sale Sevice

<<< We offer professional after-sales installation and  guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.

<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service

 <<<Equipment warranty period of one year, optical lenses can not be maintained. Laser generator has 12months warranty, machine maintenance of life.


Trade Fair





About Glory Star

<<<<<Dongguan Glory Star Laser Technology Co., LTD, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment. The company owns office building, R&D Building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory. The company's main products are metal laser cutting machines, non-metal laser cutting machines, laser marking machines,laser welding machines and bending machines. The annual production capacity of 8,000sets of products sold in more than 100 countries and regions.

We are in top 3 laser manufacture in China,our main products are fiber laser cutting machine ,Co2 laser cutting machine ,laser marking machine ,laser welding machine and CNC bending machine.We are specially for laser technology for more than 15 years,we have our research and development department. now we have more than 300 employees.

May I know more about your company and your product information?

What is the main material do you want to cut?what is the max thickness of it? What is the industry it will applied to ? looking forward to your early reply .

Many thanks & Best regards.
