• Model NO.：DW20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certification：Ce, ISO, FDA
• Voltage：AC220V,50Hz
• Laser Power：10W 20W 30W 50W
• Laser Type：Fiber Laser
• Cooling Way：Air Cooling
• Machine Warranty：2 Years for Machine Body
• Minimum Line Width：0.01mm
• Minimum Character：0.15mm
• Repeatability Accuracy：±0.002mm
• Operating Temperature：5-40ºC
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• HS Code：8656100009
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification Ce, ISO, FDA Voltage AC220V/50Hz Laser Power 10W 20W 30W 50W Laser Type Fiber Laser Cooling Way Air Cooling Machine Warranty 2 Years for Machine Body Minimum Line Width 0.01mm Minimum Character 0.15mm Repeatability Accuracy ±0.002mm Operating Temperature 5-40ºC Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8656100009 Production Capacity 500 Sets Every Year

Product Description

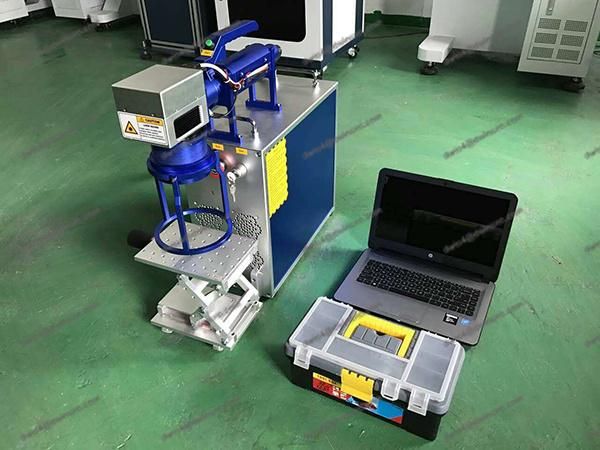

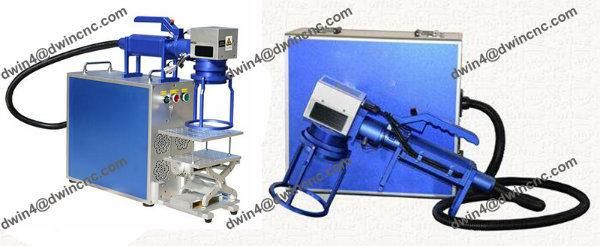

Metal Laser engraving marking machine/20W Color fiber laser marking price

Features of fiber laser marking machine for metals
1. Fmous-brand semi-conductor module, beam quality good, and laser power is stabile, life time over 10k hours.
2. Sharp laser beam, high speed and precise marking, beam stable and reliable, low processing costs.
3. Software: with red preview, mirror marking, graphical alignment, hierarchical set parameters functions.
4. With professional constant temperature water cooling system, 24-hour continuous working is reliable. Be applicable to production lines.
5. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW,
AUTOCAD,   PHOTOSHOPetc. Support PLT, AI, DXF, BMP and others, directly using SHX, TTF font.
6. Rotary equiment optional 8,no consumable 9.make mark on metal with perfect sign. cable laser marking machine





Machine paramter

laser wavelength	1060nm	beam quality	<1.5
laser repetition	≤100khz	standard marking area	110mm x 110mm
making depth	≤1.5mm(can be adjustable)	marking speed	≤12000mm/s
min. line width	0.01mm	min. character size	0.05mm
repetition precision	±0.001mm	power consumption	≤500w
cooling method	air cooled	power supply	220v/50hz/10a

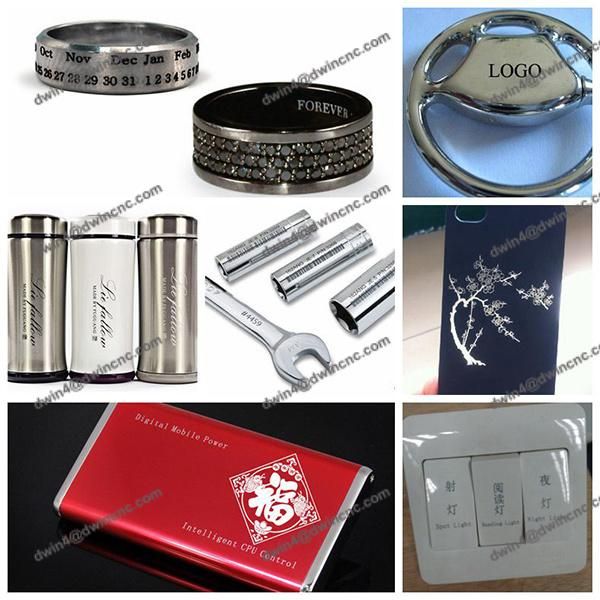

Machine Application
Any metal and nonmetal materials,flexible paper label/industrial plastic/rubbers/powder-coating/electroplate materials and so on. Automotive vechile/automobile part/motorcycle parts/sanitary ware/telecom apparatus/electronic parts/plastic key button/integrated circuit(IC) and so on.
