• Model NO.：DW20F
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certification：Ce, ISO, FDA
• Voltage：AC220V,50Hz
• Laser Power：10W 20W
• Laser Type：Fiber Laser
• Cooling Way：Air Cooling
• Max.Marking Depth：≤0.4mm
• Marking Lines：1-10 Marking Lines
• Minimum Line Width：0.01mm
• Minimum Character：0.15mm
• Repeatability Accuracy：±0.002mm
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• HS Code：8656100009
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW20F Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification Ce, ISO, FDA Voltage AC220V/50Hz Laser Power 10W 20W Laser Type Fiber Laser Cooling Way Air Cooling Max.Marking Depth ≤0.4mm Marking Lines 1-10 Marking Lines Minimum Line Width 0.01mm Minimum Character 0.15mm Repeatability Accuracy ±0.002mm Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8656100009 Production Capacity 500 Sets Every Year

Product Description

High Speed Metal Marking Machine Fiber Laser Marking


Features of fiber laser marking machine for metals
1. Fmous-brand semi-conductor module, beam quality good, and laser power is stabile, life time over 10k hours.
2. Sharp laser beam, high speed and precise marking, beam stable and reliable, low processing costs.
3. Software: with red preview, mirror marking, graphical alignment, hierarchical set parameters functions.
4. With professional constant temperature water cooling system, 24-hour continuous working is reliable. Be applicable to production lines.
5. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW,
AUTOCAD,   PHOTOSHOPetc. Support PLT, AI, DXF, BMP and others, directly using SHX, TTF font.
6. Rotary equiment optional 8,no consumable 9.make mark on metal with perfect sign. cable laser marking machine
Why it has to be this one:

1. Marking high precision spare parts, such as Gold, Silver, Jewelry, Electronic spare parts etc
2. High speed marking speed and perfect marking effects.
3. Working time: 200,000 hours (USA model), without any consumptive materials.
4. High spee with galvanometer
5. Small volume, light weight
6. Low power , consumption power is less than 500W
7. Completely air cooling, low energy consumption
8. No influence of the severe environment and temperature change. If there is no power, battery and car cigarette lighter can be used for working
9. geatly reduce the depreciation cost, satisfying customers' requirement for  largestable quantities production.
Technical Data:

No.	Description	Parameter
1	Marking area	110*110mm(option:150*150mm,200*200mm,300*300mm)
2	Laser power	10W (20w/30w/50w,etc for option)
3	Marking speed	≤8000mm/S
4	Max.Marking Depth	≤0.4mm
5	Laser Wavelength	1064nm
6	Marking lines	1-10 marking lines(in the marking area)
7	Minimum line width	0.01mm
8	Minimum character	0.15mm
9	Resolution ratio	0.01mm
10	Repeatability accuracy	±0.002mm
11	Operating temperature	5-40ºC
12	Unit Power	≤500W
13	Graphic format supported	BMP,JGP,PNG,DXF, etc.
14	Supply Voltage	110V/50HZ/10A(option:220V)

Machine samples
Any metal and nonmetal materials,flexible paper label/industrial plastic/rubbers/powder-coating/electroplate materials and so on. Automotive vechile/automobile part/motorcycle parts/sanitary ware/telecom apparatus/electronic parts/plastic key button/integrated circuit(IC) and so on.

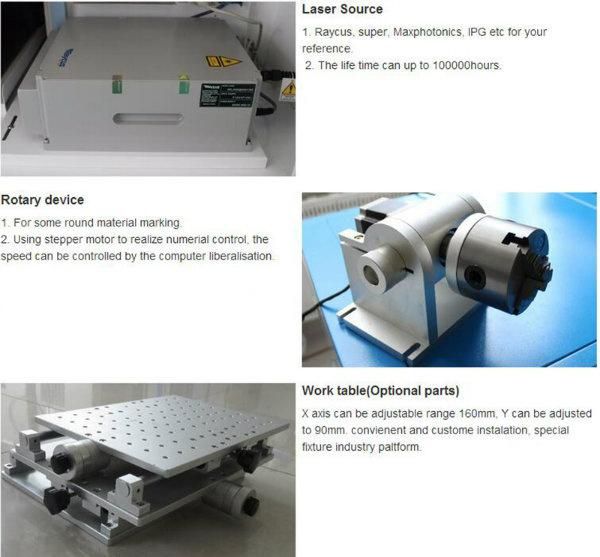

Machine Parts--fiber laser marking machine

Certificate

Clients Pictures
Guarantee & After sales service:

1. 18 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time

2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.

3. Free training course at our plant

4. We will provide the machine consuming parts with factory price when you need replacement.

5. 24 hours online service each day, free technical support.

FAQ

 1. How can I confirm if your fiber laser marking machine my needs?
1) You can send us some samples so that we can make a demo video for you.
2) Please contact our sales engineers for confirmaton via sending an inquiry.

2. What's your after-sales service?
1) Warranty two year
2) Engineers available service machinery overseas
3) Full operator training

How to distinguish laser tubes with different powers and applications?
1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w
