• Model NO.：DW1610A
• Laser Technology：Laser Flame Cutting
• Name：Auto Feeding Laser Cutting Machine
• Certification：Ce, ISO, FDA
• Laser Power：80W, 100W, 150W, 260W
• Cutting Thickness：0-35mm
• Cutting Area：1600*1000mm,1400*1000mm or Customized
• Resetting Positioning Accuracy：0.01mm
• Motor：Servo or Stepper as Your Option
• Control Configuration：Redcam
• Guide Rail：Taiwin Hiwin Square Rail
• Table：Honey Nest or Blade Table
• Transport Package：Plywood Box, Free From Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• HS Code：8456100009
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW1610A Laser Technology Laser Flame Cutting Name Auto Feeding Laser Cutting Machine Certification Ce, ISO, FDA Laser Power 80W, 100W, 150W, 260W Cutting Thickness 0-35mm Cutting Area 1600*1000mm/1400*1000mm or Customized Resetting Positioning Accuracy 0.01mm Motor Servo or Stepper as Your Option Control Configuration Redcam Guide Rail Taiwin Hiwin Square Rail Table Honey Nest or Blade Table Transport Package Plywood Box, Free From Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8456100009 Production Capacity 500 Sets Every Year

Product Description

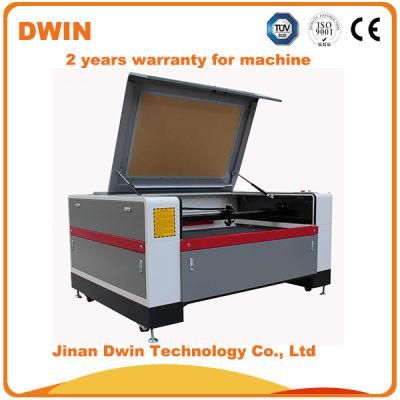

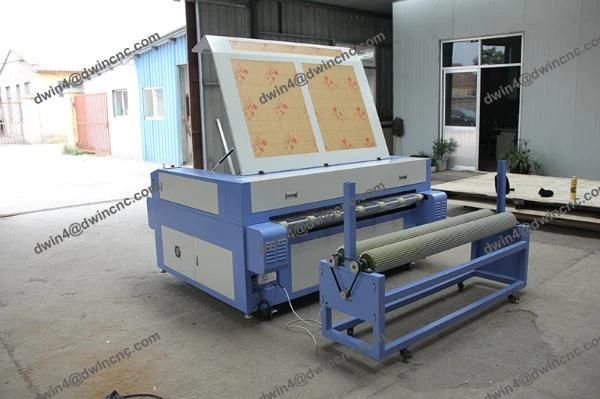

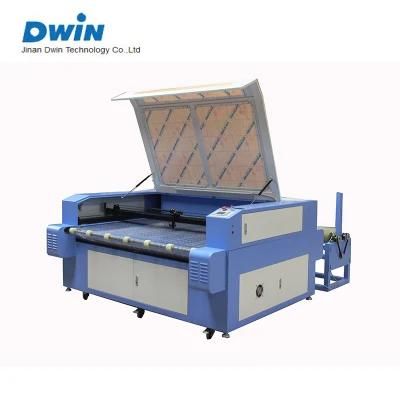

CO2 Laser Cutting and Engraving Machine with Auto-Feeding System


Characteristics:

1.Fast curvilinear cutting function:It can cut via any curve fast continuous cutting, the laser heads moving in beautiful arc just evoke your imagination of top grade racing car.
2.To fully support design software, such as CAD, Coreldraw, Photoshop, friendly man-machine interface, live close to the industry needs.
3.Multi-document function:SC series equipment can store as many as 256 working documents, in the case of without the computer, the user can select files in the engraving machine, the mass production of 256 different products.

Machine Parameter

No.	Description	Machine parameter
1.	Machine model	DW1610
2.	Laser medium	Co2 gas
3.	Working area	1600*1000mm
4.	Working table	B type mesh belt
5.	Laser power	80W/100W/130W(optional)
6.	Power Supply	220V/50Hz/60Hz
7.	Min line width	≤0.15mm
8.	Positon accuracy	±0.05mm
9.	Repetition accuracy	0.02mm
10.	Cutting speed	700mm/s
11.	Guide rail	Hiwin from Taiwan
12.	Transmission method	Belt Transmisson
13.	Drive system	Leadshine driving system and stepper motor
14.	Cooling system	Water-cooling
15.	Control system	DSP
16.	Control software	Coreldraw, Photoshop, AutoCAD, etc
17.	Graphic format support	PLT, DXF, BMP, JPG ,AI ,ect
18.	Working environment	0-45ºC
19.	Operating Humidity	5-95%
20.	Machine warranty	2 years

Applicable materials

Genuine leather, artificial leather, soft leather, decorative leather, packaging leather.Etc all kinds of leather, leather materials, pure cotton, real silk, all kinds of chemical fiber, cowboy, and so on.All kinds of textile materials or non woven material.
Typical case:Clothing.Footwear, toy, luggage, wild camp, car seat cut, such as the car chair affixed cloth embroidery, special shaped trademarks, airbags, such as laser cutting, garment leather carve patterns or designs woodwork hollow cut.
